| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
If you wish to enquire about this product please contact us on
0800 488 0000
| Part No: | MT-UN3100 |
| Manufacturer No: | UN3100 |
| Delivery: | In Stock: 7-10 Days |
 |

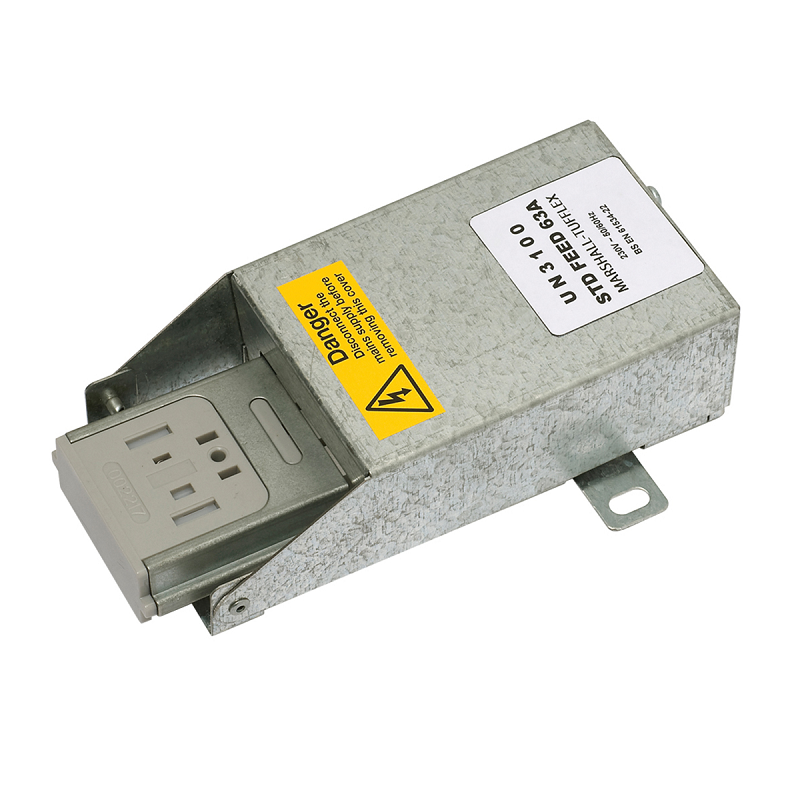

FEED UNIT STD
Standard Feed Unit – Female – for use with Powertrack system.
• End cap keyed for Grey Track
• Press fit clip from power track for excellent earth bond
• Requires Tool to remove from track
• Single 20mm knockout for power cable
• Twin earth (to ground) terminals
| Code | UN3100 |
| Pack | 1 |
| Version | Standard |
| Variation | Feed Unit |
| Colour | Silver |
| Recycled PVC-U Content | N/A |
| Dimensions | 81mm wide x 162mm long x 44mm high |
| Materials | Galvanised steel case, Copper bars, Flame retardant PC and PBT mouldings |
| Compliance / Standards | CE & UKCA Marked Low Voltage Directive 2014/35/EU The Electrical Equipment (Safety) Regulations 2016 BS 7671:2018 BS EN 61534-1:2011+A1:2014 BS EN 61534-22:2014 All Plastics are UL94-V0 rated and pass IEC 60695-2 glow wire test at 850°C |
| Rated voltage (Un) | 230 volts |
| Operating voltage range | 50 – 253V |
| Rated load current | 63A Amps |
Full specification and details can be found in the Product Datasheet PDF file
