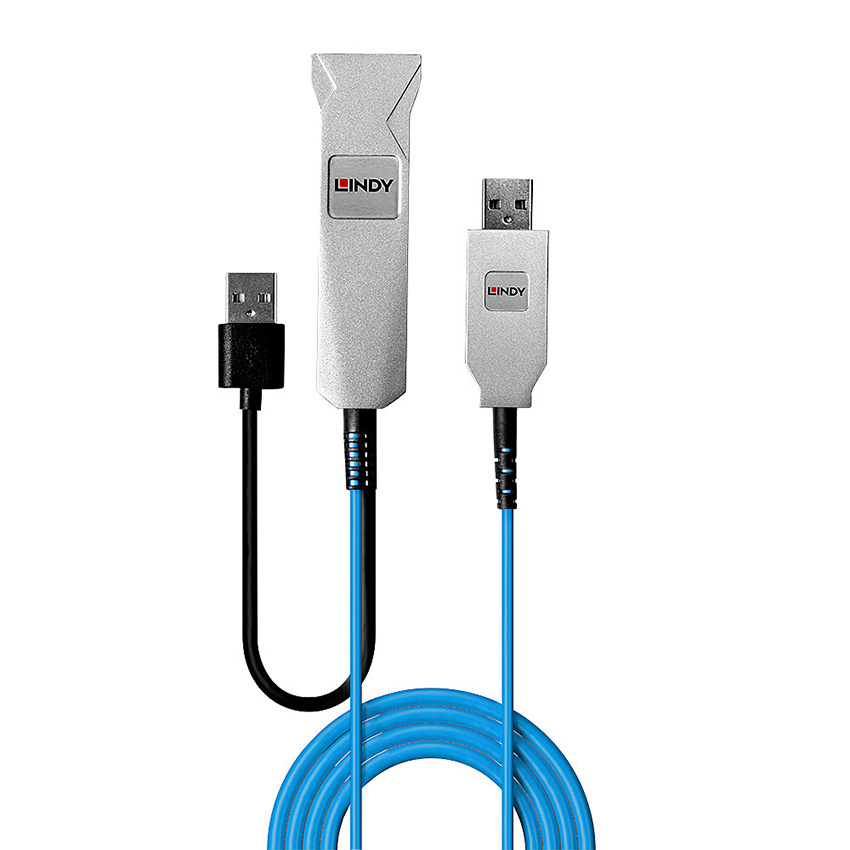

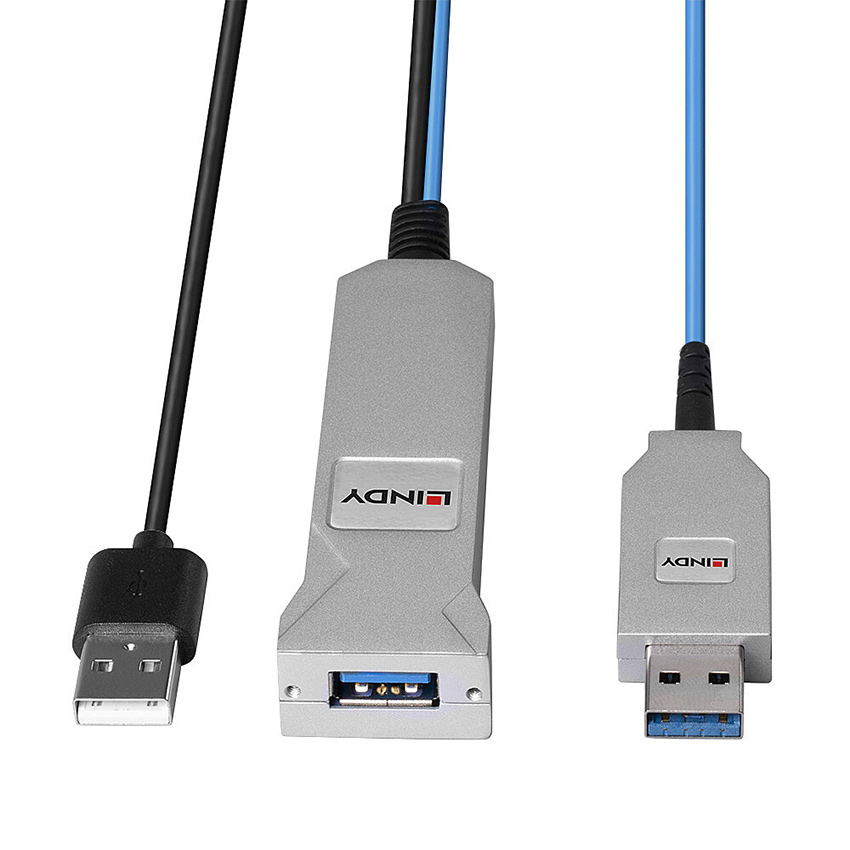

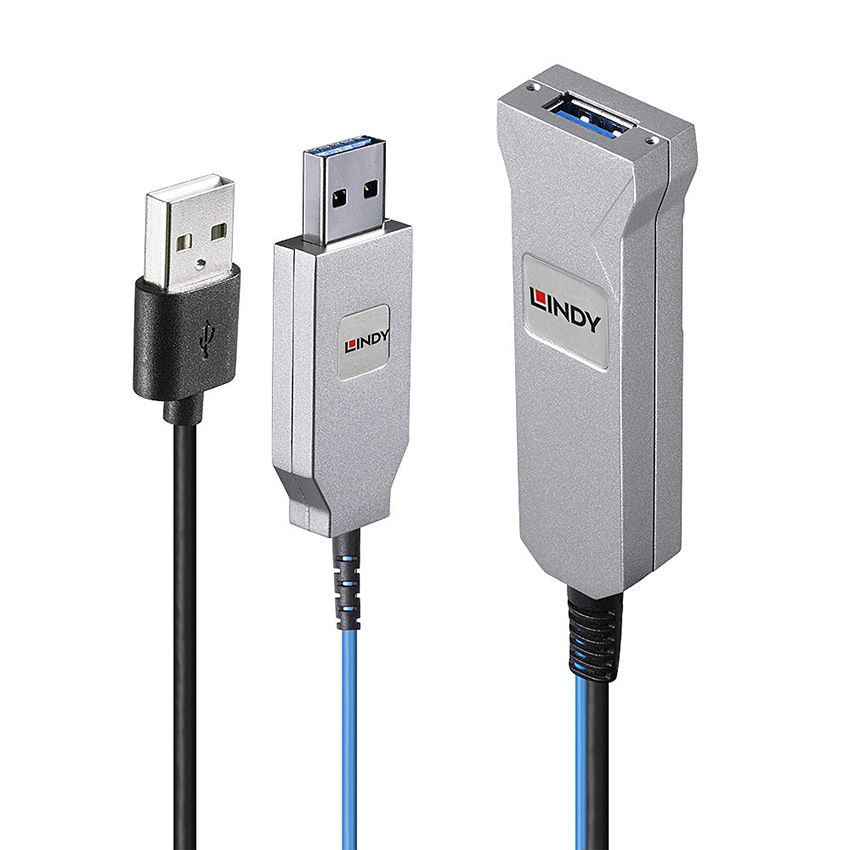

Lindy 43345 30m Fibre Optic USB 3.0 Cable
30m Fibre Optic USB 3.0 Cable - 30m USB 3.0 Extension via Fibre Optics*
Key Features:
- 30m Active Optical (AOC) USB 3.0 Cable, backwards compatible with USB 2.0/1.1
- Supports transfer rates up to 5Gbps, backwards compatible with USB 2.0 devices
- Cascadeable up to 3 times - also in combination with the 100m version No. 43346
- Low RFI/EMI for sensitive environments
- 2 year warranty
The Lindy Fibre Optic USB 3.0 Cable supports far longer distances than standard copper cables whilst retaining SuperSpeed transfer rates of up to 5Gbps. Up to 3 cables can be connected in series up to a length of 90m. In addition, a combination with the 100m version No. 43346 is possible.
A lighter and more flexible construction makes this cable simple to install with cable trays and through conduits, whilst low RFI/EMI ensures that the cable can be installed in the most sensitive of environments. It supports isochronous data transfer, improving the timely delivery of data packets, which makes it ideal for synchronizing video and audio streams.
This device is fully compatible with, and can be used to extend signals from, 4K USB 3.1/3.0 webcams and video conferencing systems.
For added convenience the Fibre Optic USB 3.0 cable also features a USB Type A cable for power supply via the USB 3.0 bus with 5V and 900mA.
Please note: this product is also backwards compatible with USB 2.0 peripheral devices.
Information about USB 3.0, 3.1 & 3.2
- USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
- USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
- USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications:
- Connector A: USB Type A Male
- Connector B: USB Type A Female
- Power: USB Type A Male
- Housing Material: Zinc Alloy
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Nickel + Gold
- Dimensions (approx.) WxDxH:
- USB A Female: 82 x 26 x 14.5mm (3.23 x 1.02 x 0.57in)
- USB A Male: 41.6 x 19.2 x 8mm (1.64 x 0.76 x 0.31in)
- Length: 30m (98.42ft)
- Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
- Colour: Blue
- Cable Type: Round
- Jacket Diameter: 3mm (0.12in)
- Jacket Material: TPU
- Supported Bandwidth: 5Gbps
- Nominal Attenuation: 4dBm/km
- Minimum Bend Radius: 30mm (1.18in)
- Maximum Tensile Load: 0.3GN/m²
- Operating Temperature: 0°C - 70°C (32°F - 158°F)
- Storage Temperature: -20°C - 85°C (-4°F - 185°F)
- Transmission Medium: Optical Fiber 62.5/125/250 Multimode Fiber
- Transmission Technology: 850nm Laser Optical
- Packaging Type: Carton Box
- Packaging Dimensions: 240 x 240 x 65mm (9.45 x 9.45 x 2.56in)
- Net Weight: 0.3kg (0.66lb)
- Gross Weight: 0.4kg (0.88lb)
- Warranty (Years): 2
- Certificated: CE, FCC, RoHS & REACH, CP65
*This product is also available in 100m length - CE part number LIN43346 - 100m (328.08ft)
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
