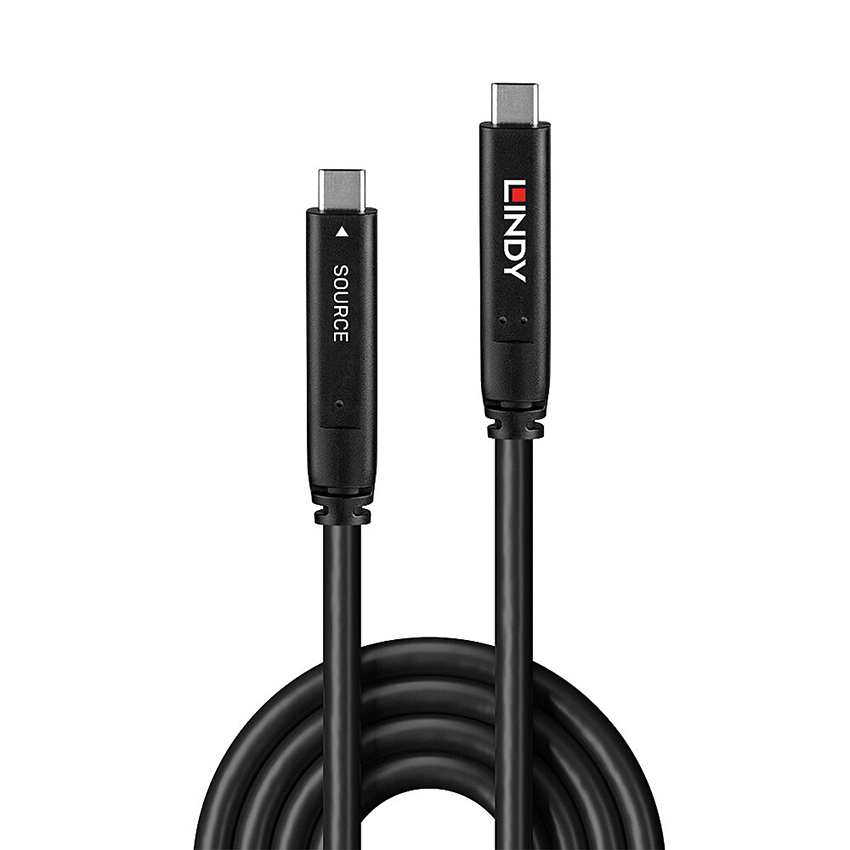

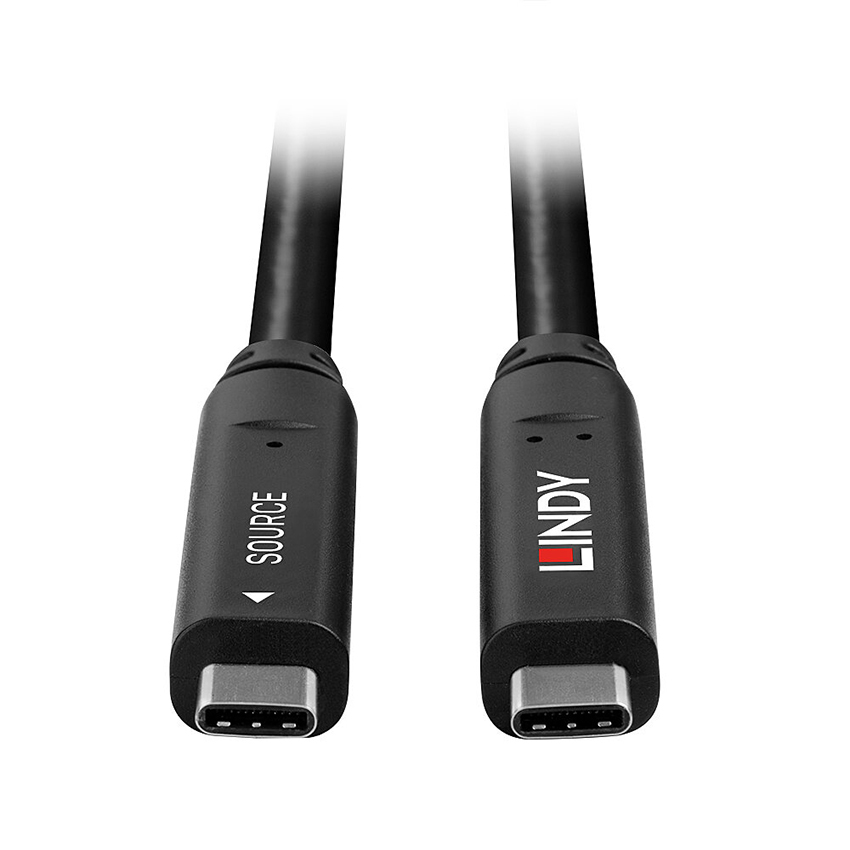

Lindy 43333 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable

10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable - 10m Extension of USB 5Gbps, 4K30Hz Video and 60W Power Delivery

Key Features:

• 10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
• Data transfer rates up to 5Gbps
• Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
• Supports Power Delivery up to 60W (20V 3A)
• 2 year warranty

The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

Please Note:

• USB devices which only support DP signals over 4 lanes might not be compatible.
• Displays must have set USB settings to USB 3.0 in order to receive video via Type C.

Information about USB 3.0, 3.1 & 3.2

• USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
• USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
• USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications:

• Connector A: USB Type C Male
• Connector B: USB Type C Male
• Power: PD 3A/20V (60W)
• Housing Material: Plastic
• Connector Plating: Stainless Steel + Solder Nickel 50u" min.
• Pin Construction: Copper Alloy + Mating area Au
• Pin Plating: Mating area: 30u" Au min.
• Dimensions (approx.) WxDxH: 55 x 9 x 12.35mm (2.17 x 0.35 x 0.49in)
• Cable Length: 10m (32.81t)
• Standard: USB 3.2 / 3.1 Gen 1
• Colour: Black
• Cable Type: Round
• Jacket Diameter: 6.5mm (0.26in)
• Jacket Material: PVC
• Conductor Gauge: 21AWG
• Shielding: SUS304
• Supported Bandwidth: 5Gbps (USB 3.2 Gen 1), 16.2Gbps (DP 1.4, 2 lanes)
• Maximum Resolution: 4K 3840 x 2160 @ 30Hz
• Nominal Attenuation: ?10dB/km@850nm,? 8dB/km@1300nm
• Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
• Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
• Operating Temperature: -10°C to 70°C (14°F - 158°F)
• Storage Temperature: -40°C to 85°C (-40°F - 185°F)
• Transmission Medium: Optical Fiber 50/125 Multimode Fiber
• Transmission Technology: 850nm Laser Optical
• Packaging Type: Carton Box
• Packaging Dimensions: 240 x 240 x 65mm (9.45 x 9.45 x 2.56in)
• Net Weight: 0.76kg (1.68lb)
• Gross Weight: 0.9kg (1.98lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Package contents:

• 10m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable
• Lindy manual

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
