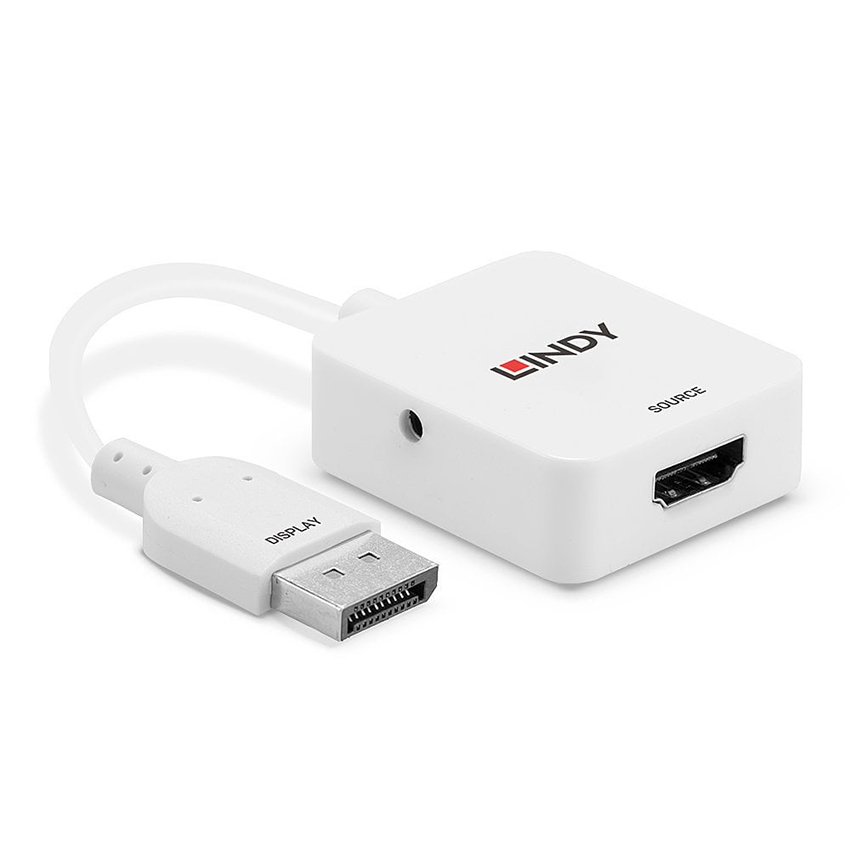

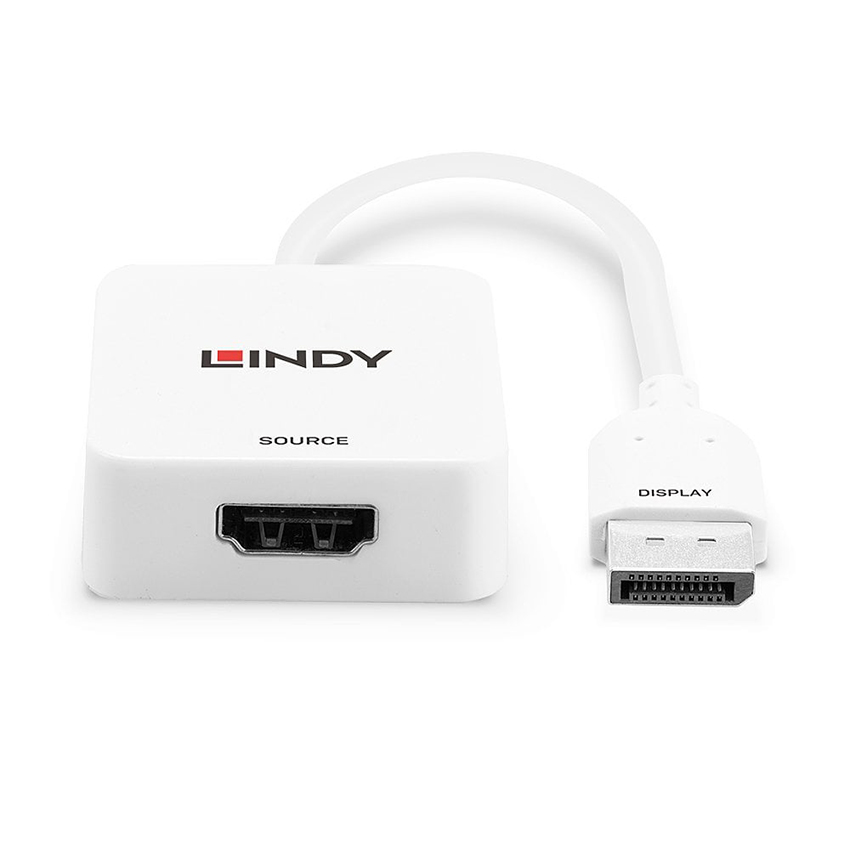

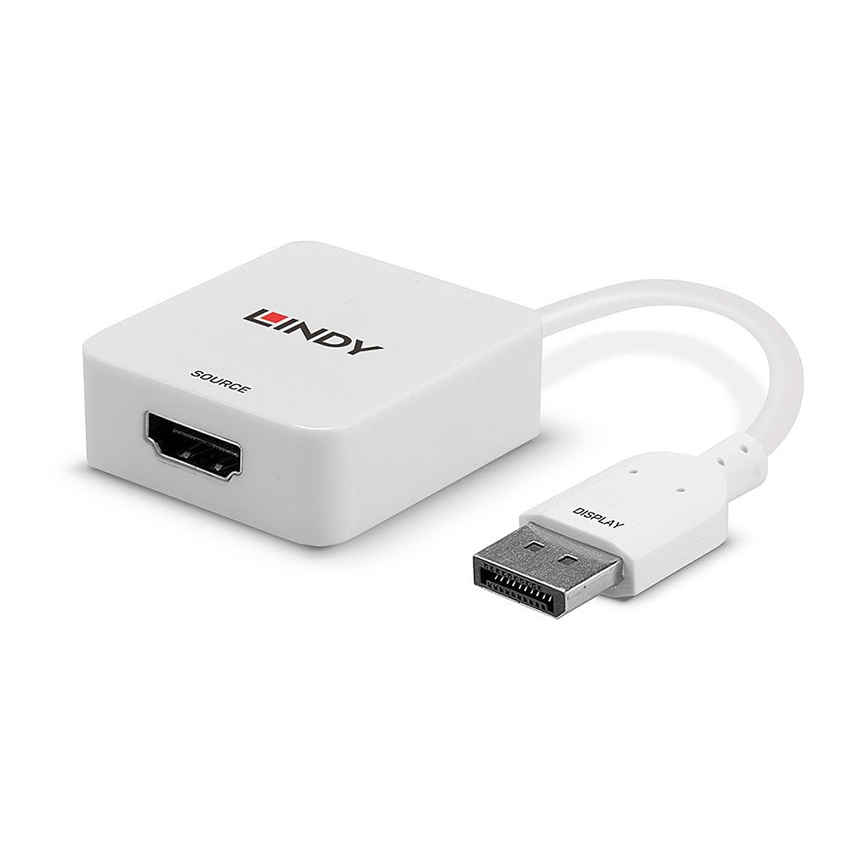

Lindy 38303 HDMI 18G to DisplayPort 1.2 Converter

HDMI 18G to DisplayPort 1.2 Converter

Key Features:

• Converts an HDMI input into a DisplayPort signal
• Supports resolutions up to 3840x2160@60Hz
• Supports 7.1 channel surround audio
• Quick and simple Plug & Play installation
• 2-year warranty

A converter allows devices which use different interfaces e.g. HDMI and DisplayPort to connect to one another by converting one signal to the other.

The Lindy HDMI 18G to DisplayPort 1.2 Converter allows the connection of HDMI source devices, such as a PC, Blu-ray player or media player to DisplayPort monitors digital signage and LFDs (Large Format Displays). Supporting resolutions up to 3840x2160@60Hz 4:4:4 8bit or 2560x1440@120Hz, this converter ensures superior clarity content within innovative workspaces, engaging collaboration environments and educational setups. Immersive multi-channel audio is supported up to 7.1CH to compliment the video on screen.

The converter can also be used to add another display to extend the available desktop workspace and increase productivity. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug & Play installation.

Specifications:

• AV Interface: HDMI to DisplayPort
• Interface Standard: HDMI 2.0 / DisplayPort 1.2
• Supported Bandwidth: 21.6Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8bit SDR
• Maximum Output Resolution: 3840x2160@60Hz 4:4:4 8bit SDR
• Chipset: LT6711A
• HDCP Support: HDCP 2.2
• Supported Audio: Supports 7.1 LPCM digital audio up to 192kHz 24bit
• Special Features: 3.5/1.35mm DC power connector for optional 5V 1A PSU
• Input: HDMI Type A Female
• Output: DisplayPort Male
• Dimensions (approx.) WxDxH:
• 40x45x15mm (1.57x1.77x0.59in)
• 20.5x16.5x3.5mm (0.81x0.65x0.14in) / DP
• Cable Length: 95mm (3.74in)
• Housing Material: ABS
• Jacket Material: ABS
• Net Weight: 0.025kg (0.06lb)
• Operating Temperature: -20°C - 85°C (-4°F - 185°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• Humidity: 20 - 95% RH (non-condensing)
• Colour: White
• Packaging Type: Polybag
• Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
• Gross Weight: 0.030kg (0.07lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Package Contents:

• HDMI 18G to DisplayPort 1.2 Converter

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
