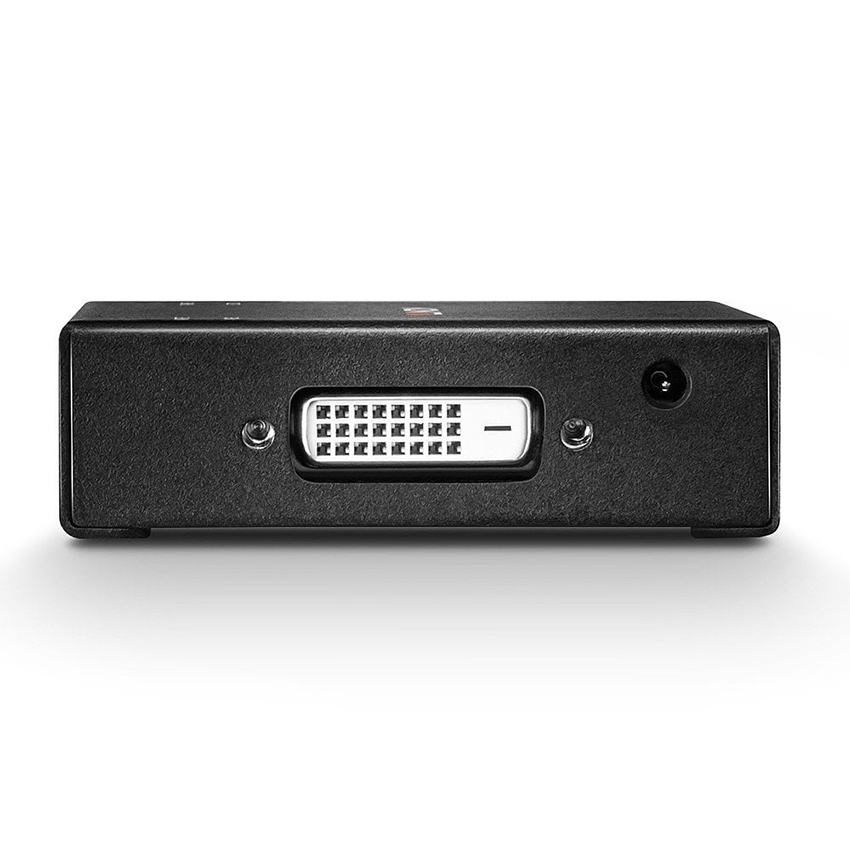

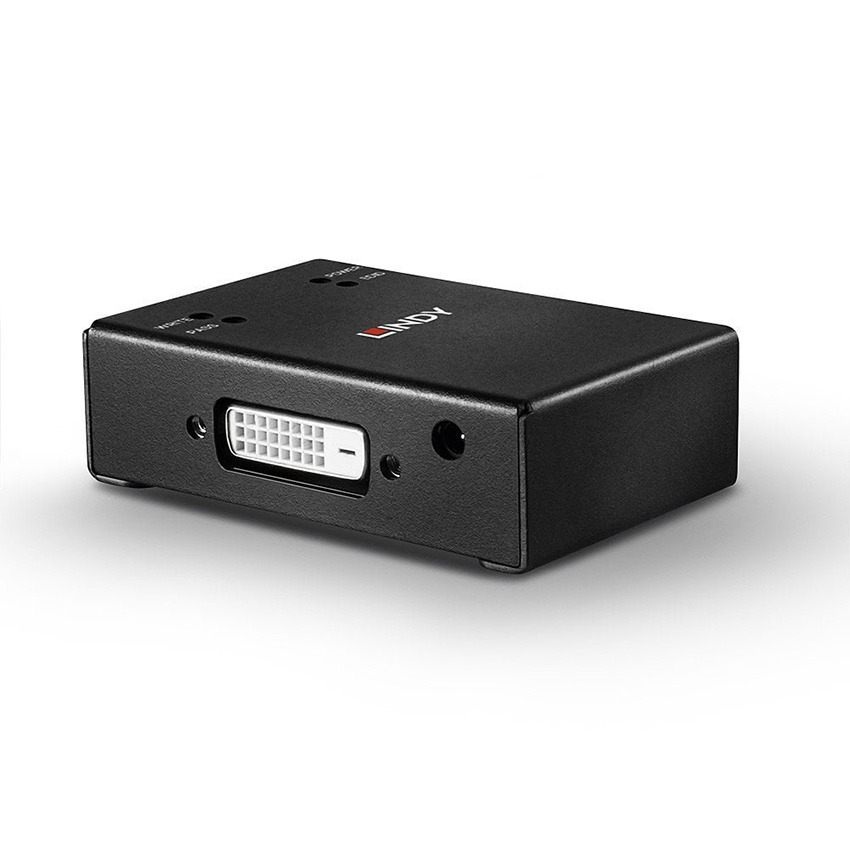

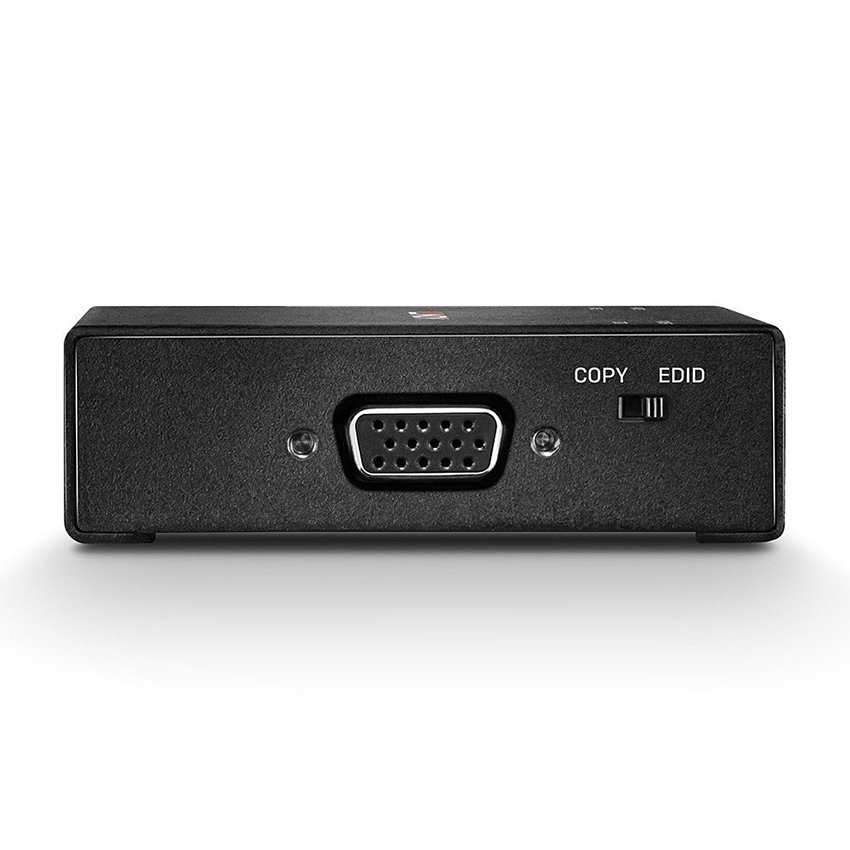

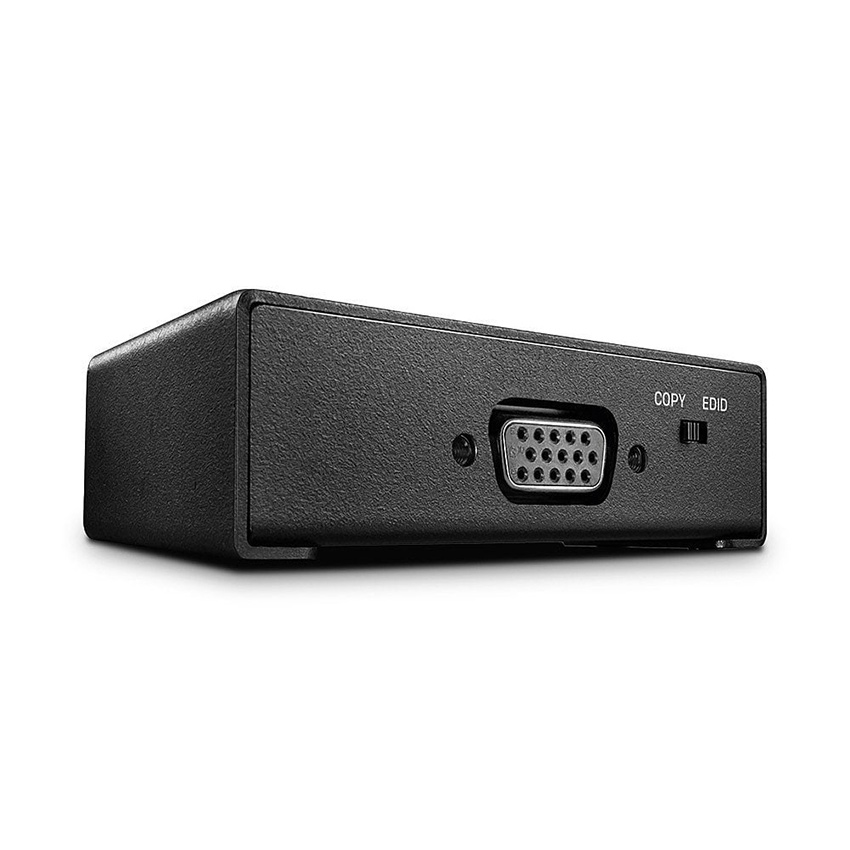

Lindy 32120 Lindy HDMI / VGA / DVI EDID Recorder

HDMI / VGA / DVI EDID Recorder

Key Features:

• Stores EDID data to ensure maximum compatibility between a source and display
• Clones and stores EDID / DDC information from a HDMI, VGA or DVI display
• Overwrites pre-set EDID of emulators with stored EDID for time saving compatibility
• For use with HDMI (32104), VGA (32121) and DVI (32122) EDID Emulators
• 2 Year Warranty

The Lindy EDID Recorder is a useful solution to solving a variety of EDID compatibility issues that may occur when connecting mixed displays or using splitters, extenders or switches.

his recorder intelligently copies a connected HDMI , VGA or DVI displays EDID and stores it, to then be repeatedly used with Lindy's range of EDID emulators (32104, 32121 and 32122), overwriting the emulator's pre-set EDID to ensure seamless compatibility within the installation. The EDID recorder's simple switch for copying EDID information allows for hassle free use for both professional and first-time users.

This recorder is also backwards compatible with previous Lindy EDID emulators 32101 and 32102.

Specifications:

• AV Interface: HDMI / VGA / DVI
• Interface Standard: HDMI 2.0
• Supported Bandwidth:
• HDMI: 18Gbps
• VGA: 4.95Gbps
• DVI: 9.9Gbps
• Maximum Resolution:
• HDMI: 3840x2160@60Hz 4:4:4 8bit
• VGA: 1920x1200@60Hz
• DVI: 2560x1600@60Hz
• Input: HDMI Type A (Female), VGA (Female), DVI-D (Female)
• Power: 3.5/1.35mm
• Dimensions (approx.) WxDxH: 48x22x73mm (1.89x0.87x2.87in)
• Housing Material: Metal
• Net Weight: 0.234kg (0.52lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black
• Packaging Type: Carton Box
• Packaging Dimensions: 185x55x140mm (7.28x2.17x5.51in)
• Gross Weight: 0.313kg (0.69lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents:

• EDID Recorder
• Multi-country PSU (UK, EU, US & AUS)
• Lindy Manual

EDID - Extended Display Identification Data.
It is a way for a video source to discover the capabilities of the sink (display device) it is connected to. EDID information resides in the sink and is made available through the connection to a source device via HDMI, DP, DVI etc. When a sink is connected to a source it receives power for its EDID circuit from the source.
