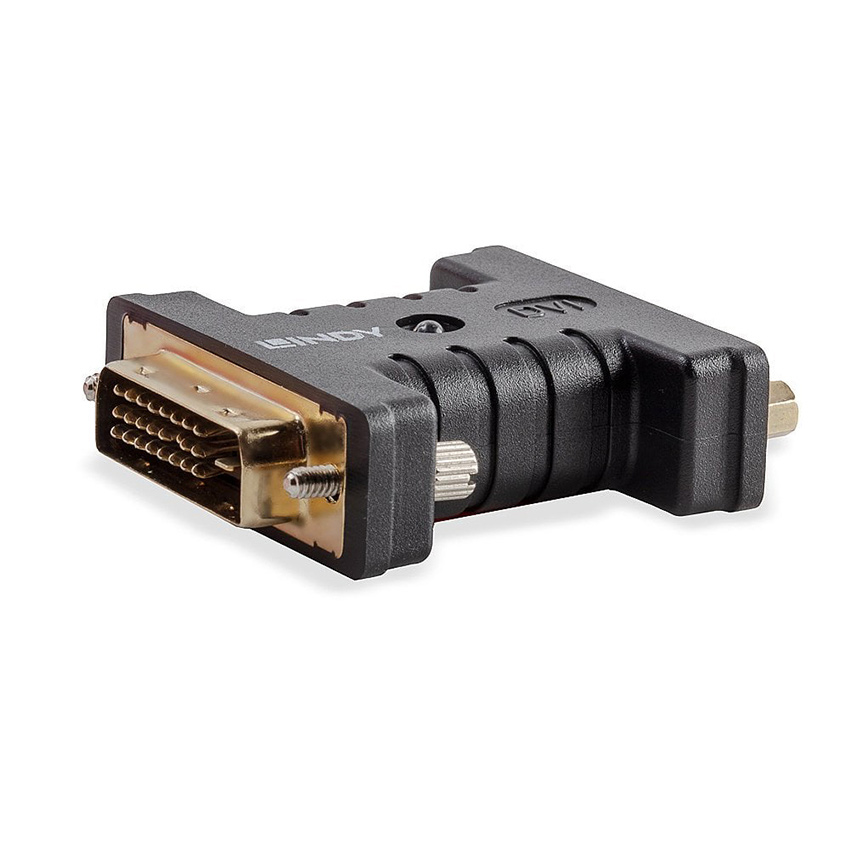

Lindy 32117 DVI EDID Emulator with Cloning

DVI EDID Emulator with Cloning

Key Features:

• Continuously emulates DVI EDID Information
• Supports resolutions up to 1920x1200@60Hz
• Cloning function allows for the use of copied EDID's or various pre-set EDID data.
• Powered via DVI source interface.
• 2-year warranty

The Lindy DVI EDID Emulator with Cloning is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV / KVM Extenders, Switches & Splitters. It can also be used in place of a monitor to keep the PC or Server awake for remote access over IP.

Problems can occur when using various AV devices such as KVM Switches, Splitters & Extenders amongst others. These devices are often unable to pass the EDID information back to the source device. This emulator allows the user to clone the EDID information from a display which can be provided to the source prior to the installation of any intermediary devices.

This Emulator also includes pre-set EDID data which includes the most commonly used DVI resolutions and refresh rate combinations, which allows for simple installation as it can be used with many displays quickly without the need to clone EDID information.

Specifications:

• AV Interface: DVI
• Interface Standard: 1
• Supported Bandwidth: 3.96Gbps
• Maximum Resolution: 1920x1200@60Hz
• Video EDID:
• 720x400@70Hz
• 640x480@60/67/72/75Hz
• 800x600@56/60/72/75Hz
• 832x624@75Hz
• 1024x768@60/70/75Hz
• 1152x864@75Hz
• 1152x870@75Hz
• 1440x900@60Hz
• 1280x960@60Hz
• 1280x1024@60/75Hz
• 1680x1050@60Hz
• 1920x1080@60Hz
• 1600x1200@60Hz
• 1920x1200@60Hz
• Special Features: EDID Cloning

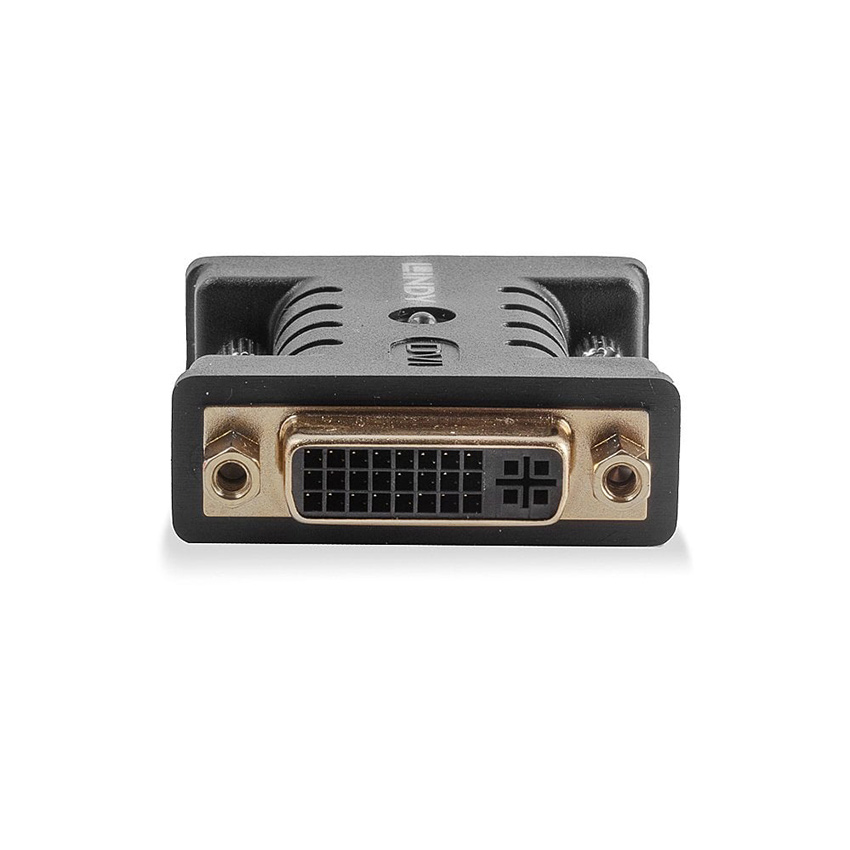

• Input: DVI

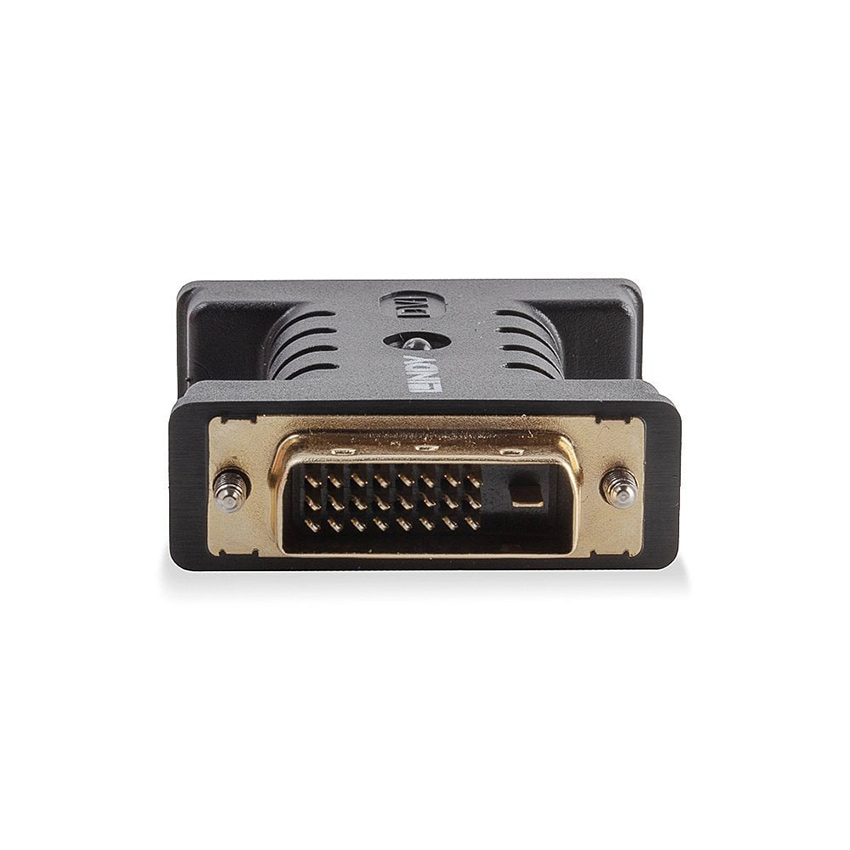

• Output: DVI
• Dimensions (approx.) WxDxH: 55x43x15mm (2.17x1.69x0.59in)
• Housing Material: PVC
• Net Weight: 0.035kg (0.08lb)
• Operating Temperature: 0°C - 85°C (32°F - 185°F)
• Storage Temperature: -40°C - 85°C (-40°F - 185°F)
• Humidity: 5-95%
• Colour: Black
• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.0354kg (0.08lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents:

• DVI EDID Emulator
• Lindy Manual

EDID - Extended Display Identification Data.
It is a way for a video source to discover the capabilities of the sink (display device) it is connected to. EDID information resides in the sink and is made available through the connection to a source device via HDMI, DP, DVI etc. When a sink is connected to a source it receives power for its EDID circuit from the source.
