HPE P81782-425 ProLiant DL360 Server

Gen11 4LFF 4510(12c) 2x800W

by HPE
See more product details
Part No:HPP81782-425
Manufacturer No:P81782-425
Delivery: In Stock: 5-7 Days
Feefo logo

/assets/images/gallery/large/1754039125HPP81782-425_1.jpg

HPE P81782-425 ProLiant DL360 Server
More Related Items
Click to change options
Length:
Fibre Size:
Apply
£3.61 Ex VAT
Qty:
Click to change options
Colour:
Door:
Flat Pack:
Accessory Kit:
Apply
£668.75 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top

    The HPE ProLiant DL360 Gen11 server configured with a single Intel Xeon Silver 4510 processor offers a balanced solution for scalable, compute-efficient workloads. This 1U rack server features a 12-core, 2.4 GHz CPU with 30 MB cache, optimized for performance and energy efficiency with a configurable TDP-down of 4.5W. Equipped with 64 GB of high-speed DDR5 ECC memory at 5600 MHz (2 x 32 GB), it supports critical data integrity and rapid processing for virtualized environments and demanding applications.


    Key Features:
    • Single Intel Xeon Silver 4510 processor, 12 cores at 2.4 GHz, 30 MB cache
    • 64 GB DDR5 ECC memory, 5600 MHz, configured as 2 x 32 GB DIMMs
    • 1.92 TB total storage using 2 x 960 GB SATA HDDs, hot-pluggable, RAID support included
    • Maximum storage capacity up to 20 TB supported
    • Broadcom BCM5719 Gigabit Ethernet controller with 4 RJ-45 Ethernet ports
    • On-board graphics and VGA port for local display
    • Remote management via HPE iLO 6 ASIC and Trusted Platform Module (TPM) 2.0 security
    • 800W power supply with support for 2 redundant power supplies (1 installed)
    • Rack-mounted 1U chassis, grey color, dimensions: 600mm (W) x 990mm (D) x 241mm (H), weighing 32.3 kg
    • Compatible with major enterprise operating systems including Windows Server, VMware ESXi, and various Linux distributions
    • Energy Star certified for sustainability and efficient power use

    Compute and Memory

    The Intel Xeon Silver 4510 processor delivers 12 cores at 2.4 GHz, supported by 64 GB of DDR5 ECC memory running at 5600 MHz. This combination ensures reliable performance with advanced error correction for mission-critical workloads.


    Storage and Expandability

    Featuring two hot-pluggable 960 GB SATA HDDs with RAID support, the system provides 1.92 TB of fast, secure storage. The platform supports up to 20 TB for scaling data capacity as needed.


    Networking and Connectivity

    Equipped with a Broadcom BCM5719 Gigabit Ethernet controller and four RJ-45 LAN ports, the server offers robust network connectivity. Additional ports include three USB 3.2 Gen 1 Type-A and one VGA for local management.


    Management and Security

    Remote administration is simplified with HPE’s iLO 6 ASIC, providing secure server management. Hardware-level security is enhanced with TPM 2.0 for trusted platform assurance.


    Power and Cooling

    The server is powered by an 800W power supply with support for two redundant units, ensuring uptime and reliability. It operates efficiently within a temperature range of 10-35°C and humidity up to 90%, maintaining stable performance in typical data center environments.


    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

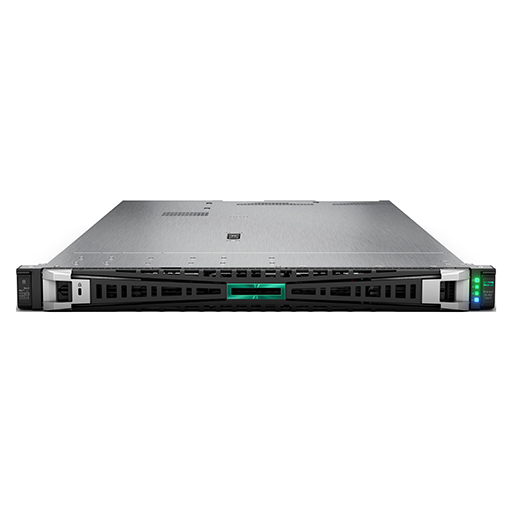

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

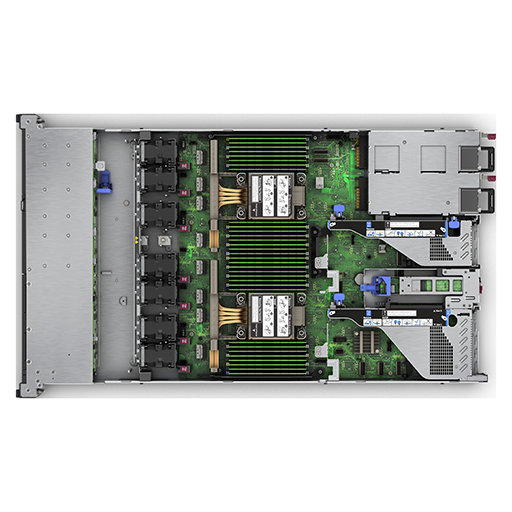

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder

    The HPE ProLiant DL360 Gen11 server configured with a single Intel Xeon Silver 4510 processor offers a balanced solution for scalable, compute-efficient workloads. This 1U rack server features a 12-core, 2.4 GHz CPU with 30 MB cache, optimized for performance and energy efficiency with a configurable TDP-down of 4.5W. Equipped with 64 GB of high-speed DDR5 ECC memory at 5600 MHz (2 x 32 GB), it supports critical data integrity and rapid processing for virtualized environments and demanding applications.


    Key Features:
    • Single Intel Xeon Silver 4510 processor, 12 cores at 2.4 GHz, 30 MB cache
    • 64 GB DDR5 ECC memory, 5600 MHz, configured as 2 x 32 GB DIMMs
    • 1.92 TB total storage using 2 x 960 GB SATA HDDs, hot-pluggable, RAID support included
    • Maximum storage capacity up to 20 TB supported
    • Broadcom BCM5719 Gigabit Ethernet controller with 4 RJ-45 Ethernet ports
    • On-board graphics and VGA port for local display
    • Remote management via HPE iLO 6 ASIC and Trusted Platform Module (TPM) 2.0 security
    • 800W power supply with support for 2 redundant power supplies (1 installed)
    • Rack-mounted 1U chassis, grey color, dimensions: 600mm (W) x 990mm (D) x 241mm (H), weighing 32.3 kg
    • Compatible with major enterprise operating systems including Windows Server, VMware ESXi, and various Linux distributions
    • Energy Star certified for sustainability and efficient power use

    Compute and Memory

    The Intel Xeon Silver 4510 processor delivers 12 cores at 2.4 GHz, supported by 64 GB of DDR5 ECC memory running at 5600 MHz. This combination ensures reliable performance with advanced error correction for mission-critical workloads.


    Storage and Expandability

    Featuring two hot-pluggable 960 GB SATA HDDs with RAID support, the system provides 1.92 TB of fast, secure storage. The platform supports up to 20 TB for scaling data capacity as needed.


    Networking and Connectivity

    Equipped with a Broadcom BCM5719 Gigabit Ethernet controller and four RJ-45 LAN ports, the server offers robust network connectivity. Additional ports include three USB 3.2 Gen 1 Type-A and one VGA for local management.


    Management and Security

    Remote administration is simplified with HPE’s iLO 6 ASIC, providing secure server management. Hardware-level security is enhanced with TPM 2.0 for trusted platform assurance.


    Power and Cooling

    The server is powered by an 800W power supply with support for two redundant units, ensuring uptime and reliability. It operates efficiently within a temperature range of 10-35°C and humidity up to 90%, maintaining stable performance in typical data center environments.


    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder
