In Stock: Next Day
£6822.44
£8186.93 Inc VAT
Earn 3411 Data Points when purchasing this product. More Info

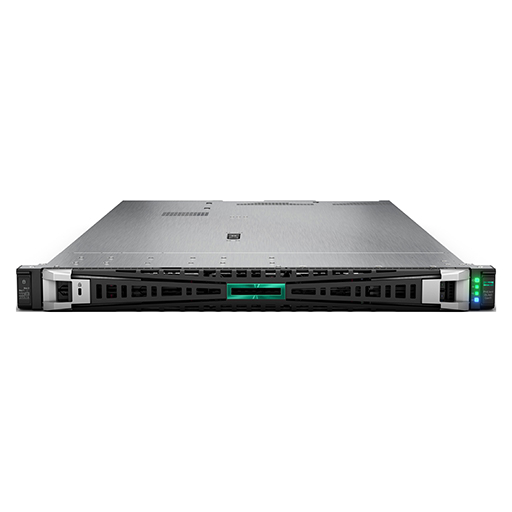

HPE P77247-425 ProLiant DL360 EU Server

Gen11 4510 2.4GHz 2x1000W PS

by HPE
See more product details
Part No:HPP77247-425
Manufacturer No:P77247-425
Delivery: In Stock: Next Day
Feefo logo

/assets/images/gallery/large/1753971425HPP77247-425_1.jpg

HPE P77247-425 ProLiant DL360 EU Server
More Related Items
Click to change options
Colour:
Apply
£90.83 Ex VAT
Qty:
Click to change options
Colour:
Apply
£140.00 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top

    Purpose-built for virtualization, container orchestration, and compute-intensive workloads, the HPE ProLiant DL360 Gen11 featuring the Intel® Xeon® Silver 4510 offers a compact, powerful solution in a 1U form factor. With a 12-core, 2.4 GHz processor (boosting up to 4.1 GHz), 64 GB DDR5 memory, and dual 2.4 TB SAS drives, this server blends performance with scalable infrastructure for mid-tier data operations. Ideal for organizations needing consistent performance, reliable RAID storage, and seamless network connectivity, this configuration delivers compute strength without overprovisioning.


    Key Features
    • 1 x Intel® Xeon® Silver 4510 processor with 12 cores and 30 MB cache
    • Base frequency of 2.4 GHz with turbo boost up to 4.1 GHz
    • 64 GB DDR5 memory (2 x 32 GB DIMMs), expandable to 4 TB
    • Memory speed of 5600 MHz across 16 DIMM slots
    • 2 x 2.4 TB SAS hard drives with RAID support for data protection
    • Maximum storage capacity up to 153.6 TB
    • Broadcom BCM5719 Gigabit Ethernet with dual RJ-45 ports
    • 3 x USB 3.2 Gen 1 ports and 1 VGA port for flexible connectivity
    • Trusted Platform Module 2.0 for secure cryptographic operations
    • Dual redundant 2000W power supplies (1 installed)
    • Compact 1U rack chassis (Height: 42.9 mm, Width: 753.1 mm, Depth: 434.6 mm)

    Mid-Tier Compute Power in a Compact Form

    Driven by the Intel® Xeon® Silver 4510 processor, this server configuration offers 12 physical cores and a 30 MB cache—balancing compute density and power efficiency for mid-range workloads. With boost speeds up to 4.1 GHz, it handles concurrent tasks in virtualized environments effectively.


    Efficient DDR5 Memory Scalability

    Configured with 64 GB of high-speed DDR5-SDRAM (2 x 32 GB), this server supports a total capacity of up to 4 TB across 16 DIMM slots. Running at 5600 MHz, it ensures fast access to data for memory-intensive applications, while offering room to scale for future demands.


    Reliable SAS Storage with Room to Expand

    Equipped with two 2.4 TB SAS drives, the DL360 Gen11 delivers enterprise-grade storage with built-in RAID support for enhanced data integrity. The chassis supports a total storage capacity of up to 153.6 TB, making it suitable for structured data workloads and virtual desktop infrastructures (VDIs).


    Enterprise Connectivity and Control

    With integrated Broadcom BCM5719 dual-port Gigabit Ethernet and three USB 3.2 Gen 1 ports, the DL360 Gen11 provides reliable, high-speed connectivity. A VGA port supports legacy monitoring, and TPM 2.0 ensures secure credential storage and cryptographic functions.


    Redundancy and Compact Rack Optimization

    Designed in a space-saving 1U rack form factor, this unit includes one installed 2000W power supply with redundancy support. It delivers consistent uptime in critical deployments while optimizing energy use within dense server environments.

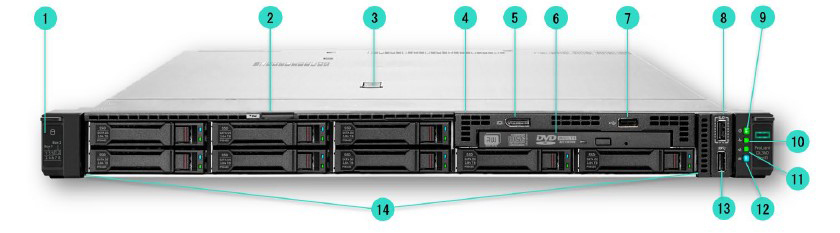

    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

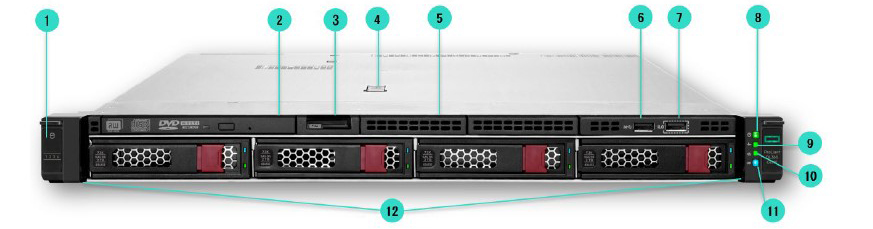

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

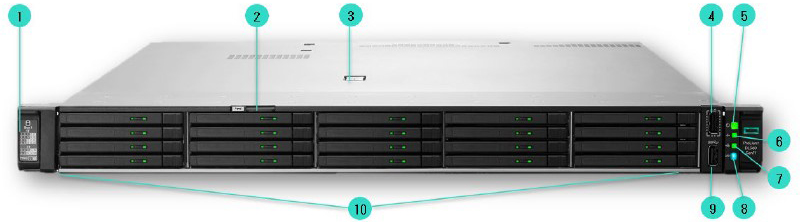

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

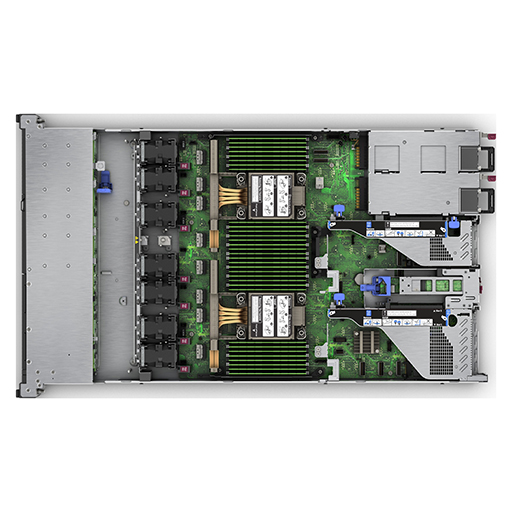

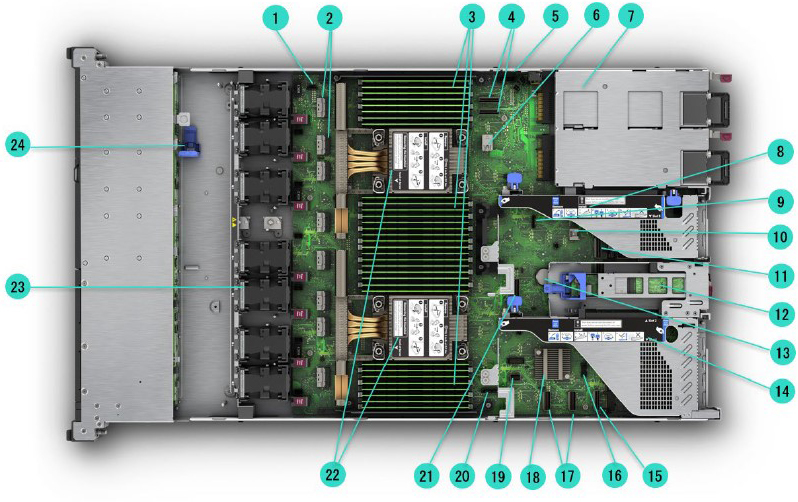

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder

    Purpose-built for virtualization, container orchestration, and compute-intensive workloads, the HPE ProLiant DL360 Gen11 featuring the Intel® Xeon® Silver 4510 offers a compact, powerful solution in a 1U form factor. With a 12-core, 2.4 GHz processor (boosting up to 4.1 GHz), 64 GB DDR5 memory, and dual 2.4 TB SAS drives, this server blends performance with scalable infrastructure for mid-tier data operations. Ideal for organizations needing consistent performance, reliable RAID storage, and seamless network connectivity, this configuration delivers compute strength without overprovisioning.


    Key Features
    • 1 x Intel® Xeon® Silver 4510 processor with 12 cores and 30 MB cache
    • Base frequency of 2.4 GHz with turbo boost up to 4.1 GHz
    • 64 GB DDR5 memory (2 x 32 GB DIMMs), expandable to 4 TB
    • Memory speed of 5600 MHz across 16 DIMM slots
    • 2 x 2.4 TB SAS hard drives with RAID support for data protection
    • Maximum storage capacity up to 153.6 TB
    • Broadcom BCM5719 Gigabit Ethernet with dual RJ-45 ports
    • 3 x USB 3.2 Gen 1 ports and 1 VGA port for flexible connectivity
    • Trusted Platform Module 2.0 for secure cryptographic operations
    • Dual redundant 2000W power supplies (1 installed)
    • Compact 1U rack chassis (Height: 42.9 mm, Width: 753.1 mm, Depth: 434.6 mm)

    Mid-Tier Compute Power in a Compact Form

    Driven by the Intel® Xeon® Silver 4510 processor, this server configuration offers 12 physical cores and a 30 MB cache—balancing compute density and power efficiency for mid-range workloads. With boost speeds up to 4.1 GHz, it handles concurrent tasks in virtualized environments effectively.


    Efficient DDR5 Memory Scalability

    Configured with 64 GB of high-speed DDR5-SDRAM (2 x 32 GB), this server supports a total capacity of up to 4 TB across 16 DIMM slots. Running at 5600 MHz, it ensures fast access to data for memory-intensive applications, while offering room to scale for future demands.


    Reliable SAS Storage with Room to Expand

    Equipped with two 2.4 TB SAS drives, the DL360 Gen11 delivers enterprise-grade storage with built-in RAID support for enhanced data integrity. The chassis supports a total storage capacity of up to 153.6 TB, making it suitable for structured data workloads and virtual desktop infrastructures (VDIs).


    Enterprise Connectivity and Control

    With integrated Broadcom BCM5719 dual-port Gigabit Ethernet and three USB 3.2 Gen 1 ports, the DL360 Gen11 provides reliable, high-speed connectivity. A VGA port supports legacy monitoring, and TPM 2.0 ensures secure credential storage and cryptographic functions.


    Redundancy and Compact Rack Optimization

    Designed in a space-saving 1U rack form factor, this unit includes one installed 2000W power supply with redundancy support. It delivers consistent uptime in critical deployments while optimizing energy use within dense server environments.


    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder

    Product data is provided by Icecat, we do not warrant the accuracy of the material above.
