HPE P77235-425 ProLiant DL380 EU Server

Configured with an Intel Xeon Silver 4514Y processor and engineered for reliable scalability, the HPE ProLiant DL380 Gen11 server delivers dependable performance for growing enterprise workloads. Its DDR5 memory architecture, high-speed storage, and built-in expandability make it an ideal solution for organizations needing consistent computing with room to scale.

Key Features

• 1x Intel Xeon Silver 4514Y processor with 16 cores, 30 MB cache, 2.0 GHz base, and up to 3.4 GHz boost.
• 64 GB DDR5-SDRAM (2 x 32 GB), expandable up to 8 TB with 32 DIMM slots running at 5600 MHz.
• Total storage capacity of 4.8 TB using 2 x 2.4 TB SAS HDDs; supports maximum capacity of 583.3 TB.
• RAID support included for high availability and storage redundancy.
• Dual Broadcom BCM57416 10GbE LAN controllers for high-speed network throughput.
• 3x USB 3.2 Gen 1 Type-A ports and 1x VGA port for versatile connectivity.
• Trusted Platform Module (TPM) 2.0 included for hardware-based system integrity.
• Redundant power supply configuration with 1x 2000W PSU installed.
• 2U rack-mounted chassis design measuring 732.5 mm wide, 448 mm deep, and 87.5 mm high.

Performance-Driven Architecture

At its core, the server features a 16-core Intel Xeon Silver 4514Y processor built for balanced performance and energy efficiency. Combined with 64 GB of DDR5 memory, it ensures smooth operation of multi-threaded applications and virtualized workloads.

High-Capacity Storage, RAID Support

This configuration includes 4.8 TB of SAS-based storage via two 2.4 TB HDDs, offering enterprise-grade durability and speed. RAID functionality ensures resilience and data protection across a potential capacity of up to 583.3 TB.

Advanced Memory and Expansion Potential

With support for up to 8 TB of DDR5 RAM across 32 DIMM slots, the server is well-suited for memory-intensive operations. The 5600 MHz clock speed ensures high throughput and low latency for real-time processing demands.

Secure, Remote-Ready, and Network-Optimized

Equipped with dual 10GbE interfaces, TPM 2.0, and redundancy features, the DL380 Gen11 ensures secure deployment and stable operations in data centers or remote environments. Integrated management tools (iLO 6, sold separately) streamline monitoring and system updates.

Enterprise-Grade Build and Power Efficiency

The server’s 2U rack form factor with redundant 2000W power supply support offers data center-grade reliability. Its optimized airflow and energy-conscious design help maintain uptime without compromise.

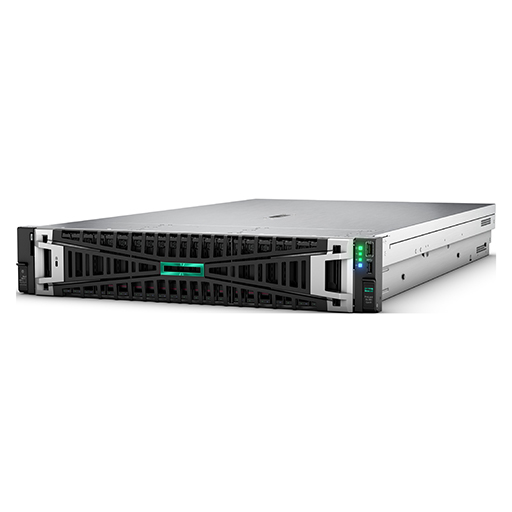

Front View - 8SFF chassis with optional Universal Media Bay

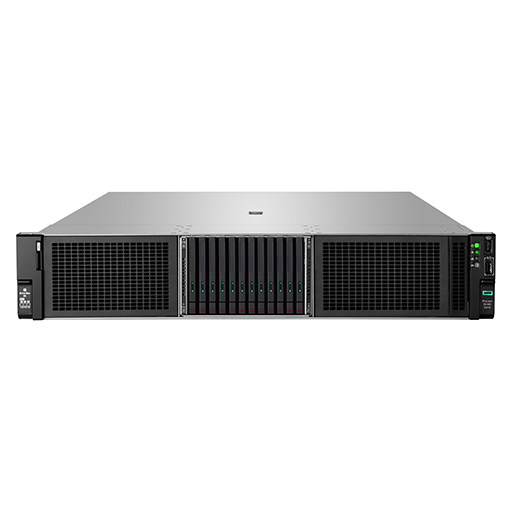

Front View - 12LFF

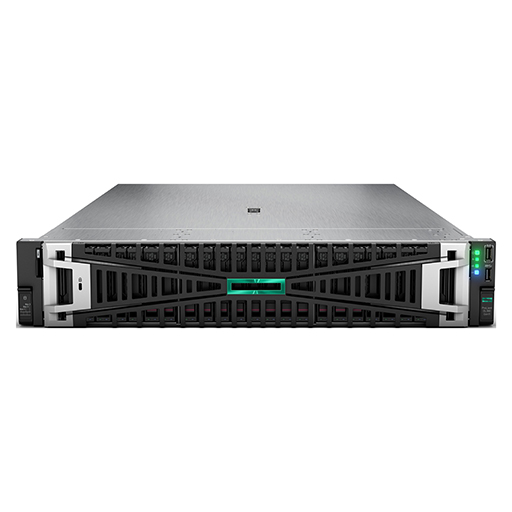

Front View - 12EDSFF chassis shown

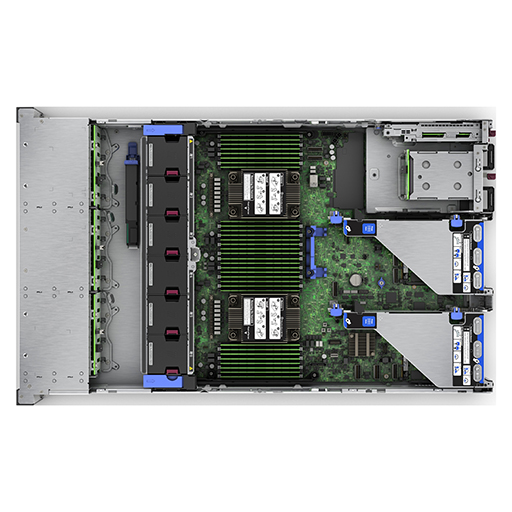

Internal View - 8SFF chassis

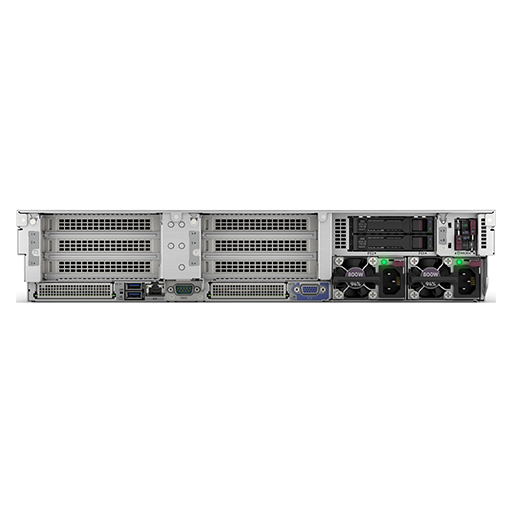

Rear View
