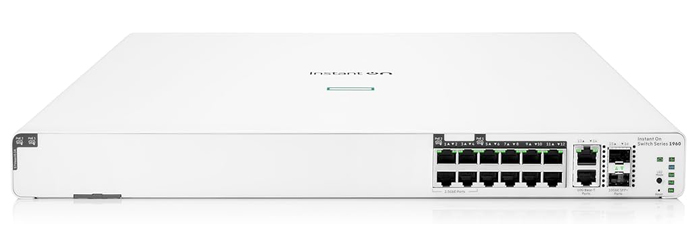

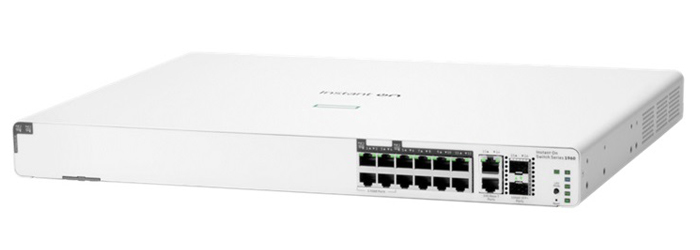

HPE Networking Instant On S0F35A 1960 8 Port 1G PoE Switch

The HPE Networking Instant On S0F35A 1960 8 Port 1G PoE Switch is a versatile and powerful switch designed for small and medium-sized businesses.

Key Features

• Ports: 12 ports in total, including 8 Gigabit Ethernet ports with Class 4 PoE (30W per port) and 4 ports supporting 1G/2.5G Ethernet with Class 6 PoE (60W per port)
• Uplink Ports: 2 SFP+ 10GbE ports and 2 10GBase-T ports for high-speed uplink connectivity
• PoE Budget: 480W total PoE power budget
• Management: Smart-managed with easy setup and management through the Instant On mobile app and cloud-based portal
• Performance: High switching capacity and forwarding rate, ensuring efficient data handling
• Security: Advanced security features including IEEE 802.1X, VLANs, Network Access Control (ACL), and more.

This switch is ideal for environments with high bandwidth needs, providing reliable and scalable network connectivity.

What's New

• Simplify network management by stacking up to (four) 4 HPE Networking Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
• Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
• The HPE Networking Instant On 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
• For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Limited Lifetime Warranty.

Specifications

• Power consumption: 790W, maximum, depending on model
• Input voltage: 100 - 240 VAC
• Ports: 48 10/100/1000 RJ-45 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports, maximum, depending on model. PoE/PoE+ available on select models.
• Switching capacity: 320 Gbps, maximum, depending on model
• Stacking capabilities: 4H height
• Throughput: 238 Mpps, maximum; depending on model
• Memory and processor: Single Core ARMv7 Cortex-A9 @ 2Ghz, maximum, depending on model
• PoE capability: 600W maximum, depending on model
• Operating temperature: 0-40°C, 0-10,000 ft
• Management features: HPE Networking Instant On Cloud; Web browser; SNMP Manager
• Warranty: Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
• Weight: 4.9 kg, maximum, depending on model (10.8 lb, maximum, depending on model)
• Dimensions: 40.28 x 44.25 x 4.40 cm (15.86 x 17.42 x 1.73 in)

Each model of the HPE Networking Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.

Two connections of 10GBASE-T deliver 10GbE over copper Category 5/6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.

With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.

Simplify Network Deployment and Management for Small Organizations

The HPE Networking Instant On 1960 Switch series offers a complete portfolio for increased small business flexibility. It consists of six models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch.

The 12-port, 24-port, and 48-port PoE models come with a power budget of 480W, 370W and 600W respectively to support the latest PoE-powered IoT devices.

The HPE Networking Instant On 1960 Switch series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.

The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.

Ease of Use with Cloud-Managed Stacking

The HPE Networking Instant On mobile app and cloud-based web portal make cloud-managed stacking easy - just follow the recommendations to stack up to four (4) HPE Networking Instant On 1960 switches and manage as a single entity.

The HPE Networking Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.

Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.

Robust Security to Protect Your Network

The HPE Networking Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.

Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.

Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
