Browse Categories
End of Life Product
Was: £69.18
£54.85
£65.82 Inc VAT.
Earn 27 Data Points when purchasing this product. More Info
Sorry, this item is no longer available from Comms Express.

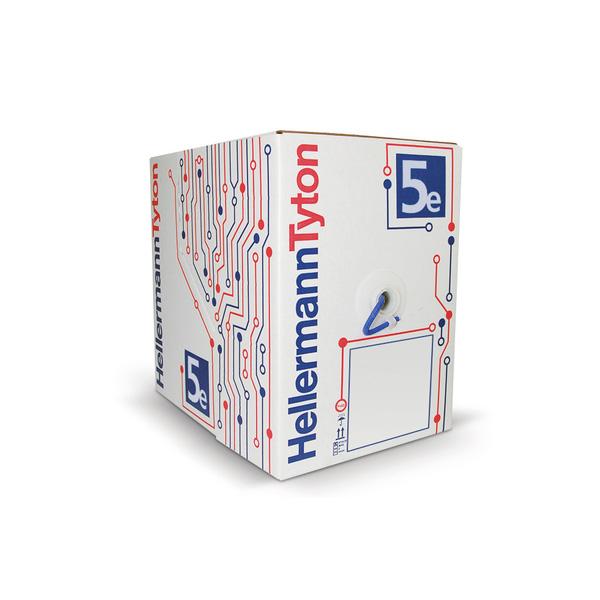

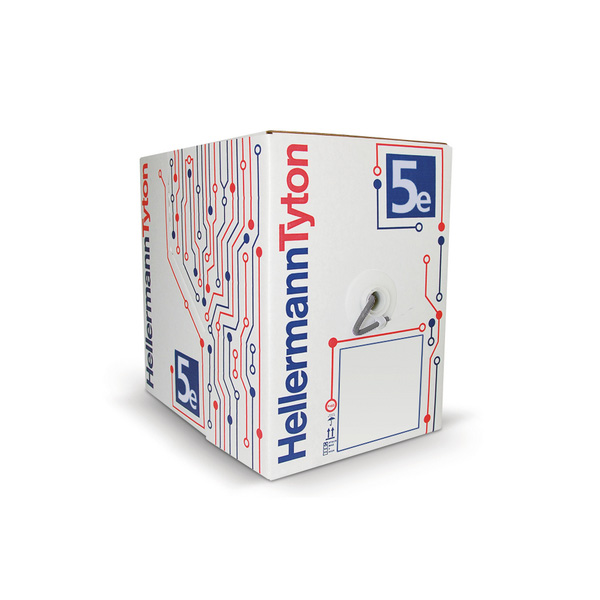

HellermannTyton Cat5e UTP PVC Cable

Available in Grey & Blue - 305mt Box

by HellermannTyton
See more product details
Colour:
Part No:HT-UTPSBL
Manufacturer No:CA083
Delivery: End of Life Product
More Related Items
Email product to a friend
X
  • Scroll to top
    HellermannTyton Cat5e UTP PVC Cable
    Available in Grey & Blue - 305mt Box

    HellermannTyton Cat5e UTP PVC Cable


    This Network Sciences approved Category 5 Enhanced cable is suitable for campus, riser and horizontal installations, and is compatible with all known connection systems according to EN50173. UTP and FTP versions available.

    Technical Description

    • ISO/IEC 11801 - 2nd Edition EN 50173; PrEN 50288-3-1
    • EIA/TIA 568A-5
    • TSB 95 Fire Propagation Test : UL 1581 VW1 and IEC 332.1
    • Conductor Bare Cu Wire Insulator Material PE Number of Twisted Pairs
    • Sheath Material PVC
    • Outside Diameter of Conductor 0.52 mm
    • Outside Diameter of Insulation 0.94 mm
    • Outside Diameter of Sheath 5.50 mm
    • Weight PVC (OHLS) 34.2(37.4) kg/km
    • Sheath Colour (OEM Specified)
    • Batch No. and Metre marking.
    • NVP rating 66%
    • Temp. Range Installed 0 to 50ºC
    • Operating Temp. Range -20 to 60ºC
