Grandstream GDS RFID Card Reader for GDS3710 (GDS-RD)

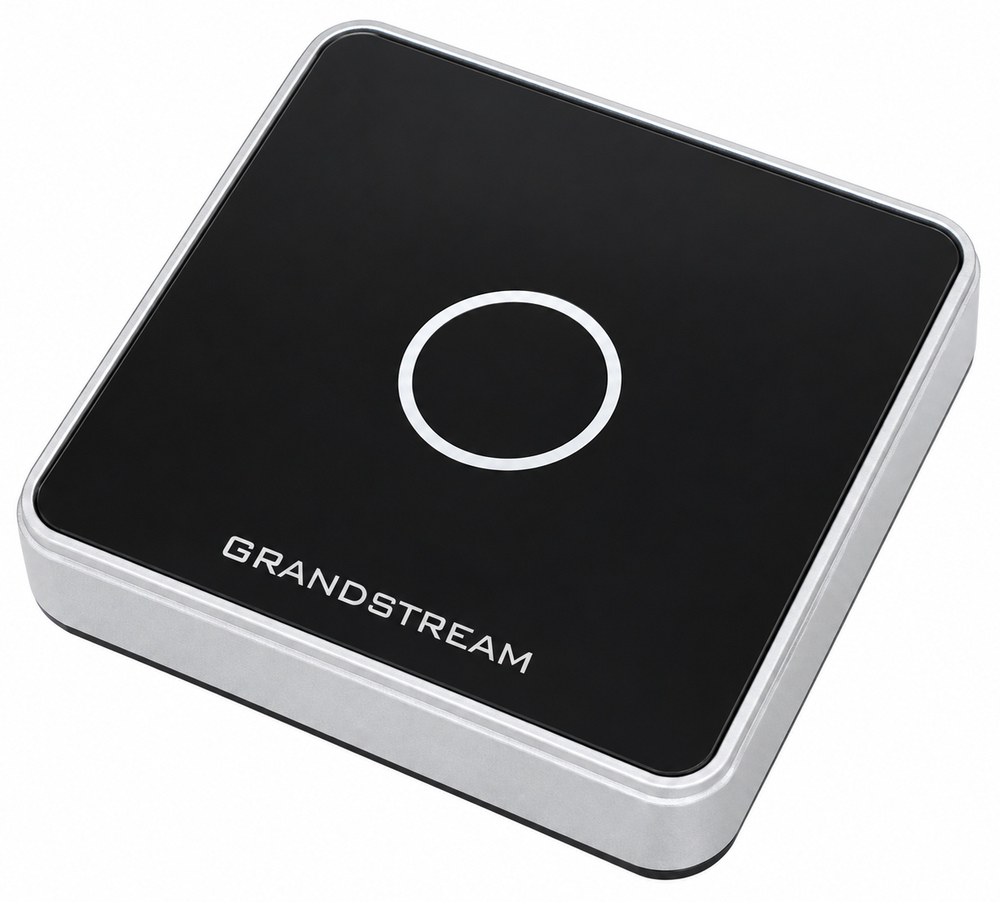

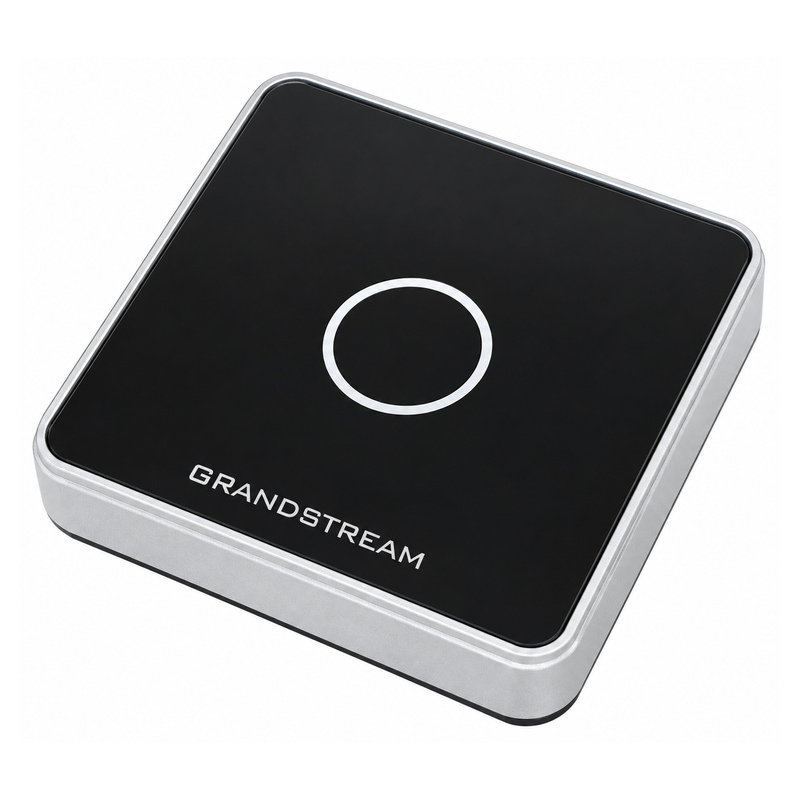

Grandstream RFID-CR USB RFID Card Reader for GDS Series

The Grandstream RFID-CR is a USB RFID card reader designed to work with Grandstream GDS series IP Door Systems and compatible 125kHz access credentials. Connected to a computer running Grandstream's free GDS Manager software, it allows RFID reader activity to be tracked, monitored and managed centrally.

The reader supports 125kHz EM4100 RFID cards with an effective reading distance of up to 40mm. It is powered directly through USB, incorporates a built-in antenna with card-seeking mode and includes a 1.5m USB cable for straightforward desktop installation.

Key Features

• USB RFID [Radio Frequency Identification] card reader for Grandstream GDS series IP Door Systems
• Supports 125kHz EM4100 RFID credentials
• Effective reading distance of 0-40mm
• Connects to a computer running Grandstream GDS Manager software
• Built-in antenna with card-seeking mode
• USB powered with 5VDC ±4% input
• 20mA standby current and less than 35mA operating current
• 1.5m USB cable
• Compact 108.5 x 108.5 x 24mm design

Key Benefits

• Provides a convenient desktop interface for managing compatible RFID credentials used across Grandstream GDS access-control installations
• GDS Manager integration allows RFID reader activity to be tracked, monitored and managed centrally from a computer
• USB power removes the need for a separate mains power supply at the reader
• Built-in antenna and card-seeking mode make compatible credentials quick and straightforward to present to the reader
• Compact desktop design allows the reader to be positioned conveniently wherever access credentials are administered

The RFID-CR is designed for use with Grandstream GDS series IP Door Systems including the Grandstream GDS3710 HD IP Video Door System

Comms Express offers the RFID-CR alongside other Grandstream RFID access products in Grandstream Facility Access Systems including:

• RFID-CR - USB 125kHz RFID reader with GDS Manager integration
• RFID-BUNDLE - 10-pack of RFID cards for the GDS3710
• RFID-FOBBUNDLE - 10-pack of RFID key fobs for the GDS3710
• RFID-CARDBUNDLE - non-writable proximity RFID card for GDS access and USB RFID reader applications

Comms Express also offers a broad choice of access-control, networking and security products to support wider door-entry installations:

• Ubiquiti Security - a wide range of access readers, door hubs, intercoms, locks, starter kits and other UniFi Access products
• Axis Access Control - a comprehensive range of network door controllers, door stations, card readers and related access-control equipment
• PoE Switches - an extensive multi-brand range for supplying network connectivity and Power over Ethernet to compatible IP security and access-control equipment

*For complete specifications see the documentation tab above
