Grandstream GCC6010W GCC6XXX SERIES ROUTER, PBX, AP, FIREWALL, SWITCH

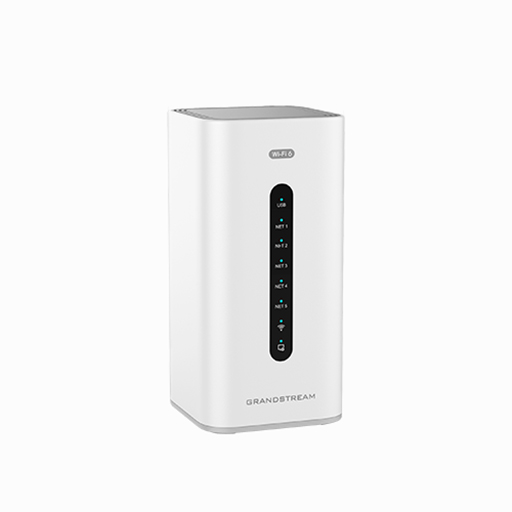

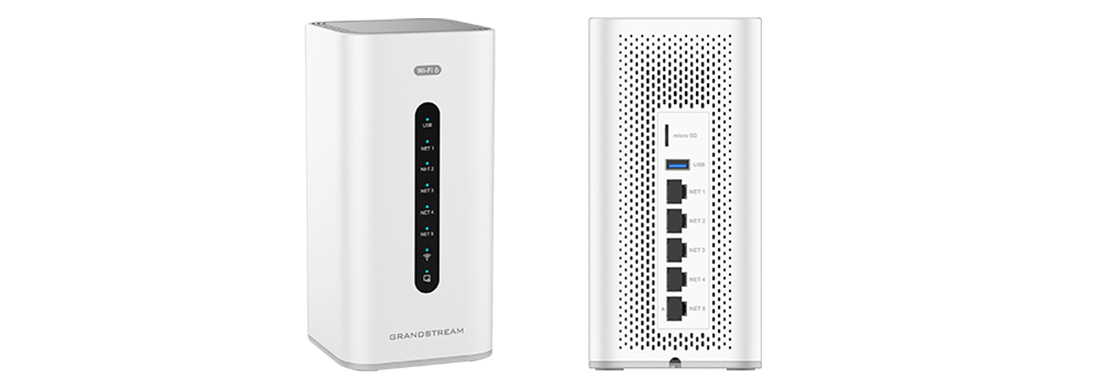

Grandstream GCC6010W All-in-One 3Gbps Router, Wi-Fi 6 Access Point, Firewall, 12-User IP PBX and 5-Port Network Switch

The Grandstream GCC6010W combines five functions often handled by separate hardware: a 3Gbps VPN router, a dual-band Wi-Fi 6 access point, a next-generation firewall, an IP PBX and a five-port Gigabit network switch. For such a compact unit, it packs in an exceptional amount of technology and offers excellent value to smaller businesses bringing networking, wireless coverage, security and telephony together.

All five Gigabit Ethernet ports can be configured for WAN or LAN use, with support for up to three WAN connections. Load balancing and failover help maintain connectivity across multiple internet connections, while the built-in 2.4GHz and 5GHz Wi-Fi 6 access point provides wireless coverage for a recommended usable area of up to 180m², subject to the building and surrounding radio environment. Connected devices require their own power or a separate PoE switch or injector.

The built-in firewall provides anti-virus protection, IDS/IPS, deep packet inspection, SSL inspection and content controls. IPsec, OpenVPN, WireGuard, PPTP and L2TP support remote-access and site-to-site VPNs.

The IP PBX supports 12 users and four concurrent calls as standard. The GCC6010W can centrally manage up to 150 Grandstream GWN access points and support up to 500 network clients. It can be managed through GDMS, the Grandstream mobile app, local web interface, SSH or SNMP.

Key Features:

• Combines a 3Gbps VPN router, Wi-Fi 6 access point, next-generation firewall, IP PBX and five-port Gigabit network switch
• Quad-core 2.0GHz processor with 2GB RAM and 32GB eMMC (embedded MultiMediaCard)

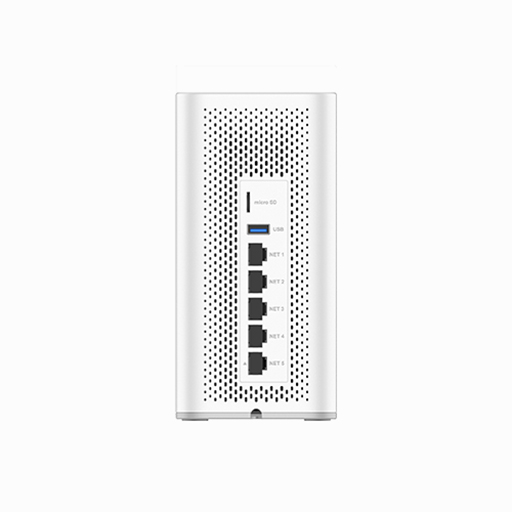

• Five Gigabit Ethernet ports configurable for WAN or LAN use
• Supports up to three WAN connections with load balancing and failover
• Dual-band Wi-Fi 6 across the 2.4GHz and 5GHz frequency bands
• Recommended usable wireless coverage of up to 180m², subject to the installation environment
• 3Gbps routing and 1Gbps IPsec VPN throughput
• 900Mbps IDS/IPS performance (Intrusion Detection System/Intrusion Prevention System)
• Supports up to 160,000 NAT sessions (Network Address Translation)
• IP PBX supports 12 users and four concurrent calls as standard
• Centrally manages up to 150 Grandstream GWN access points and supports up to 500 network clients
• Managed through GDMS (Grandstream Device Management System), mobile app, web interface, SSH (Secure Shell) or SNMP (Simple Network Management Protocol)
• Compact desktop mini-tower design

The package includes the GCC6010W, universal power supply, network cable and quick installation guide. For PBX capacity upgrades or firewall signature updates beyond the included first year, please contact Comms Express for availability and pricing.

Customers who like this all-in-one approach can compare the Grandstream GCC6010 and Grandstream GCC6011 in Grandstream Routers. Comms Express also offers an exceptionally extensive Grandstream range, including IP phones, switches, wireless access points, IP PBXs, conferencing systems, gateways and other networking and communications products.

*For complete specifications see the documentation tab above
