| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FN-TRAN-SX-C-QTM |
| Manufacturer No: | FN-TRAN-SX |
| Delivery: | In Stock: 2-3 Days |
 |

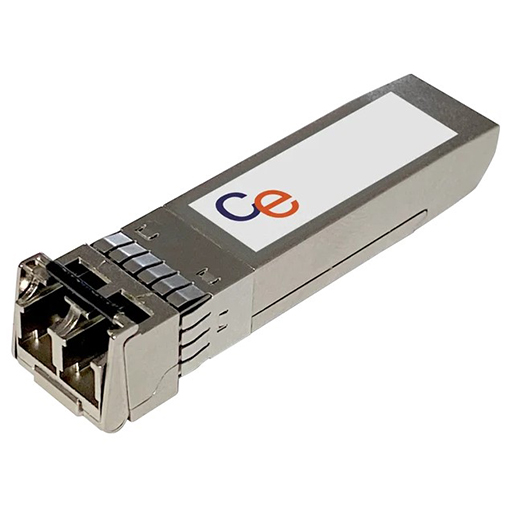

The CE FN-TRAN-SX Fortinet Compatible SFP transceiver provides 1000BASE-SX Gigabit Ethernet connectivity over multimode fibre using an 850nm optical wavelength. It supports transmission distances of up to 550m, depending on the fibre type, and uses a Duplex LC connector for the optical interface. The SFP module supports Digital Optical Monitoring, hot-pluggable installation and a 1.25Gbps Ethernet data link rate, making it suitable for compatible Fortinet networking equipment.
The transceiver supports 1000BASE-SX Gigabit Ethernet using an 850nm optical wavelength and multimode fibre. Fortinet specifies a 1.25Gbps Ethernet data link rate, with transmission distances of 220m or 500m depending on the multimode fibre specification. Compatible modules commonly specify up to 550m on suitable MMF.
The Duplex LC connector provides separate optical paths for transmitting and receiving data across the fibre connection. The compact SFP format allows the module to be fitted into compatible SFP ports on Fortinet networking equipment.
Digital Optical Monitoring provides access to operating information from the transceiver through its serial management interface. Compatible FN-TRAN-SX modules can report parameters such as temperature, supply voltage, laser bias current and optical transmit and receive power.
The SFP module supports hot-pluggable installation, allowing it to be inserted into or removed from a compatible SFP slot without powering down the networking equipment. It also supports serial identification and digital monitoring functions.
The CE FN-TRAN-SX Fortinet Compatible SFP transceiver provides 1000BASE-SX Gigabit Ethernet connectivity over multimode fibre using an 850nm optical wavelength. It supports transmission distances of up to 550m, depending on the fibre type, and uses a Duplex LC connector for the optical interface. The SFP module supports Digital Optical Monitoring, hot-pluggable installation and a 1.25Gbps Ethernet data link rate, making it suitable for compatible Fortinet networking equipment.
The transceiver supports 1000BASE-SX Gigabit Ethernet using an 850nm optical wavelength and multimode fibre. Fortinet specifies a 1.25Gbps Ethernet data link rate, with transmission distances of 220m or 500m depending on the multimode fibre specification. Compatible modules commonly specify up to 550m on suitable MMF.
The Duplex LC connector provides separate optical paths for transmitting and receiving data across the fibre connection. The compact SFP format allows the module to be fitted into compatible SFP ports on Fortinet networking equipment.
Digital Optical Monitoring provides access to operating information from the transceiver through its serial management interface. Compatible FN-TRAN-SX modules can report parameters such as temperature, supply voltage, laser bias current and optical transmit and receive power.
The SFP module supports hot-pluggable installation, allowing it to be inserted into or removed from a compatible SFP slot without powering down the networking equipment. It also supports serial identification and digital monitoring functions.
