| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | ENACC-WIFI-MICRO-USB |
| Manufacturer No: | ACC-WIFI-MICRO-USB |
| Delivery: | In Stock: 7-10 Days |
 |
When you connect to the Micro USB console port, the management station from which you connect to the device must have a VT100 emulation program, such as TeraTerm Pro (a free terminal emulator) or Hilgraeve HyperTerminal (provided with Windows operating systems from XP forward).

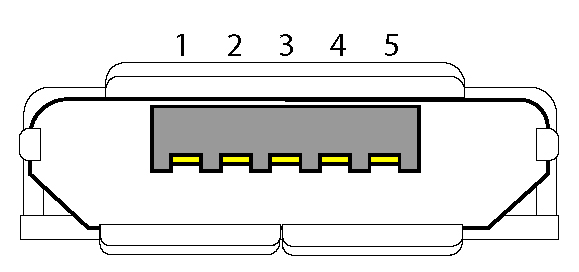

| Pin Number | Pin Name and Description |
|---|---|
| 1 | NC |
| 2 | R×D (input to access point) |
| 3 | T×D (output to terminal) |
| 4 | Signal (GND) |
| 5 | Signal (GND) |
When you connect to the Micro USB console port, the management station from which you connect to the device must have a VT100 emulation program, such as TeraTerm Pro (a free terminal emulator) or Hilgraeve HyperTerminal (provided with Windows operating systems from XP forward).
| Pin Number | Pin Name and Description |
|---|---|
| 1 | NC |
| 2 | R×D (input to access point) |
| 3 | T×D (output to terminal) |
| 4 | Signal (GND) |
| 5 | Signal (GND) |
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
