| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
If you wish to enquire about this product please contact us on
0800 488 0000
Cable Length: |
| Part No: | FEN520-01M |
| Manufacturer No: | N520-01M |
| Delivery: | In Stock: 5-7 Days |
 |

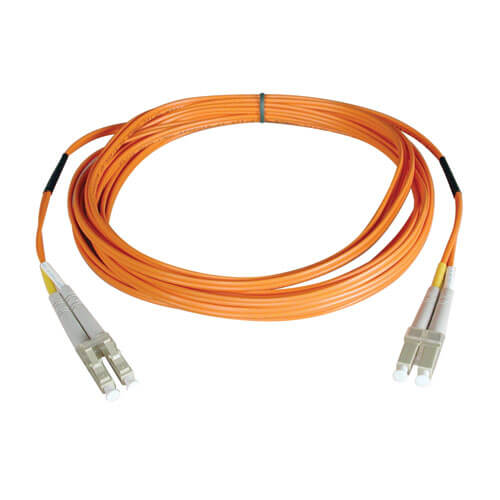

Constructed with 50/125 micron cable
Use on fibre and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit networks
Backward compatible with 62.5 micron fibre
Built-in headroom for future applications
Number of fibre: 2
Fibre type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Bevelled edge on ends of glass makes insertion of plug a breeze
*Product may differ in appearance; Images used are for illustrative purposes only
