| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
If you wish to enquire about this product please contact us on
0800 488 0000
Cable Length: |
| Part No: | FEN506-01M |
| Manufacturer No: | N506-01M |
| Delivery: | In Stock: 5-7 Days |
 |

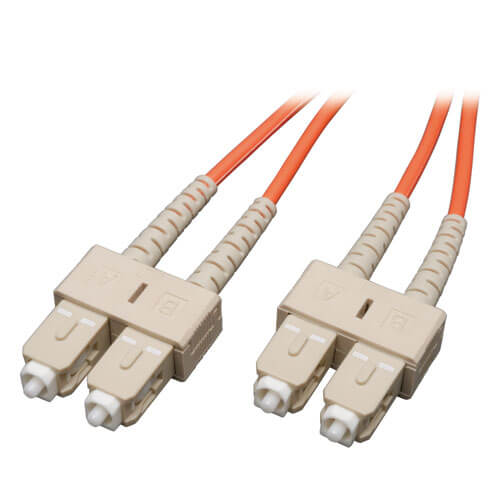

Constructed with 50/125 micron cable
Use on fibre and fibre channel installations
SC male to SC male connectors
Higher bandwidth optimized for Gigabit and 10Gbps networks
Backward compatible with 62.5 micron fibre
Built-in headroom for future applications
Number of fibres: 2
Fibre type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Bevelled edge on ends of glass makes insertion of plug a breeze
