| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | TL9PX6KIRTNG2-L |
| Manufacturer No: | 9PX6KIRTNG2-L |
| Delivery: | In Stock: Next Day |
 |

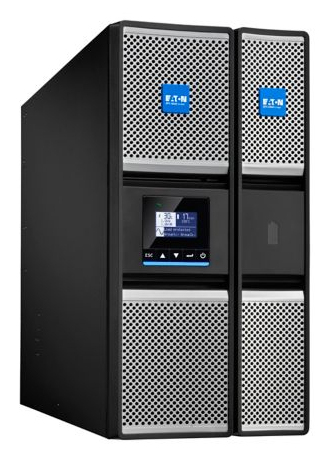

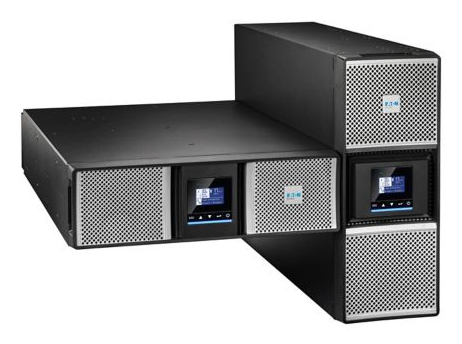

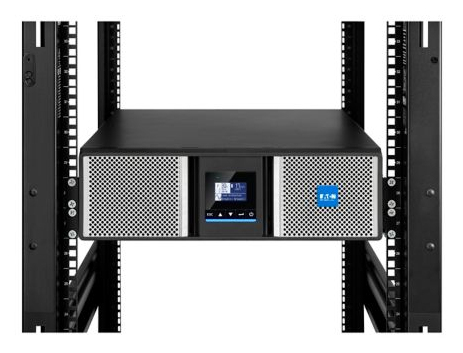

The Eaton 9PX6KIRTNG2-L is a 6000VA/6000W online double-conversion UPS providing continuous power protection for critical IT and electrical equipment. It uses lithium-ion battery technology with advanced battery management, while the 3U rack/tower format provides flexible installation in server rooms and equipment racks. An internal bypass, graphical LCD display and included Gigabit network card provide additional control, monitoring and service continuity.
The UPS uses online double-conversion technology to continuously regulate the incoming electrical supply before delivering power to connected equipment. Its power factor correction system supports a stable supply while the output waveform remains a pure sine wave.
With a 6000VA and 6000W rating, the UPS provides a unity power factor output for high-power IT and electrical loads. The output voltage can be configured for 200V, 208V, 220V, 230V or 240V operation according to installation requirements.

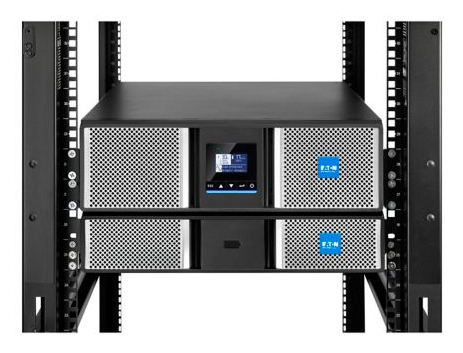

Lithium-ion batteries provide energy storage with an advanced battery management system for monitoring battery condition. The UPS can automatically recognise compatible external battery units, allowing additional battery capacity to be connected when longer runtime is required.
An internal bypass provides an alternative power path in the event of a UPS fault or when bypass operation is required. This helps maintain power continuity for connected equipment while servicing or fault conditions are addressed.

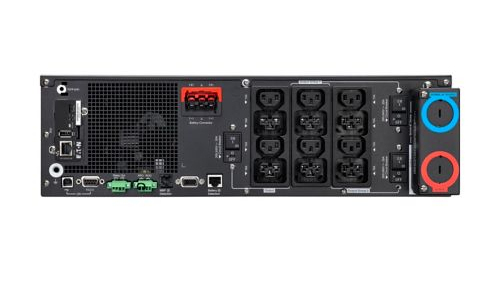

The UPS uses hardwired input and output connections and provides six C13 and six C39 output connections. The combination of hardwired connections and multiple IEC outlets allows different types of equipment to be connected within the supported installation.
A Gigabit Network Management Card is included for remote monitoring and management. The UPS also provides USB and RS232 communication interfaces, remote On/Off and remote power-off connections, plus relay outputs for integration with external monitoring systems.
The multilingual graphical LCD display provides information about UPS status and operating measurements. It also provides access to configuration settings and allows important operating information to be viewed directly from the front of the unit.
The Eaton 9PX6KIRTNG2-L is a 6000VA/6000W online double-conversion UPS providing continuous power protection for critical IT and electrical equipment. It uses lithium-ion battery technology with advanced battery management, while the 3U rack/tower format provides flexible installation in server rooms and equipment racks. An internal bypass, graphical LCD display and included Gigabit network card provide additional control, monitoring and service continuity.
The UPS uses online double-conversion technology to continuously regulate the incoming electrical supply before delivering power to connected equipment. Its power factor correction system supports a stable supply while the output waveform remains a pure sine wave.
With a 6000VA and 6000W rating, the UPS provides a unity power factor output for high-power IT and electrical loads. The output voltage can be configured for 200V, 208V, 220V, 230V or 240V operation according to installation requirements.
Lithium-ion batteries provide energy storage with an advanced battery management system for monitoring battery condition. The UPS can automatically recognise compatible external battery units, allowing additional battery capacity to be connected when longer runtime is required.
An internal bypass provides an alternative power path in the event of a UPS fault or when bypass operation is required. This helps maintain power continuity for connected equipment while servicing or fault conditions are addressed.
The UPS uses hardwired input and output connections and provides six C13 and six C39 output connections. The combination of hardwired connections and multiple IEC outlets allows different types of equipment to be connected within the supported installation.
A Gigabit Network Management Card is included for remote monitoring and management. The UPS also provides USB and RS232 communication interfaces, remote On/Off and remote power-off connections, plus relay outputs for integration with external monitoring systems.
The multilingual graphical LCD display provides information about UPS status and operating measurements. It also provides access to configuration settings and allows important operating information to be viewed directly from the front of the unit.
