Layer 3 Stackable 10G / 100G Managed Switches

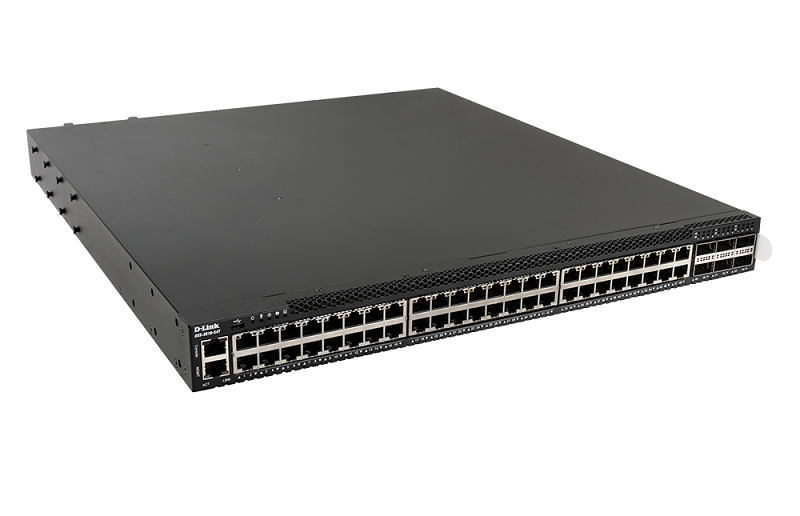

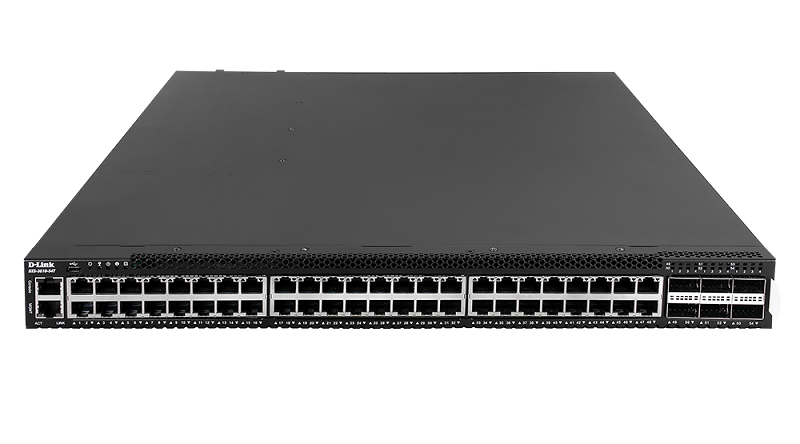

DXS-3610-54T - 48-port 10GBase-T, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 front-to-back AC PSUs and 5 front-to-back fan modules
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

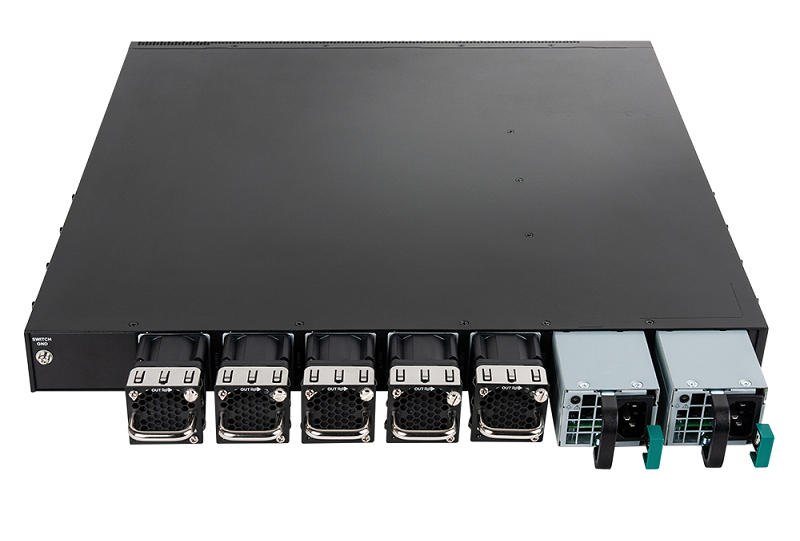

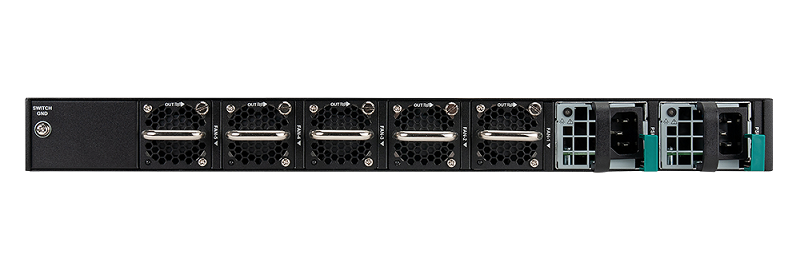

The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps. Hot-Swappable Redundancy The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
Management Features | |
Multicast support | Yes |
Switch type | Managed |
Switch layer | L3 |
Performance | |
Packet buffer memory | 32 MB |
Physical stacking (units) | 12 |
Virtual stacking (units) | 32 |
Stackable | Yes |
Noise level | 76.6 dB |
Ports & interfaces | |
SFP+ module slots quantity | 48 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
USB 2.0 ports quantity | 1 |
Console port | RJ-45 |
QSFP28 ports quantity | 6 |
Data transmission | |
Jumbo frames | 9436 |
Packet buffer memory | 32 MB |
MAC address table | 294912 entries |
Switching capacity | 2211.84 Gbit/s |
Forwarding rate | 1607.04 Mpps |
Power | |
Power consumption (max) | 330.2 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power consumption (typical) | 108.2 W |
Redundant power supply (RPS) support | Yes |
Operational conditions | |
Heat dissipation | 1126 BTU/h |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 0 - 95% |
