In Stock: 4-6 Weeks
£7192.68
£8,631.22 Inc VAT
Earn 3596 Data Points when purchasing this product. More Info

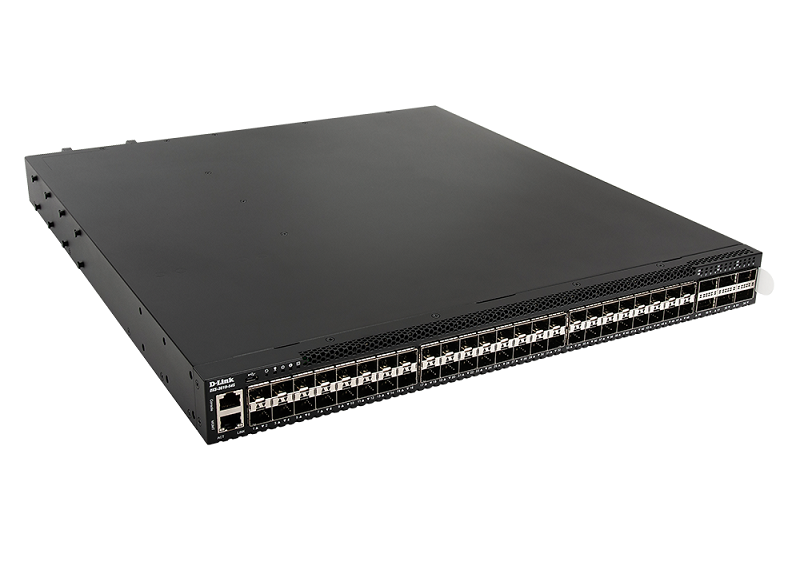

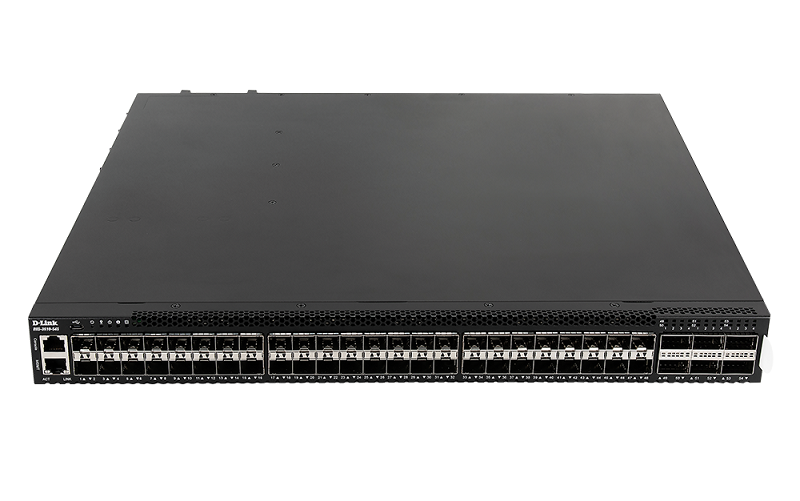

D-Link DXS-3610-54S/SI 48-port Layer 3 Managed Switch

48-port 10G SFP+, 6-port 100G QSFP28 Layer 3 Stackable 10G Managed Switches

by D-Link
See more product details
Part No:DLDXS-3610-54S/SI
Manufacturer No:DXS-3610-54S/SI
Delivery: In Stock: 4-6 Weeks
Email product to a friend
X
  • Scroll to top
    D-Link DXS-3610-54S/SI 48-port Layer 3 Managed Switch
    48-port 10G SFP+, 6-port 100G QSFP28 Layer 3 Stackable 10G Managed Switches

    Layer 3 Stackable 10G / 100G Managed Switches

    DXS-3610-54S - Layer 3 Stackable 10G / 100G Managed, 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-toback fan modules



    Product features:

    • High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
    • Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
    • OpenFlow 1.3 compliance for SDN-enabled network compatibility

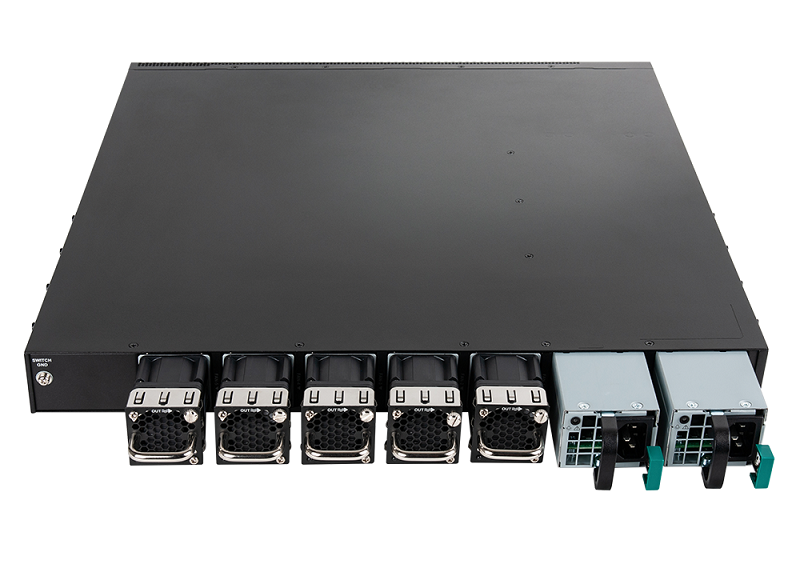

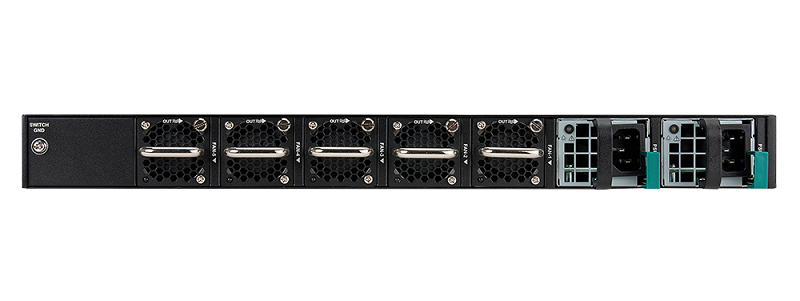

    • Modular PSU (1+1) and fan (N+1) with load sharing capabilities
    • Switch locator LED and ID tag for maintenance convenience
    • Upgradable license for full L3 and MPLS applications



    OpenFlow Switching that Stacks Above the Competition

    The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.


    High Availability

    The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps. Hot-Swappable Redundancy The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.


    Robust and Versatile Stacking Capability

    Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.


    Enhanced Manageability for Peace of Mind

    For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.





    Management Features
    Multicast support Yes
    Switch type Managed
    Switch layer L3


    Performance
    Mean time between failures (MTBF) 94262 h
    Packet buffer memory 32 MB
    Physical stacking (units) 12
    Virtual stacking (units) 32
    Stackable Yes
    Noise level 79.4 dB


    Ports & interfaces
    SFP+ module slots quantity 48
    Basic switching RJ-45 Ethernet ports type None
    USB 2.0 ports quantity 1
    Console port RJ-45
    QSFP28 ports quantity 6


    Data transmission
    Jumbo frames 9436
    Packet buffer memory 32 MB
    MAC address table 294912 entries
    Switching capacity 2211.84 Gbit/s
    Forwarding rate 1607.04 Mpps


    Power
    Power consumption (max) 320.8 W
    AC input voltage 110 - 240 V
    AC input frequency 50/60 Hz


    Operational conditions
    Heat dissipation 1083 BTU/h
    Storage temperature (T-T) -40 - 70 °C
    Storage relative humidity (H-H) 0 - 95%
    Operating temperature (T-T) 0 - 45 °C
    Operating relative humidity (H-H) 0 - 95%


    Operational conditions
    Width 441 mm
    Depth 487.4 mm
    Height 43.5 mm
    Weight 9.8 kg

    Layer 3 Stackable 10G / 100G Managed Switches

    DXS-3610-54S - Layer 3 Stackable 10G / 100G Managed, 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-toback fan modules



    Product features:

    • High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
    • Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
    • OpenFlow 1.3 compliance for SDN-enabled network compatibility
    • Modular PSU (1+1) and fan (N+1) with load sharing capabilities
    • Switch locator LED and ID tag for maintenance convenience
    • Upgradable license for full L3 and MPLS applications



    OpenFlow Switching that Stacks Above the Competition

    The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.


    High Availability

    The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps. Hot-Swappable Redundancy The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.


    Robust and Versatile Stacking Capability

    Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.


    Enhanced Manageability for Peace of Mind

    For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.





    Management Features
    Multicast support Yes
    Switch type Managed
    Switch layer L3


    Performance
    Mean time between failures (MTBF) 94262 h
    Packet buffer memory 32 MB
    Physical stacking (units) 12
    Virtual stacking (units) 32
    Stackable Yes
    Noise level 79.4 dB


    Ports & interfaces
    SFP+ module slots quantity 48
    Basic switching RJ-45 Ethernet ports type None
    USB 2.0 ports quantity 1
    Console port RJ-45
    QSFP28 ports quantity 6


    Data transmission
    Jumbo frames 9436
    Packet buffer memory 32 MB
    MAC address table 294912 entries
    Switching capacity 2211.84 Gbit/s
    Forwarding rate 1607.04 Mpps


    Power
    Power consumption (max) 320.8 W
    AC input voltage 110 - 240 V
    AC input frequency 50/60 Hz


    Operational conditions
    Heat dissipation 1083 BTU/h
    Storage temperature (T-T) -40 - 70 °C
    Storage relative humidity (H-H) 0 - 95%
    Operating temperature (T-T) 0 - 45 °C
    Operating relative humidity (H-H) 0 - 95%


    Operational conditions
    Width 441 mm
    Depth 487.4 mm
    Height 43.5 mm
    Weight 9.8 kg
