| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DLDUB-E250 |
| Manufacturer No: | DUB-E250 |
| Delivery: | In Stock: 1-2 Weeks |
 |

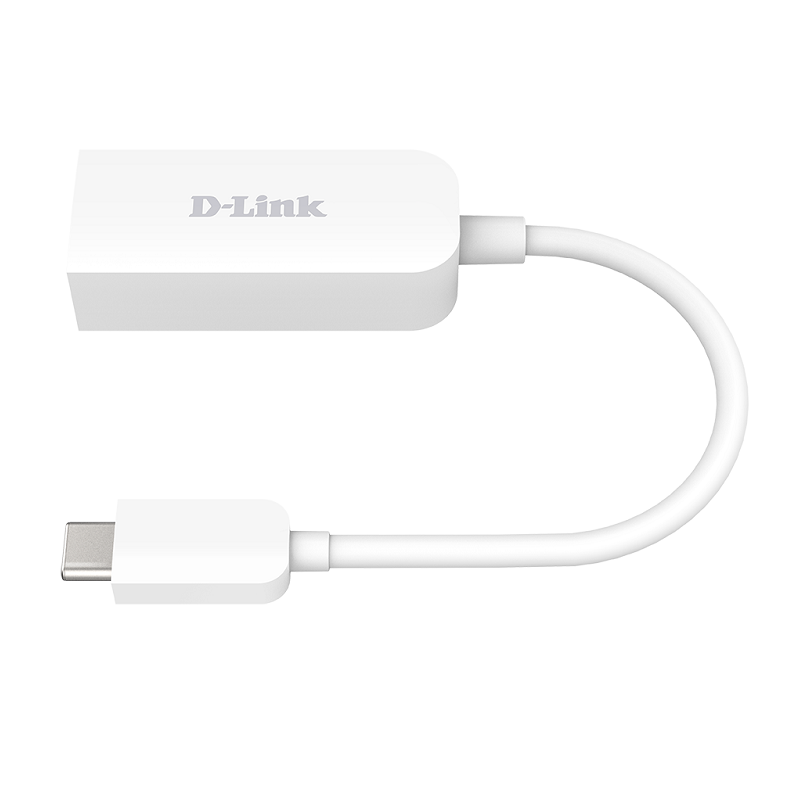

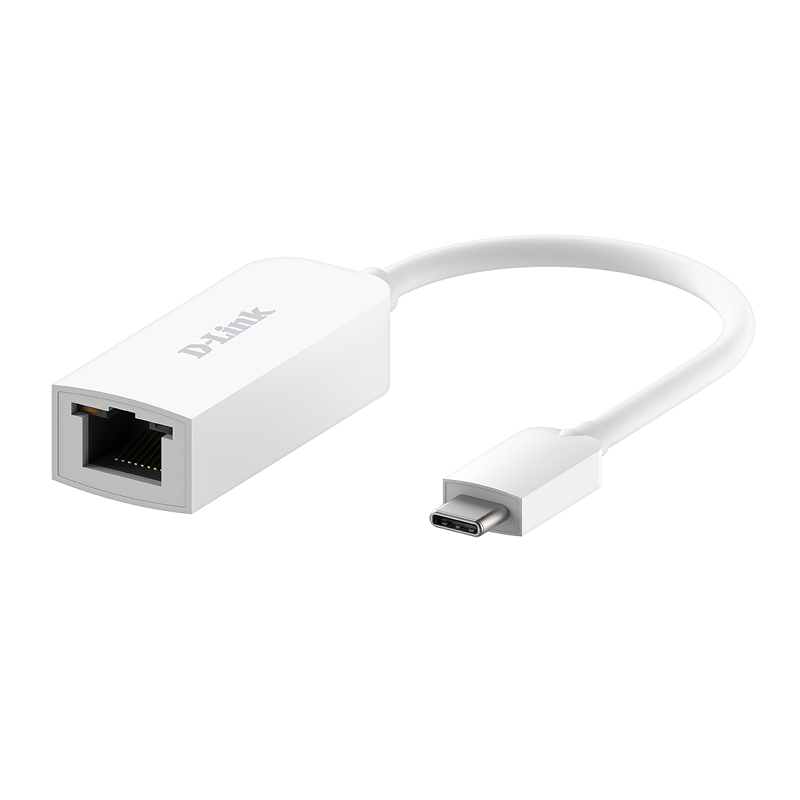

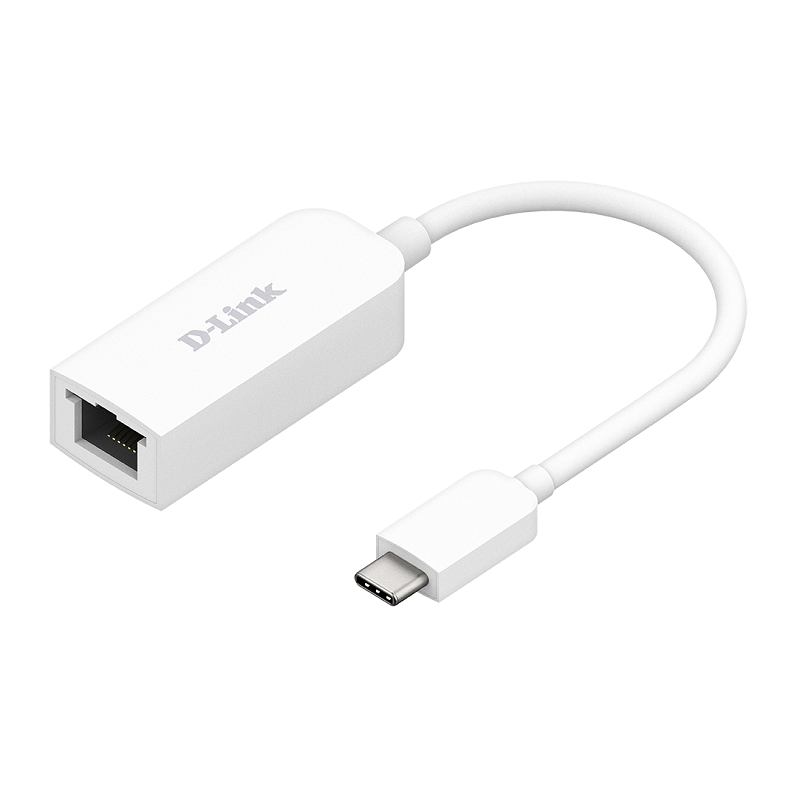

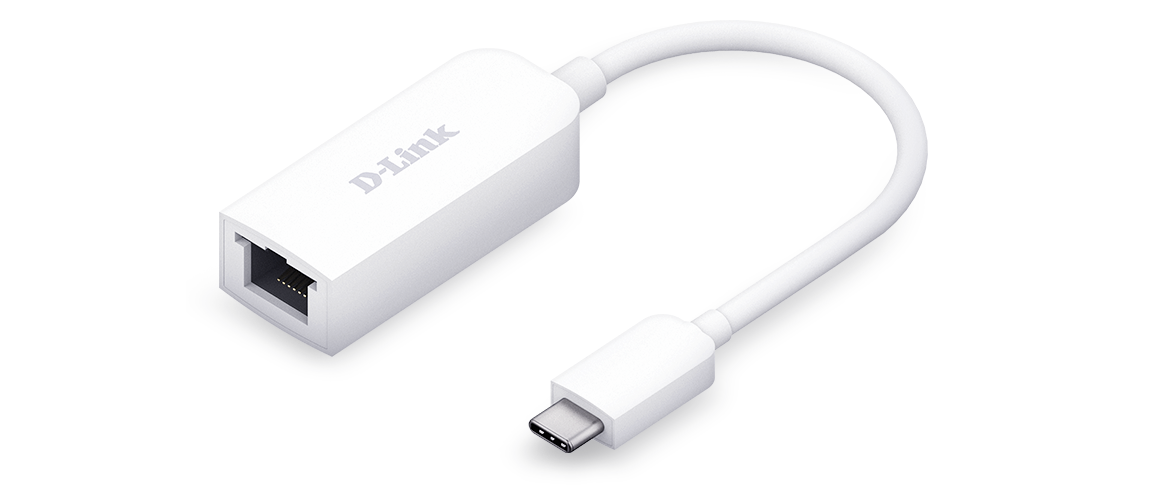

USB-C to 2.5G Ethernet Adapter

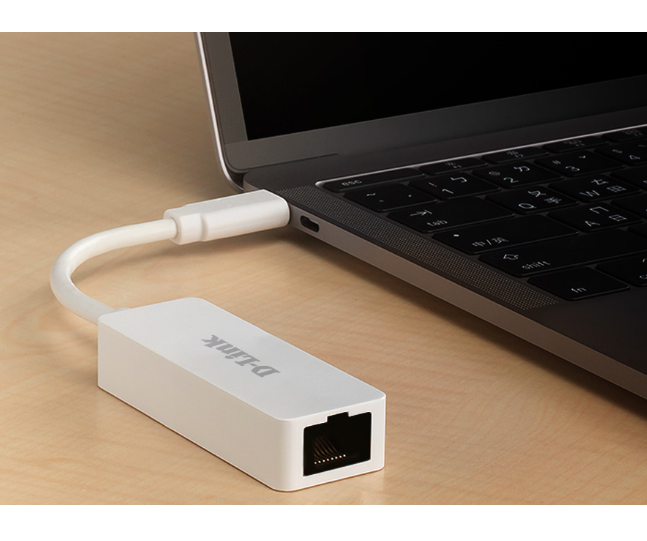

Instantly add multi-Gigabit connectivity to your laptop computer or desktop. Just plug the adapter into an available USB-C port and you’re ready to connect to your router or switch at 2.5x the speed of a standard Gigabit connection.
Simply plug into your computer and enjoy fast 2.5 Gigabit Ethernet that allows you to transfer large files in no time, or make light work of backups to a server or network storage device. This reliable adaptor allows you to connect to multi-gigabit speeds instantly, perfect for network intensive workloads.
Simply plug the adapter into an available USB-C port. The installation software is already preloaded on the adapter, so there’s no need for CDs or downloads1. The portable compact design lets you easily slip the adapter into your pocket or laptop bag and take it with you anywhere.
• 2.5G Ethernet Connectivity
• USB-C / Thunderbolt 3 Connector
• Auto Speed Detection
• Supports Crossover Detection
• Supports Full-Duplex Mode
• Two LED indicators
• No power adapter required
• Bundled with a virtual CD for driver installation (for Windows)
• Backwards compatible (10/100/1000 Mbps)
Power to the adapter is provided directly from the USB Type-C port and not only supports the USB 3.0 standard’s power-saving features, but also includes an energy-saving suspend and resume function to minimise power consumption when network traffic is light, the device is idle, or when the Ethernet cable is unplugged. Good for the environment, and ever better for your device’s battery life.
The DUB-E250 is fully backwards compatible with existing Fast Ethernet or Gigabit networks, allowing you to connect to a wired network wherever you are.
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2500 Mbit/s |
| Technical details | |
| Product colour | White |
| Auto MDIX IEEE | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Cable length | 0.16 m |
| Ports & interfaces | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | USB Type-C |
| Connectivity technology | Wired |
| Network | |
| VLAN tagging | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 25 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 2500 Mbit/s |
| Maximum data transfer rate | 2500 Mbit/s |
| Design | |
| Product colour | White |
| Certification | CE, FCC, IC |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Component for | Notebook |
| Power | |
| Power consumption | 250 mA |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 45 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Weight & dimensions | |
| Width | 21.5 mm |
| Depth | 53 mm |
| Height | 15 mm |
| Weight | 28.5 g |
Full specification and details can be found in the Product Datasheet PDF file
An installation guide can be found in the Product Datasheet PDF file
