| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DLDIS-210G-12UP |
| Manufacturer No: | DIS-210G-12UP |
| Delivery: | In Stock: 7-10 Days |
 |

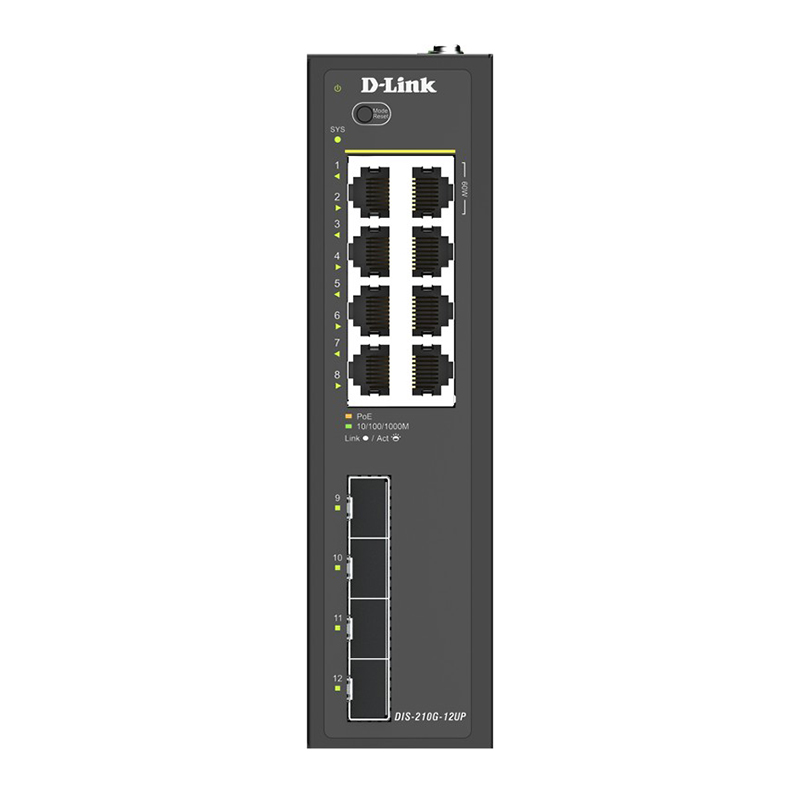

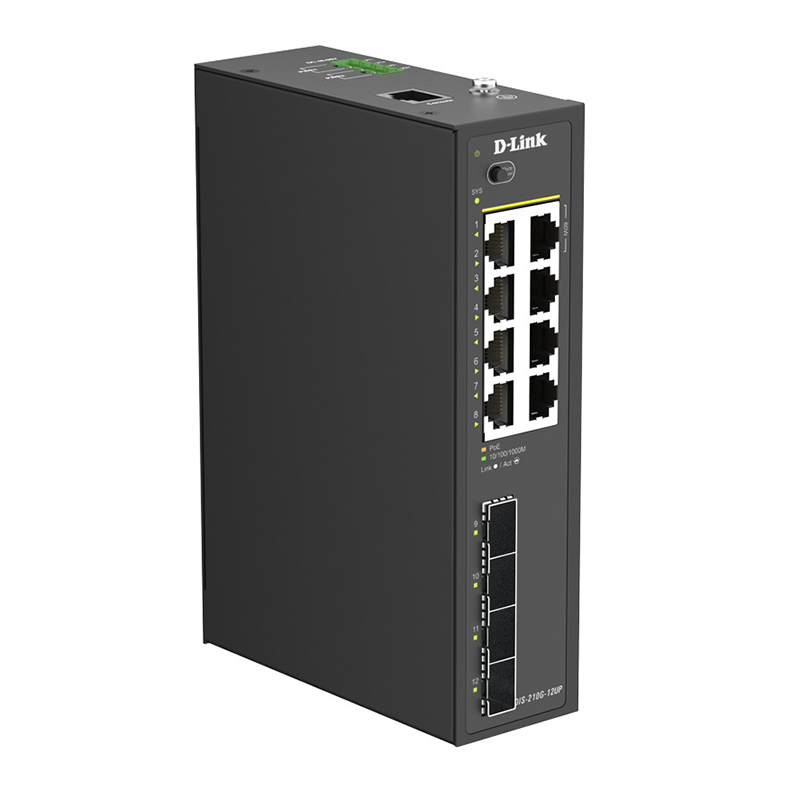

The D-Link DIS-210G-12UP is an industrial smart managed Gigabit switch designed for high-power PoE++ deployments. It features eight Gigabit Ethernet ports and four 1G SFP fibre uplinks, allowing flexible connectivity across copper and fibre networks. With a 240W PoE budget, it can power devices such as high-end IP cameras, wireless access points, and other PoE++ devices directly through the network, reducing the need for separate power supplies.

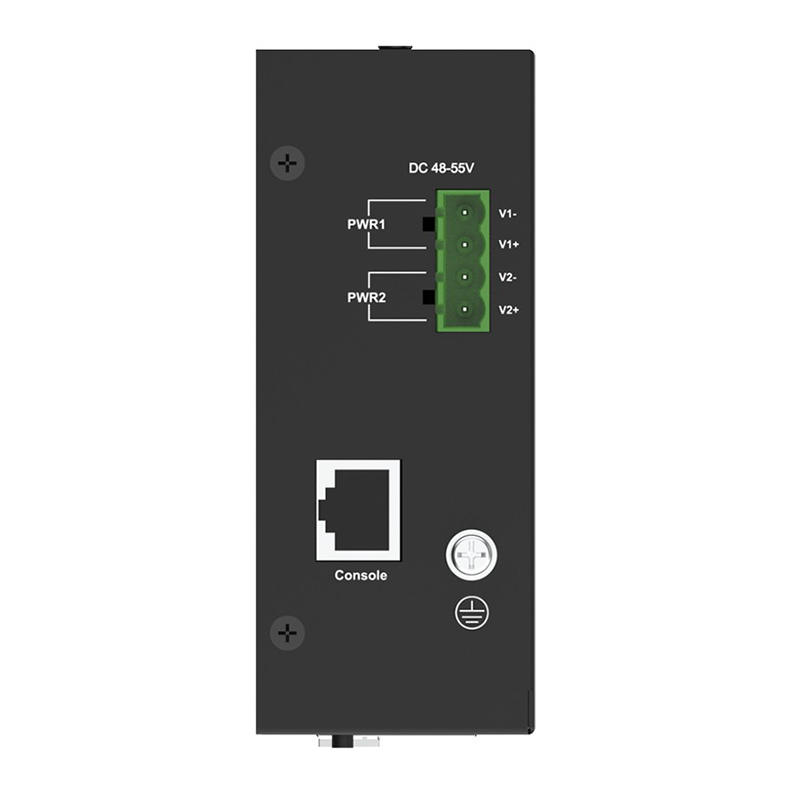

The DIS-210G-12UP supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimizes shutdown risk and maintains network performance.
The DIS-210G-12UP combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimize downtime, and maintain a consistent, high-quality service experience.
The DIS-210G-12UP is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
The DIS-210G-12UP is equipped with eight PoE ports compliant with IEEE 802.3af/at/bt standards, delivering both data and power through a single Ethernet cable. With a total power budget of up to 240W, ports 1 and 2 can supply up to 60W each, while the remaining ports supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
The DIS-210G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.
The DIS-210G Series features loopback detection and a web-based management interface to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switches to be controlled from any PC that is connected to the network.
The DIS-210G-06P, DIS-210G-12UP and DIS-210G-12P are PoE-ready switches with a total PoE budget of 120 W and 240 W, DIS-210G-06P and DIS-210G-12P capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The DIS-210G-12UP provides 6 PoE ports using 802.3af and 802.3at, and 2 ports using 802.3bt 60W PoE standards. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
The D-Link DIS-210G-12UP is an industrial smart managed Gigabit switch designed for high-power PoE++ deployments. It features eight Gigabit Ethernet ports and four 1G SFP fibre uplinks, allowing flexible connectivity across copper and fibre networks. With a 240W PoE budget, it can power devices such as high-end IP cameras, wireless access points, and other PoE++ devices directly through the network, reducing the need for separate power supplies.
The DIS-210G-12UP supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimizes shutdown risk and maintains network performance.
The DIS-210G-12UP combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimize downtime, and maintain a consistent, high-quality service experience.
The DIS-210G-12UP is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
The DIS-210G-12UP is equipped with eight PoE ports compliant with IEEE 802.3af/at/bt standards, delivering both data and power through a single Ethernet cable. With a total power budget of up to 240W, ports 1 and 2 can supply up to 60W each, while the remaining ports supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
The DIS-210G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.
The DIS-210G Series features loopback detection and a web-based management interface to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switches to be controlled from any PC that is connected to the network.
The DIS-210G-06P, DIS-210G-12UP and DIS-210G-12P are PoE-ready switches with a total PoE budget of 120 W and 240 W, DIS-210G-06P and DIS-210G-12P capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The DIS-210G-12UP provides 6 PoE ports using 802.3af and 802.3at, and 2 ports using 802.3bt 60W PoE standards. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
