| Part No: | FEDES-1100-24 |
| Manufacturer No: | DES-1100-24 |
| Delivery: | End of Life Product |
 |

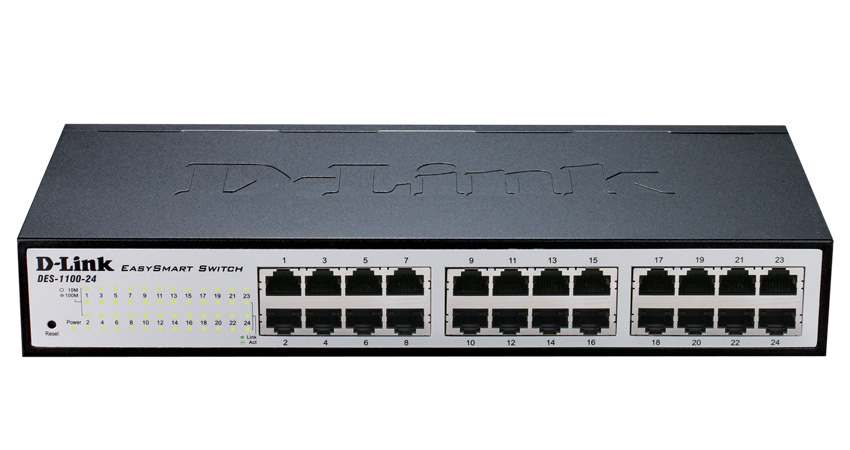

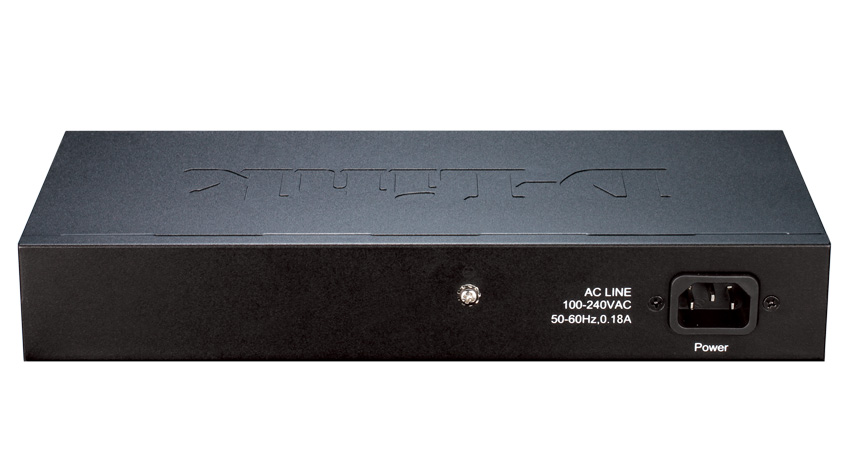

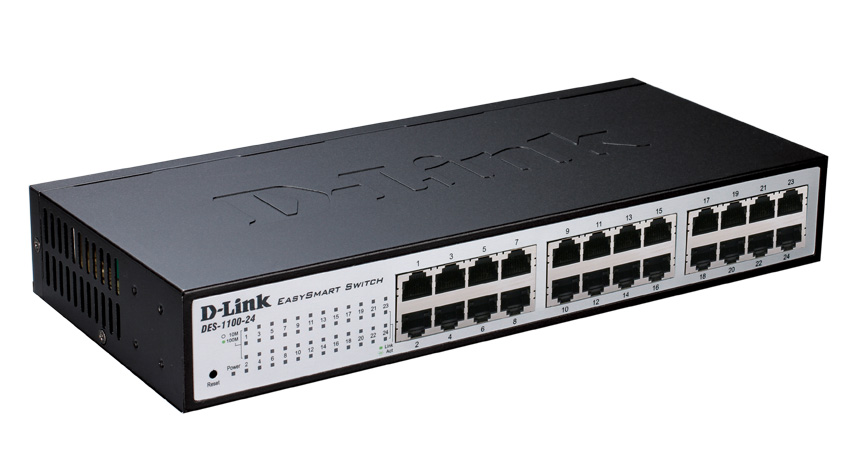

The DES-1100-24 is a 24 port 10/100Mbps Fast Ethernet Smart Managed Switch which features a full set of configurable functions that provide strong performance and scalability.With an easy-to-use management interface accessible via a PC utility or web browser, the DES-1100 Series helps customers to quickly and easily deploy their network. The DES-1100 Series provides a complete and affordable solution for small and medium businesses, and for communities without IT staff. They are suitable for Enterprise deployment, such as in branch offices and meeting rooms that require simple management.
DES-1100-24: 24 x 10/100 Mbps ports
Fanlesss
Switch management can be performed through a web management interface or through the SmartConsole Utility. The DES-1100 Series also supports Layer 2 features such as port mirroring, statistics, and IGMP snooping to optimise performance for multicast applications. All models are fanless and enclosed in a metal case.
Power Saving Performance
The DES-1100-24 offers best-in-class power savings compared to other models, saving 27.32% more energy than a conventional D-Link unmanaged switch. This gives you an energy-efficient switch that costs less to operate. Additionally, this allows the switches to run cooler, run silent, and have a longer lifespan.
Resilience/Performance Enhancement
Equipped with a complete line up of L2 features, these switches include IGMP snooping and port mirroring. Network maintenance features include loopback detection, which is used to detect loops created by a specific port and automatically shuts down the affected port. The DES-1100 Series also supports 802.1p Quality of Service (QoS) - a mechanism that allows real-time traffic classification into eight priority levels mapped to two queues.
Traffic & Security Features
The DES-1100 series supports 802.1Q VLAN and Port-based VLAN, for traffic segregation. The bandwidth control feature allows network administrators to define the throughput levels for each port in order to manage bandwidth. It also provides fine granularity to define the ingress/egress traffic limits down to 512 kbps segments. Storm control enables the detection of when broadcast, multicast, or unknown unicast traffic hits the definable threshold. The switch will start blocking or discarding packets which could otherwise flood the network. The blocked port will be activated only when the broadcast or multicast traffic falls below the defined threshold. Port mirroring helps administrators facilitate traffic diagnostics or track switch performance, and make alterations when necessary.
Versatile Management
The DES-1100 Series Fast Ethernet Smart Managed Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link Smart Managed Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Managed Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s local PC are displayed on screen for instant access. This allows for device discovery and configuration of basic switch settings such as password changes.
Switch Comparison
 |
DES-1100-16 | DES-1100-24 | DES-1210-08P | DES-1210-28 | DES-1210-28P |
| Form Factor | Rackmount / Desktop | Rackmount / Desktop | Desktop | Rackmount | Rackmount |
| Switching Capacity | 3.2 Gbps | 4.8 Gbps | 1.6 Gbps | 12.8 Gbps | 12.8 Gbps |
| 10/100 Copper (RJ-45) Ports | 16 | 24 | 8 | 24 | 24 |
| Uplink | N/A | N/A | N/A | 2 x 1000BASE-T 2 x Combo 10/100/1000 BASE-T / 100/1000SFP | 2 x 1000BASE-T 2 x Combo 10/100/1000 BASE-T / 100/1000SFP |
| PoE/PoE+ Ports | N/A | N/A | 8 | N/A | 24 |
| PoE Standard | N/A | N/A | 802.3af | N/A | 802.3af / 802.3at |
| PoE Budget | N/A | N/A | 72 W | N/A | 193 W |
| PoE Capable Ports | N/A | N/A | Port 1-8: up to 15.4 watts per port | N/A | Port 1-4: up to 15.4 or 30 watts per port Port 5-24: up to 15.4 watts per port |
| Dimensions | 280 x 125 x 44 mm | 280 x 125 x 44 mm | 190 x 120 x 38 mm | 330 x 180 x 44 mm | 440 x 210 x 44 mm |
| Buy | Buy | Buy | Buy | Buy |
