| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | CYPDU24005 |
| Manufacturer No: | PDU24005 |
| Delivery: | In Stock: Next Day |
 |

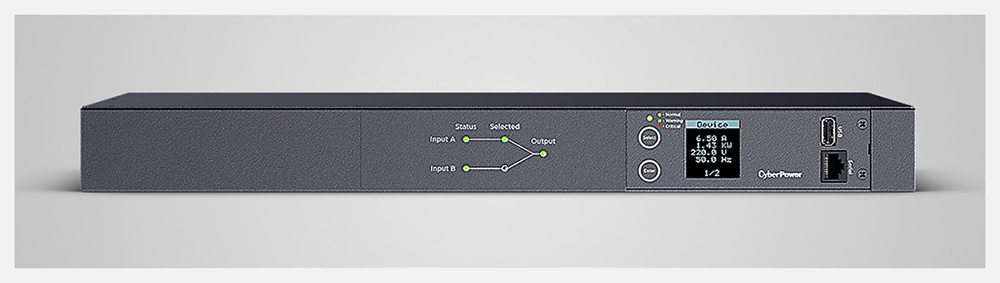

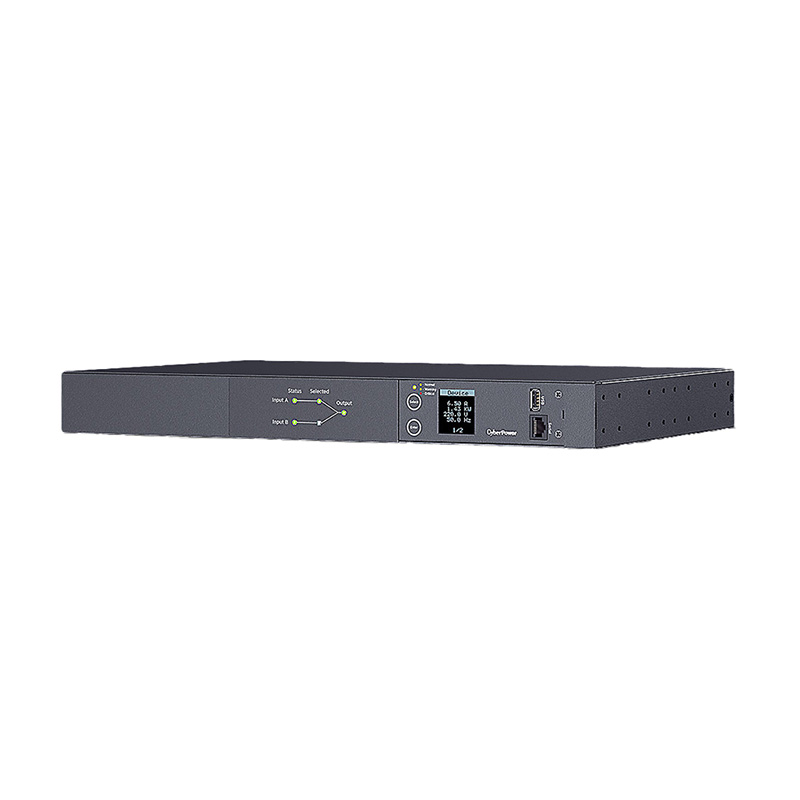

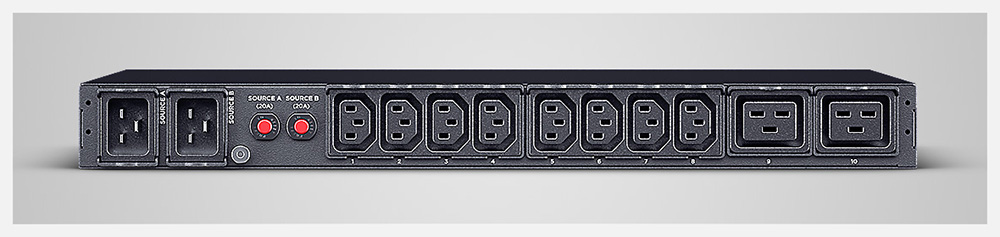

CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
Specifications
| Type | Voltage (Vac) | Rated Current (A) | Outlet Type | Installed Rack Height (U) |
| Metered | 200 ~ 240 | 16 | IEC C19 x 2 IEC C13 x 8 |
1 |
Main Features
Real-time Local Monitoring
Dual Inputs
Quick Transfer Time (Total < 10 ms)
Industrial-grade Metal Housing
Digital Real-time Load Display
Hot-swappable LCD Design
Firmware Upgrade via USB
Adjustable Mounting Brackets
IEC Receptacle Locking
User Configurable Color LCD
LED Status Indicator
User-upgradeable Firmware
Cord Retention Tray
Box Contents
1. PDU24005
2. User's Manual
3. Cord Retention Tray
4. Mounting Brackets
5. Cable Ties
6. Screw Kit
7. Power Cord
8. Serial Cable
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
