| Part No: | CM-MG21-HW-WW |
| Manufacturer No: | MG21-HW-WW |
| Delivery: | In Stock: 3-5 Days |
 |
Connectivity is critical for any organization that depends on reliable internet access in order to function. Wireless WAN connectivity options, such as cellular networks, serve as a reliable backup internet uplink in the event of a primary uplink failure.

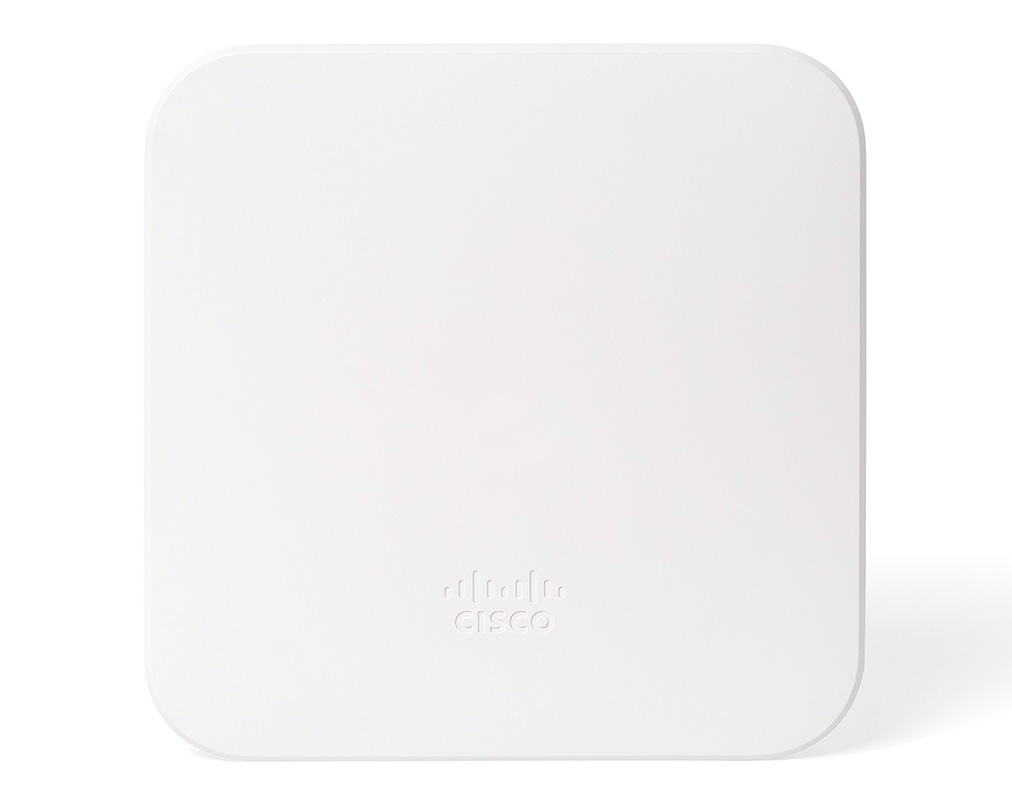

The MG21 cellular gateway simplifies the path to wireless WAN connectivity and makes cellular a viable uplink option for many networks. The MG21 acts as a gateway to cellular networks by converting LTE signal from a cellular provider to an Ethernet handoff, which can be used as an internet uplink for a variety of use-cases.
Highlights
300 Mbps CAT 6 LTE Integrated modem
Supports 2 separate downstream router connections
Small form factor
PoE or DC powered
IP67 rating
Management
Manageability from the Cisco Meraki dashboard
Self-configuring Cellular Gateway
Automatic firmware upgrades with scheduling control
Remote Diagnostics
Email, SMS and Mobile push notification alerts
Ping, traceroute, cable testing, and link failure detection with alerting
Combined event and configuration change logs with instant search
Remote packet capture
Specifications
| Model | MG21 |
| Dimensions (w x d x h) | 160.45 x 160.45 x 34.45mm |
| Weight (without accessories) | 497g |
| Power Supply | 12V/1A, 48-57V DC/0.35A |
| Power Load | 10 Watt Maximum (PoE 802.3AF) |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Humidity | 5% to 95% non-condensing |
| LAN interfaces | 2x GbE |
| WAN Interfaces | 1x CAT 6 LTE cellular modem |
| SIM Card Slot | Nano (4FF) |
