| Part No: | GLC-LX-SM-RGD-C-QTM |
| Manufacturer No: | GLC-LX-SM-RGD |
| Delivery: | In Stock: 2-3 Days |
 |

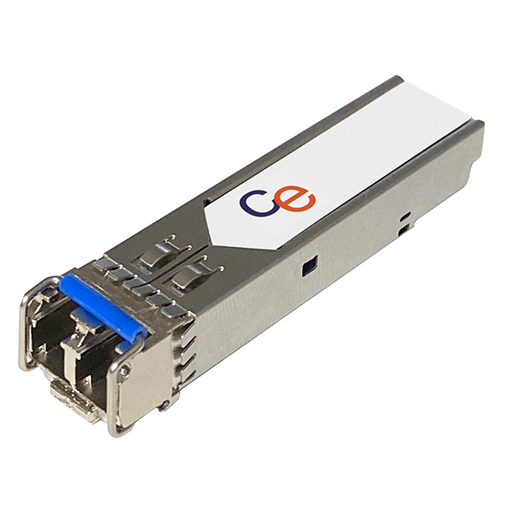

The CE GLC-LX-SM-RGD Cisco Compatible SFP transceiver provides 1000BASE-LX/LH Gigabit Ethernet connectivity over multimode or single-mode fibre. It operates at a 1310nm wavelength and supports distances up to 10km over single-mode fibre or 550m over supported multimode fibre. The module features a dual LC/PC connector, Digital Optical Monitoring and an industrial operating temperature range of -40 °C to 85 °C for compatible networking equipment.
This SFP transceiver uses 1000BASE-LX/LH technology at a 1310nm wavelength for Gigabit Ethernet fibre connections. It supports links of up to 10km over single-mode fibre and up to 550m over supported multimode fibre, providing flexibility for different network cabling installations.
The dual LC/PC connector provides separate optical paths for transmitting and receiving data. Its SFP form factor allows installation in compatible Cisco networking equipment that supports the required 1000BASE-LX/LH interface.
The transceiver supports both single-mode and multimode fibre applications. Cisco specifies a maximum distance of 10km over single-mode fibre and 550m over supported multimode fibre, allowing the module to be used across different fibre infrastructures.
Digital Optical Monitoring provides access to real-time transceiver information such as optical output and input power, temperature, laser bias current and supply voltage when supported by the host equipment.
The CE GLC-LX-SM-RGD Cisco Compatible SFP transceiver provides 1000BASE-LX/LH Gigabit Ethernet connectivity over multimode or single-mode fibre. It operates at a 1310nm wavelength and supports distances up to 10km over single-mode fibre or 550m over supported multimode fibre. The module features a dual LC/PC connector, Digital Optical Monitoring and an industrial operating temperature range of -40 °C to 85 °C for compatible networking equipment.
This SFP transceiver uses 1000BASE-LX/LH technology at a 1310nm wavelength for Gigabit Ethernet fibre connections. It supports links of up to 10km over single-mode fibre and up to 550m over supported multimode fibre, providing flexibility for different network cabling installations.
The dual LC/PC connector provides separate optical paths for transmitting and receiving data. Its SFP form factor allows installation in compatible Cisco networking equipment that supports the required 1000BASE-LX/LH interface.
The transceiver supports both single-mode and multimode fibre applications. Cisco specifies a maximum distance of 10km over single-mode fibre and 550m over supported multimode fibre, allowing the module to be used across different fibre infrastructures.
Digital Optical Monitoring provides access to real-time transceiver information such as optical output and input power, temperature, laser bias current and supply voltage when supported by the host equipment.
