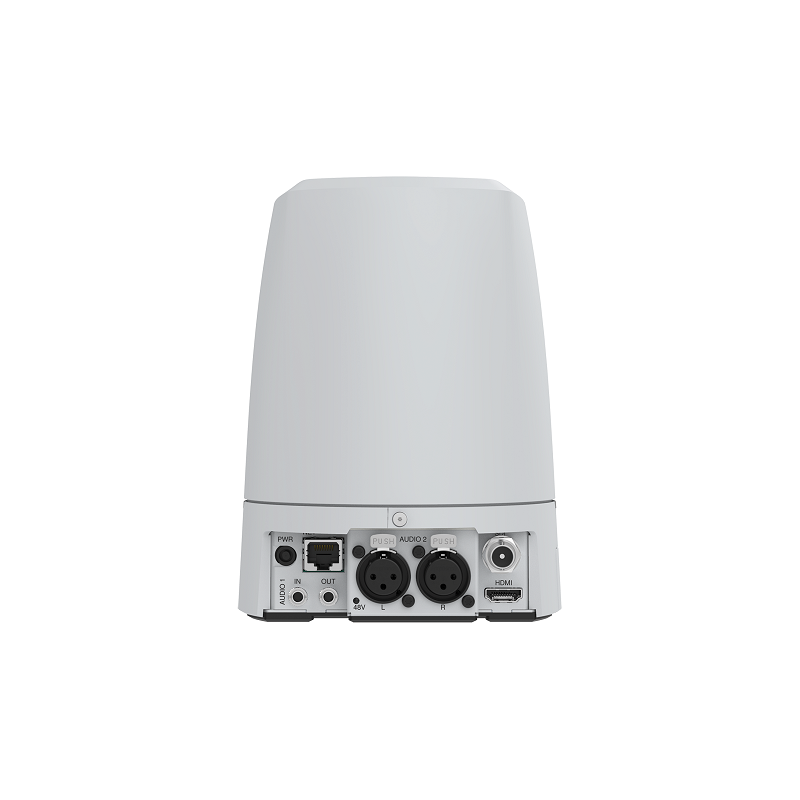

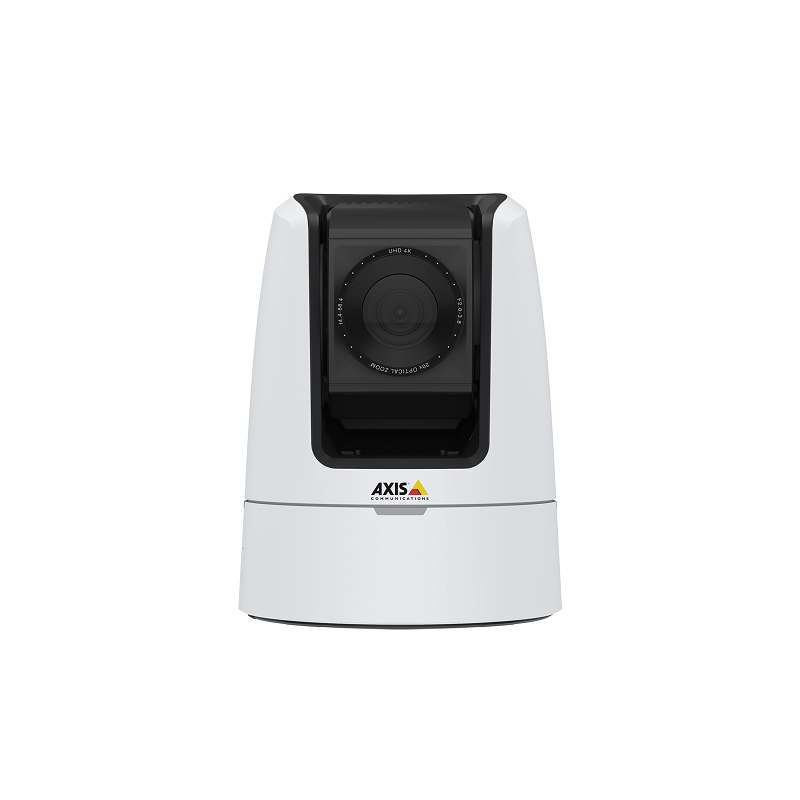

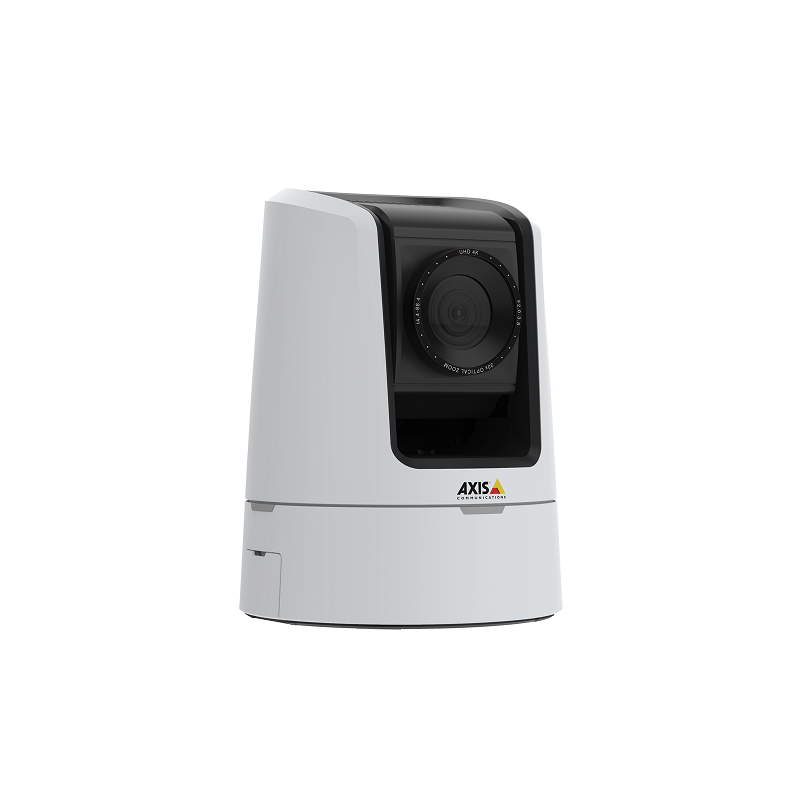

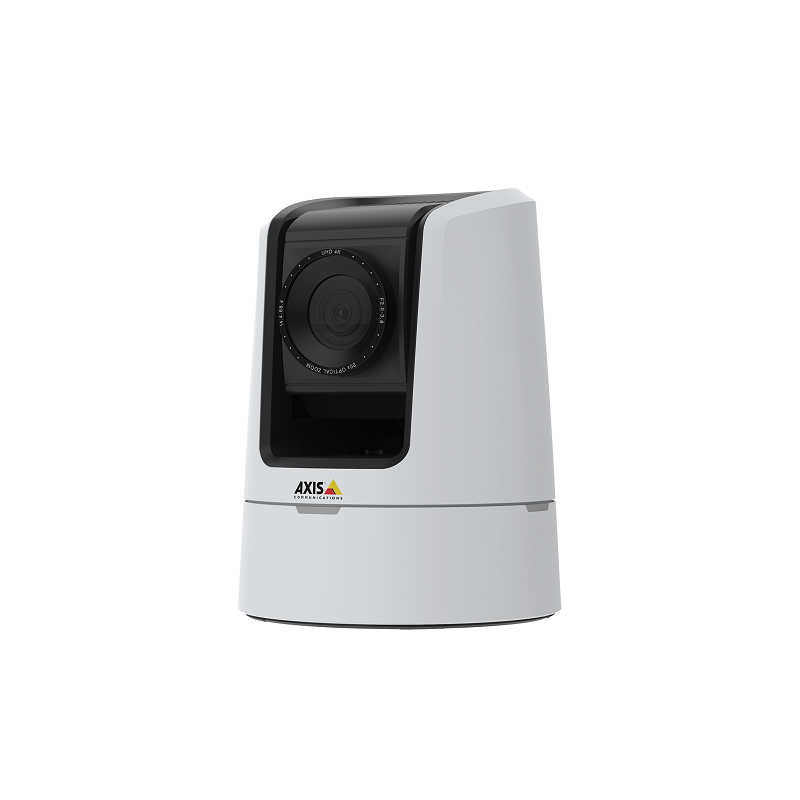

AXIS V5938 PTZ Network Camera
Broadcast-quality 4K PTZ camera
• UHD 4K at 30 fps and 20x zoom
• Broadcast-quality audio with XLR inputs
• VISCA and VISCA over IP support
• Camstreamer 3-month trial included
• 3G-SDI and HDMI outputs
Ideal for auditoriums, classrooms, indoor sports events, and places of worship, AXIS V5938 offers excellent video quality and broadcast-quality audio for professional webcasting.
AXIS V5938 provides excellent image quality in outstanding 4K resolution at 30 fps and 20x optical zoom for all the details. It offers stage mode and sports mode, providing better PTZ control for the operator in different scenarios. Featuring professional balanced XLR inputs with 48V phantom power, it can be used with studio-grade microphones and 3,5 mm input/output for flexibility. Additionally, the powerful chipset allows for analytics to run directly on the camera.
This highly versatile PTZ camera includes both HDMI and 3G-SDI outputs, allowing you to connect to most professional video switchers. With a VISCA RS-232 based control system, the camera can easily be integrated with your existing AV installations. And, with VISCA over IP it allows for remote control of multiple cameras via a LAN connection. Furthermore, for simple or mobile installations, the included 3-month Camstreamer trial license lets you live stream to streaming platforms such as YouTube and Facebook Live directly from the camera over an IP network. You can also use any major video management software or just connect it via a web browser.
AXIS V5938 features Axis Zipstream technology with H.264 and H.265 to preserve all the important details while significantly reducing bandwidth and storage requirements. It’s packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Make your network camera solution more intelligent with powerful analytics and functionality.
| Performance | |
| Preset points | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Fog proof | Yes |
| Day/night mode | Yes |
| Design | |
| Fog proof | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.1 lx |
| Viewing angle, horizontal | 70.2° |
| Viewing angle, vertical | 39.5° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 90 °/sec |
| Pan range | 170 - 170° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/10000 - 1 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan | Yes |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 3.8 |
| Auto focus | Yes |
| Minimum aperture number | 2 |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 12x |
| Focal length range | 4.4 - 88 mm |
| Video | |
| Image quality adjustment | Brightness, Sharpness |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported video modes | 2160p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Image stabilizer | Yes |
| Back Light Compensation (BLC) | Yes |
| Video streaming | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 20 W |
| Power consumption (typical) | 17.5 W |
| DC-in jack | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Full specification and details can be found in the Product Datasheet PDF file
