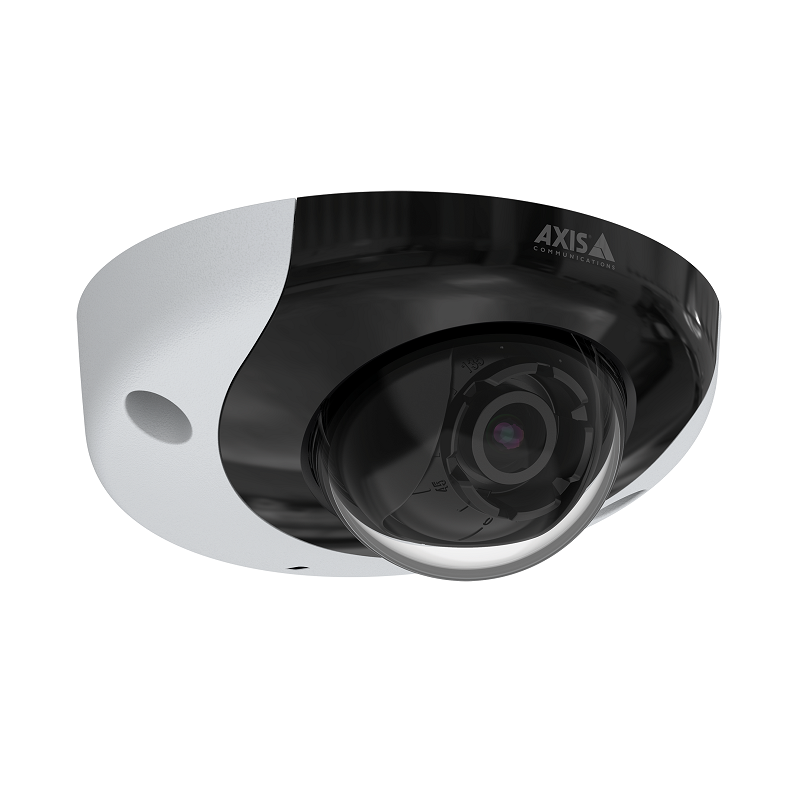

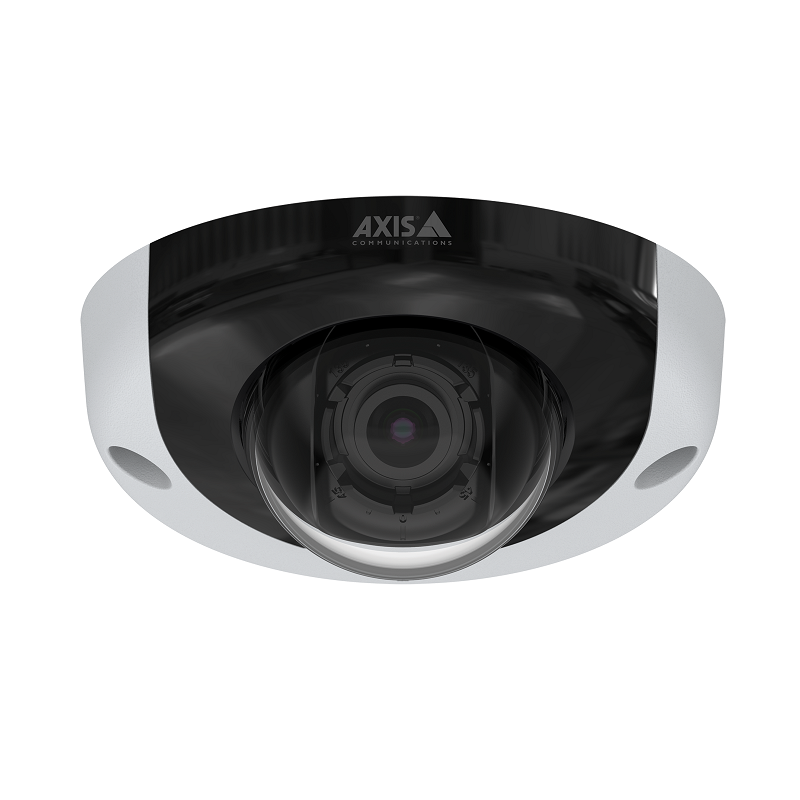

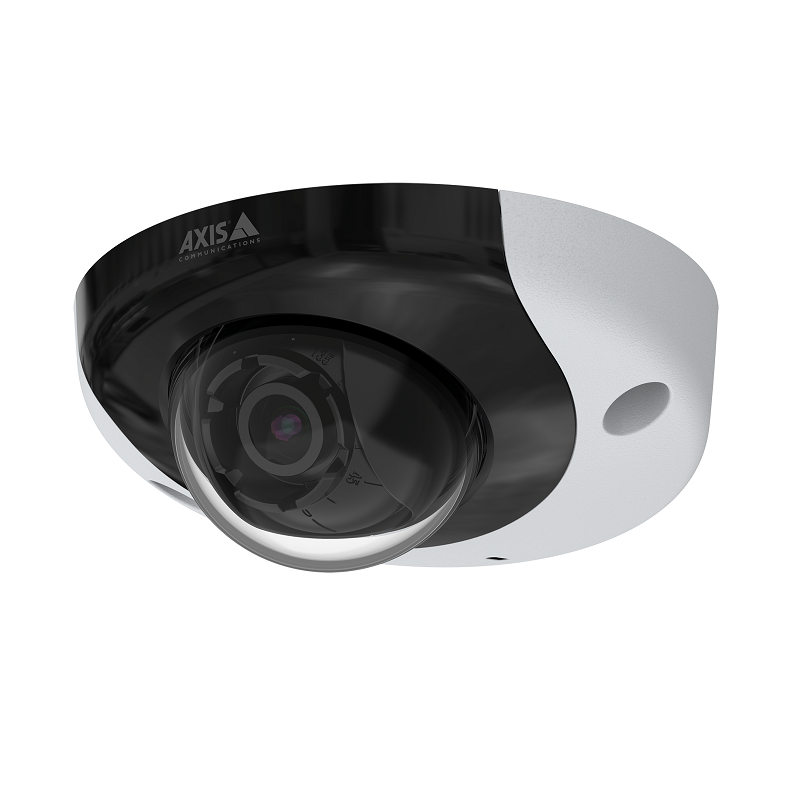

AXIS P3935-LR Network Camera
Best-in-class dome with IR for advanced onboard surveillance
• Vandal-resistant, metal casing
• Complies with EN50155, EN45545, and NFPA 130
• Lightfinder and Forensic WDR
• Invisible IR LEDs, built-in microphone, and EIS
• Enhanced security features

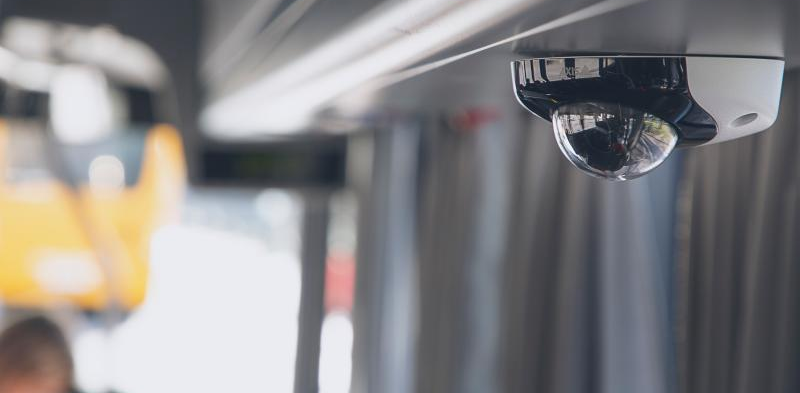

AXIS P3935-LR is specially designed for surveillance onboard vehicles and rolling stock such as trains, buses, and emergency vehicles. This robust, vandal-resistant camera offers improved imaging, IR and microphone, enhanced security features, and extended capabilities for analytics.
AXIS P3935-LR is packed with useful features ideal for onboard surveillance and changing light conditions. It offers Axis Forensic WDR for high-quality images even when there’s both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. This is particularly useful when a vehicle goes into a tunnel or under a bridge. And thanks to a built-in invisible IR LEDs (940 nm), it can be used for video surveillance in complete darkness that won’t distract the driver or passengers. Furthermore, it can be mounted forward-facing on the vehicle’s dashboard and record everything from the driver’s perspective, ideal for police vehicles and ambulances. Plus, in this scenario, electronic image stabilization (EIS) ensures stable video when the camera is subject to vibrations, perfect for capturing scenes outside the vehicle.
Specifically designed for onboard surveillance, AXIS P3935-LR complies with transportation industry regulations including EN50155, EN45545, and NFPA 130. This robust dome camera comes in an IP66-, IP67-rated metal casing that protects it against water, corrosion, and dust. The casing is also vandal resistant with IK10 rating. For added peace of mind, it offers block view detection, so you’re informed if the camera view is blocked by objects or spray paint, or if the camera is out of focus. With product versions including M12 and RJ45 connectors, it can be easily installed in any kind of vehicle. AXIS P3935-LR has powerful capacity for analytics so it’s easy to add whatever analytics you need. Furthermore, it comes with a built-in microphone and external microphone input, allowing for audio surveillance and detection.
AXIS P3935-LR is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensure only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
A whitepaper can be found in the Whitepaper PDF file
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Capture color images in low-light conditions.
Minimize the impact of vibration and shaking.
Make your network camera solution more intelligent with powerful analytics and functionality.
For intruction detection
For detecting loiterers
Smart motion detection
Performance | |
Preset points | Yes |
PTZ modes | Digital PTZ |
Fog proof | Yes |
Type | IP security camera |
PTZ control | Yes |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Design | |
IK code | IK10 |
Fog proof | Yes |
Form factor | Dome |
Product colour | Black, White |
Mounting type | Ceiling |
IP Rating | IP66, IP67 |
Housing material | Aluminium |
Camera | |
Minimum illumination | 0.01 lx |
Viewing angle, horizontal | 110° |
Viewing angle, vertical | 62° |
Tilt angle range | 15 - 90° |
Pan range | -30 - 30° |
Angle of rotation | 350° |
Camera pan control | Yes |
Camera tilt control | Yes |
Progressive scan | Yes |
Image sensor | |
Sensor type | CMOS |
Progressive scan | Yes |
Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Number of sensors | 1 |
Lens system | |
Number of lenses | 1 |
Fixed focal length | 2.8 mm |
Video | |
Image quality adjustment | Brightness, Contrast, Sharpness |
Text caption overlay | Yes |
Privacy masking | Yes |
Image stabilizer | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
Maximum resolution | 1920 x 1080 pixels |
Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080) |
Frame rate | 45 fps |
Video streaming | Yes |
Total megapixels | 2 MP |
Audio | |
Sample rate | 48 kHz |
Audio system | 1-way |
Audio formats supported | AAC-LC, G.711, LPCM, PCM |
Network | |
Ethernet interface type | Fast Ethernet |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Quality of Service (QoS) support | Yes |
Number of users | 8 user(s) |
Streaming method | Multicast |
Ethernet LAN | Yes |
Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
Storage | |
Card reader integrated | Yes |
Flash memory | 512 MB |
Ports & interfaces | |
Microphone in | Yes |
Connectivity technology | Wired |
Security | |
Video motion detection | Yes |
IP address filtering | Yes |
HTTPS encryption | Yes |
Active tampering alarm | Yes |
Password protection | Yes |
Power | |
Power source type | PoE |
Power consumption (max) | 11.8 W |
Power consumption (typical) | 6.6 W |
Operational conditions | |
Operating temperature (T-T) | -40 - 55 °C |
Storage temperature (T-T) | -40 - 65 °C |
Operating relative humidity (H-H) | 10 - 95% |
Full specification and details can be found in the Product Datasheet PDF file
