| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE01572-001 |
| Manufacturer No: | 01572-001 |
| Delivery: | In Stock: 2-3 Weeks |
 |
ExCam XF Q1785 Explosion-Protected Network Camera
Zone-certified fixed camera with 32x zoom
• Certified for ATEX, IECEx, EAC Ex, IA; Zones 1, 2, 21 and 22; Groups IIC and IIIC?
• Cost-efficient installation with PoE
• 2 MP, HDTV 1080p at up to 60 fps
• -60 °C to 60 °C (-76 °F to 140 °F) operating temperature
• Electronic image stabilization

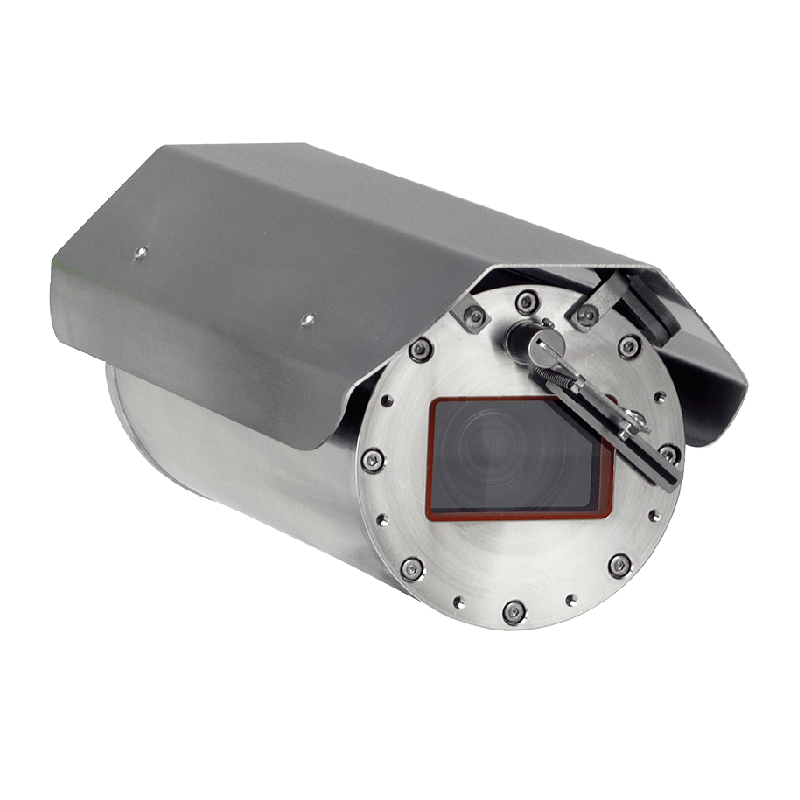

ExCam XF Q1785 Explosion-Protected Network Camera is a high-performance, fixed box network camera with outstanding 32x optical zoom in an explosion-protected stainless-steel housing. ExCam XF Q1785 has also been developed to withstand the typical shock and vibration associated with hazardous environments. Feature highly appreciate it when monitoring conveyor belts.
Like all our explosion-protected cameras, you can use ExCam XF Q1785 for visual verification of safety information from your sensor system. Plus, you can incorporate applications that provide man-down alarms, hardhat detection, and more.

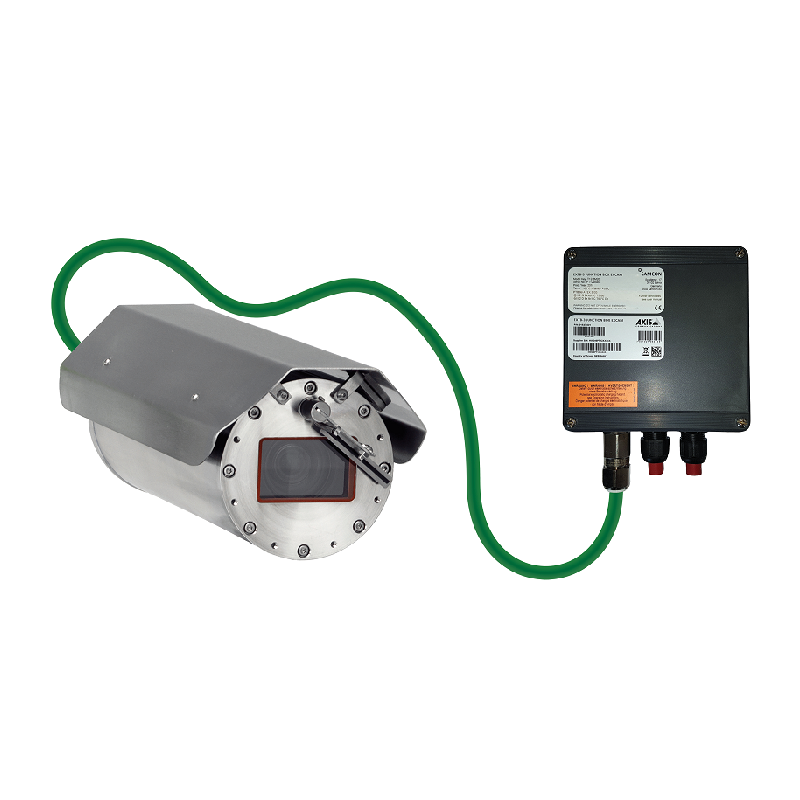

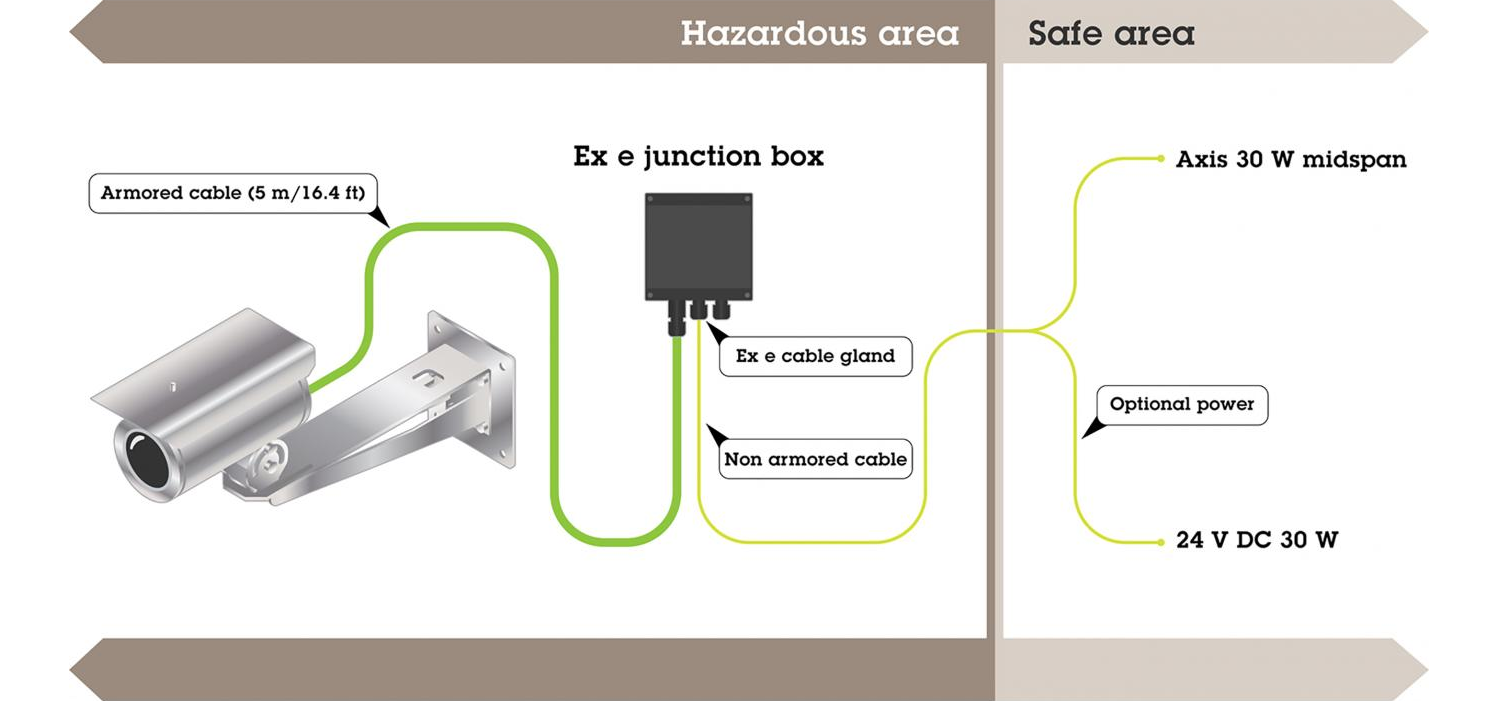

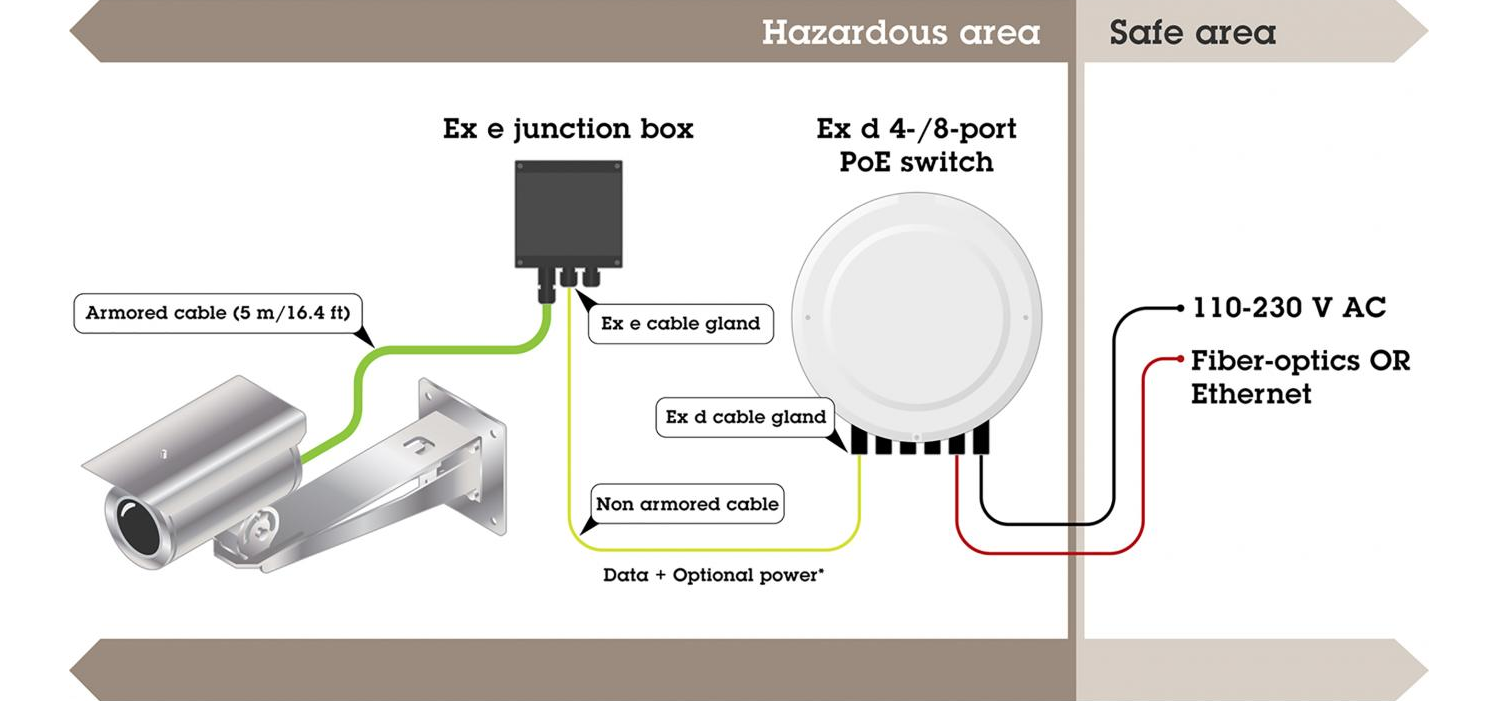

ExCam XF Q1785 is certified to international standards to ensure safe operation in explosion prone applications. With built-in PoE support, a pre-connected 5-meters (16 ft) armored cable, and an Ex e junction box, the ExCam XF Q1785 is easy to install and use, and makes it simple to locate and repair any problems that might arise.

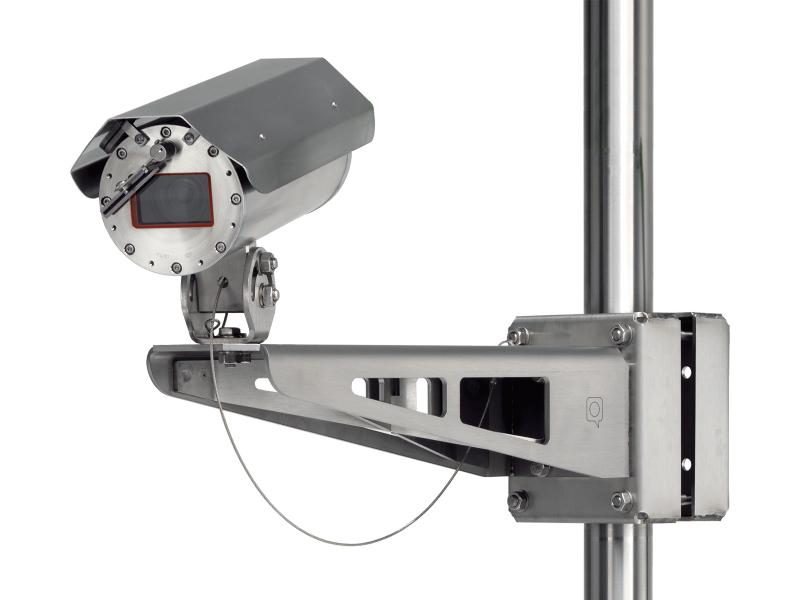

This tough network camera is specifically designed for installation in potentially hazardous environments and can withstand temperatures between -60 °C to 60 °C (-76 °F to 140 °F). ExCam XF Q1785 also supports electronic image stabilization (EIS), which greatly improves video quality in situations where the camera is subject to vibration such as gusty winds or passing vehicles. Furthermore, EIS allows you to install your camera out of reach on high walls, poles or ceilings with minimum impact on image quality.
ExCam XF Q1785 is designed for 24/7 long-range surveillance and provides high resolution footage even under extreme lighting conditions. The camera’s 32x optical zoom, in combination with HDTV 1080p resolution, delivers superb zoomed-in views of people and objects of interest. This allows you to install the camera far away from the object and still capture all the details. It’s got Forensic WDR for clarity even when there’s both dark and light areas in the scene and Lightfinder for high-quality – color – images recorded in near darkness. And Zipstream preserves the forensic detail you need, while lowering bandwidth and storage requirements by 50% or more.
Go ahead and place ExCam Q1785 almost anywhere in relation to your targeted surveillance area. It comes with AXIS Guard Suite pre-installed to help reduce false alarms, and thanks to barrel distortion correction you can rely on great image quality, even at the edges of the image.
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Capture color images in low-light conditions.
Minimize the impact of vibration and shaking.
Make your network camera solution more intelligent with powerful analytics and functionality.
For intrusion detection
For detecting loiterers
Smart motion detection
| Performance | |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Plug and Play | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Design | |
| Form factor | Box |
| Product colour | Stainless steel |
| Mounting type | Pole clamp |
| International Protection (IP) code | IP68 |
| Protection features | Corrosion resistant, Explosion proof |
| Housing material | Stainless steel |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0.03 lx |
| Camera shutter speed | 1/66500 - 1 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4 |
| Auto focus | Yes |
| Zoom capability | Yes |
| Minimum aperture number | 1.4 |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 137 mm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Total megapixels | 2 MP |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 512 MB |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 40 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power consumption (typical) | 7.7 W |
| Operational conditions | |
| Operating temperature (T-T) | -60 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
Full specification and details can be found in the Product Datasheet PDF file
