Ex Connection Rail 8-port PoE
PoE switch for hazardous areas
• Eight 30 W PoE ports
• Extends the temperature range of the camera
• Certified for ATEX and IECEx Ex d IIC/IIIC
• SFP port for fiber
• Resistant to corrosion
ExConnection Rail 8-Port PoE is a high performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras over long distances. The network connection can be realized via optical fiber or copper-bound Ethernet and is equipped with two SFP ports for fiber.

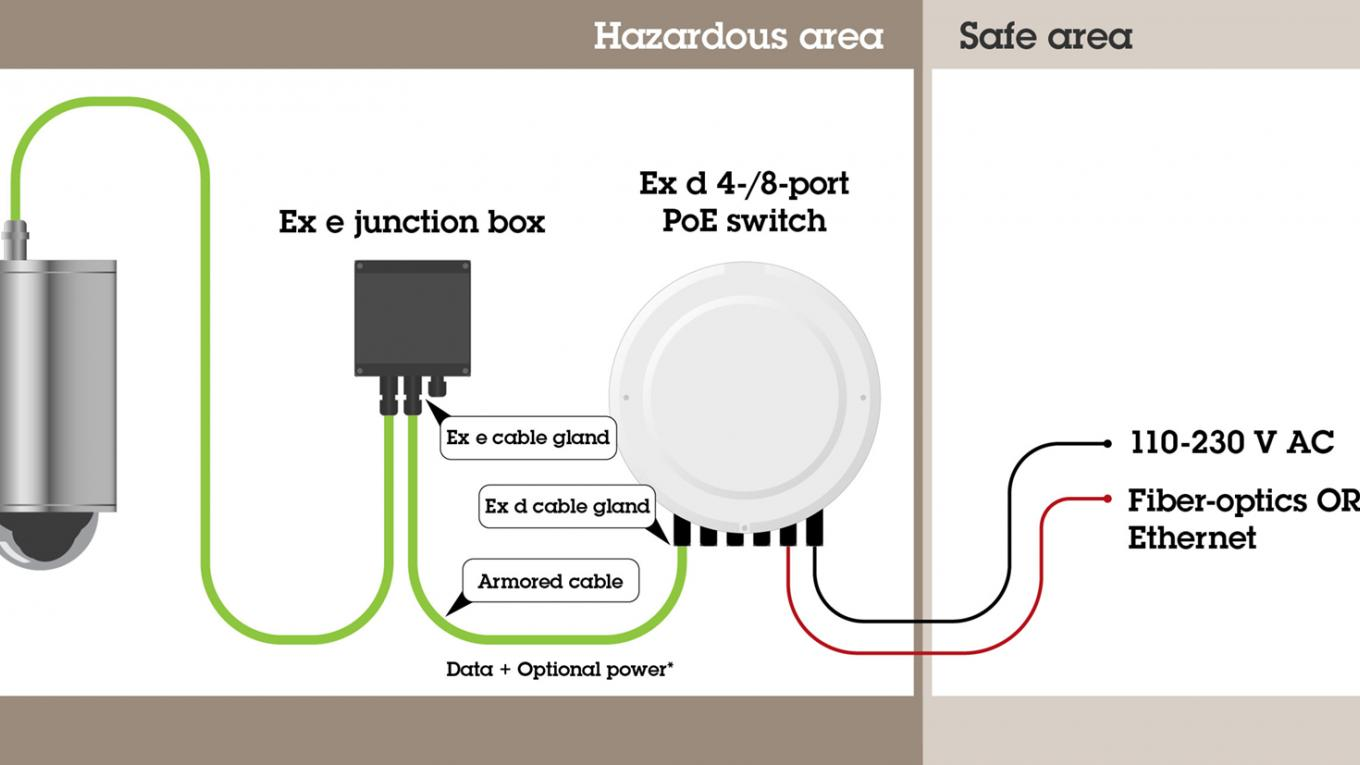

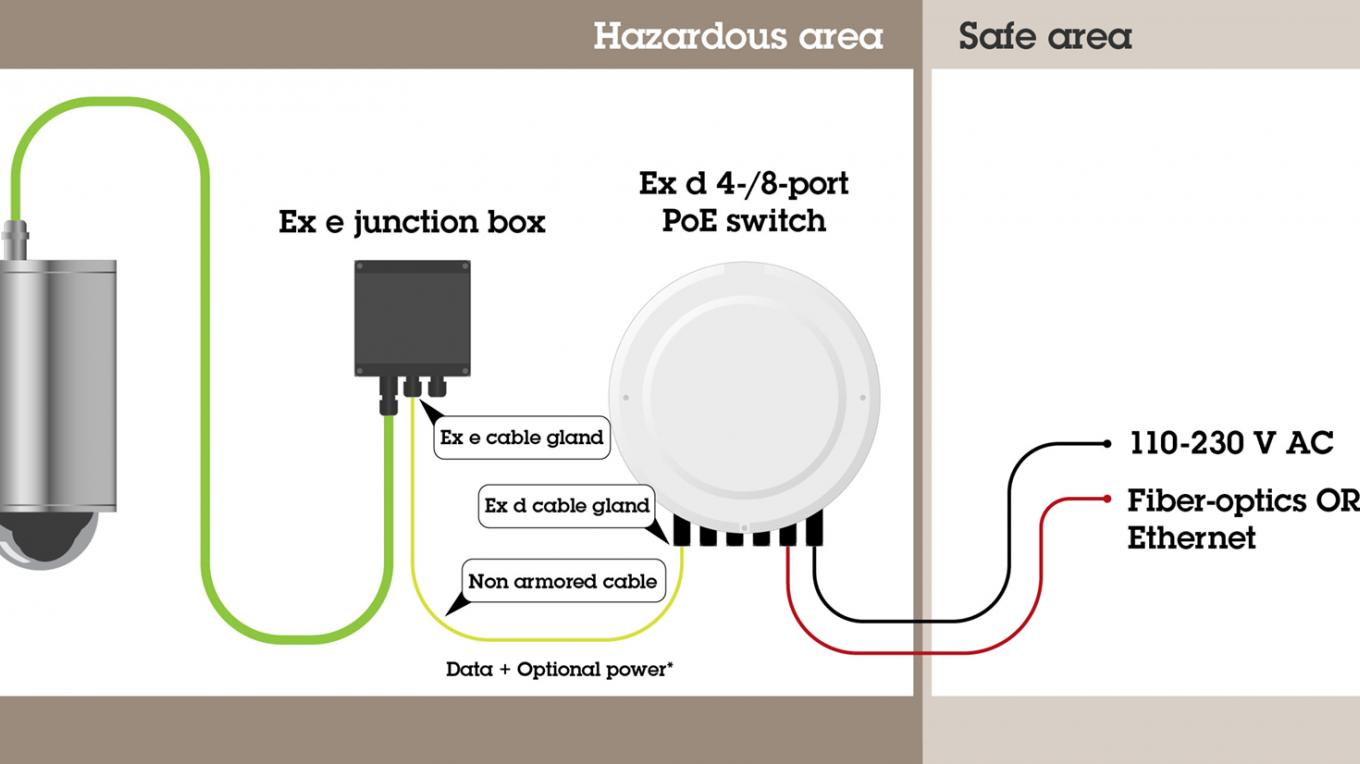

The power supply provides additional power to the camera’s heater to extend the temperature range. (See the schematics below for *Optional power).
The Ex d-rated enclosure is made of seawater-resistant copper-free aluminum and is ready for wall mounting.
Ports & interfaces | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-SX, 1000BASE-TX |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Fiber ports quantity | 1 |
Fiber optic connector | LC |
Network | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-SX, 1000BASE-TX |
Networking standards | IEEE 802.3at |
10G support | No |
Design | |
Wall mountable | Yes |
International Protection (IP) code | IP66 |
Product colour | White |
Housing material | Aluminium |
Power | |
AC input voltage | 100 - 240 V |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) power per port | 30 W |
Operational conditions | |
Storage temperature (T-T) | -60 - 50 °C |
Operating temperature (T-T) | -60 - 50 °C |
Operating relative humidity (H-H) | 10 - 100 % |
