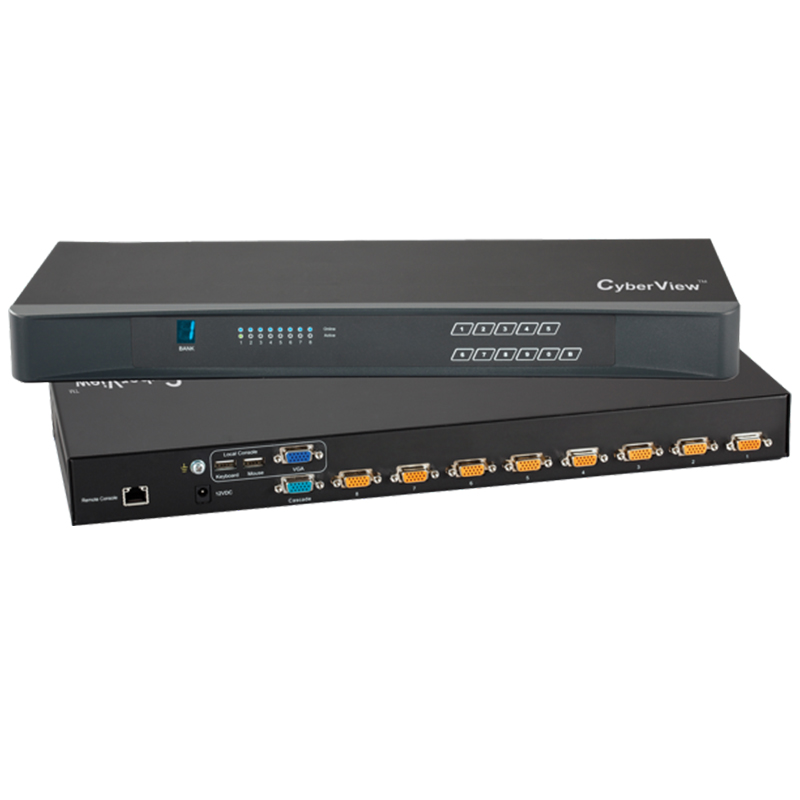

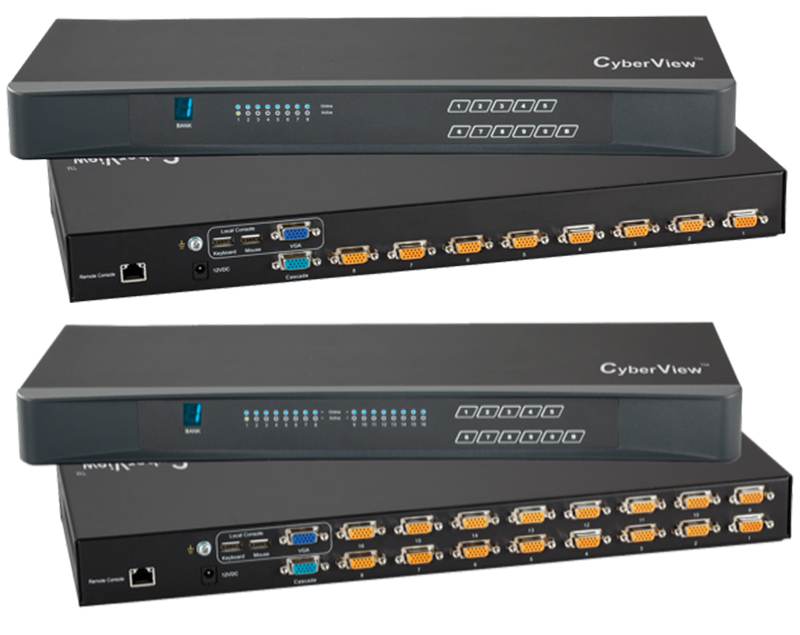

Austin Hughes 8/16 Port CyberView PS2/USB Two Console KVM Switch

Austin Hughes 8/16 Port CyberView PS2/USB Two Console KVM Switch with 1 Local User + 1 Extended Remote User

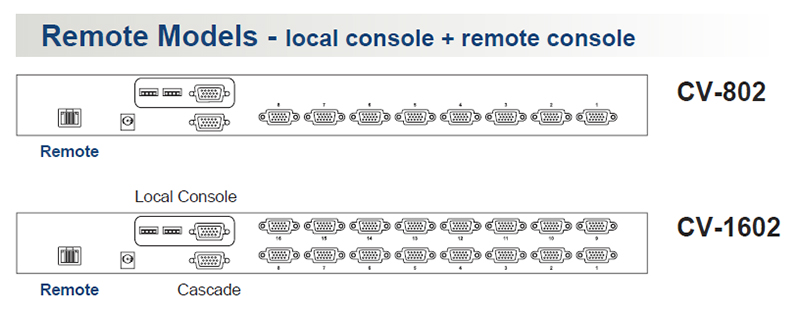

The CyberView CV-802 / CV-1602 is a 8 / 16 port DB-15 KVM Switch for VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles - 1 x local, 1 x remote extended.

Cost Efficient PS/2 DB-15 Two Console KVM
Austin Hughes provides its entry level, highly cost efficient 8 or 16 port Two Console KVM switches based on the DB-15 interface. Using a specially designed 3 in one KVM cable with PS/2 fly lead plugs - allows a user to cost effectively specify the switch to match the exact server configurations.

In this Two console variant of these KVM switches Austin Hughes offer multiplatform switches that allow PS/2 and USB to be used (without conversion) on the same switch platform simply by selection of the low cost cable type. This is feature often only found on higher cost Cat5 switches where a dongle must be used to convert the interface. But by using these PS/2 or USB KVM switchs it allows you to connect up to 16 servers on one switch, in addition to this the KVM switch can be 'stacked' to 8 levels providing access to 128 servers.

Secure Remote Access
The second console allows a user to work securely via a remote Keyboard, monitor and mouse over a Cat5 link up to 300m away from the installed switch / servers. This plug and play technology requires no software to be installed on the servers but provides seamless secure access over Cat5 4 pair copper cable to all switch ports allowing access to your servers even if the Ethernet / WAN network has failed or is unavailable.

Two Console DB-15 KVM Benefits

• Enhanced rear cable management using 3 in 1 KVM cables
• Secure remote access over 300m (1000ft) of Cat5

Switch Features and Options

• Enhanced data centre security with a second user or console up to 300m from the installed switch / server
• Multi lingual on screen display menu
• OSD hot key control

Key Features:

• DB-15 KVM with 8 or 16 ports in 1U
• Local console & KVM ports support resolution up to 1920 x 1200
• Port switching via OSD, front button & keyboard hotkeys
• Multi lingual OSD menu
• Hot pluggable, no software or drivers required
• Multi-platform for PC, server, Blade Server, MAC
• Cascade levels up to 8 KVM switches
• TAA Compliant
• DC power : 12V / 24V / 48V / 125V / 250V
• 2 Years Standard Warranty - Expandable up to 5 years

Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.

Package Contents:

• 1 x CV-802 / CV-1602 KVM Switch
• 1 x 1U, 19" mounting kit w/ brackets & screws
• 1 x Power adapter & Power cord ( for KVM ) * DC power excludes AC power cord.
• 1 x KVM receiver for extended console
• 1 x Power adapter & Power cord ( for receiver )
• 1 x CE-6 6ft Combo KVM cable for receiver box

*For complete specifications see the documentation tab above
