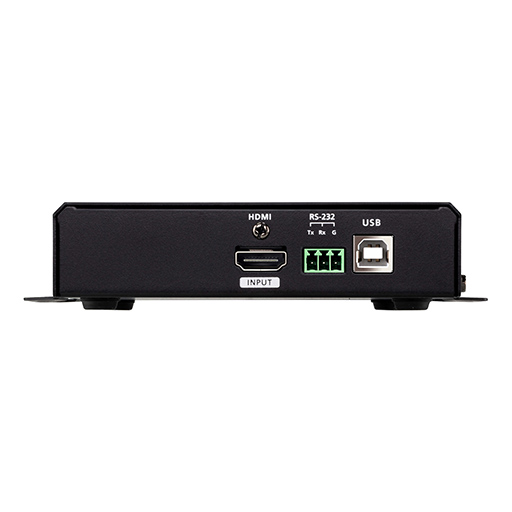

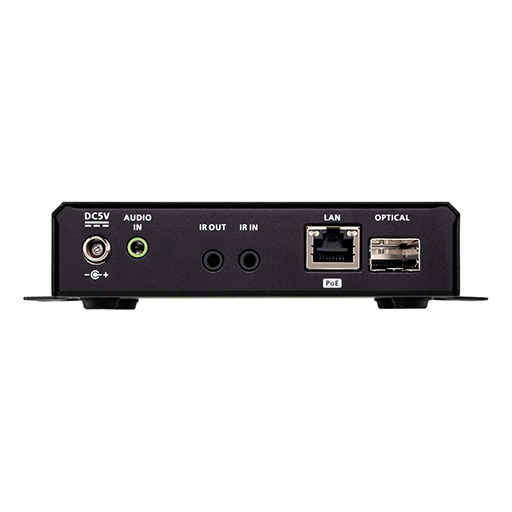

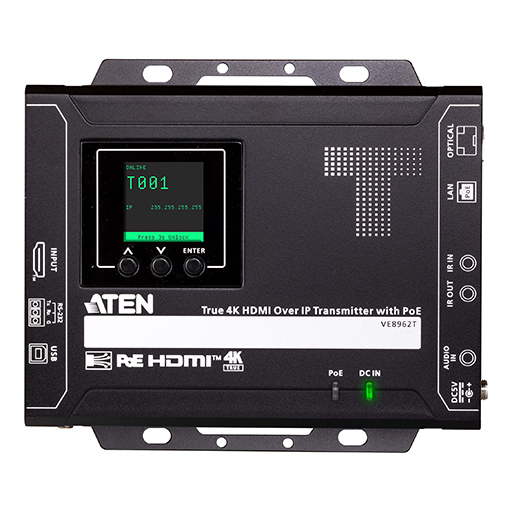

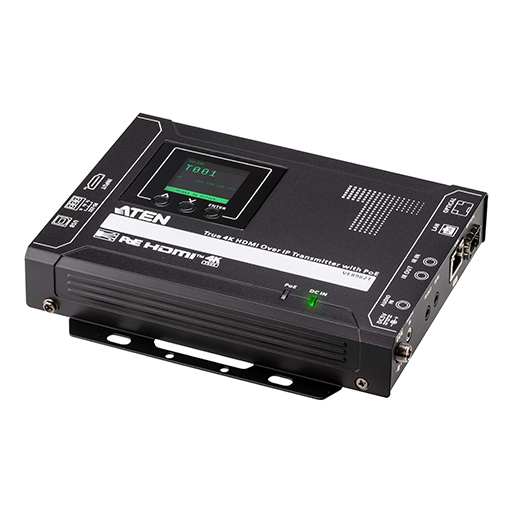

Aten VE8962T True 4K HDMI over IP Transmitter with PoE

The VE8962 True 4K HDMI-over-IP Video Extender is a high-performance AV distribution platform engineered for ultra-low latency signal delivery across Ethernet and fiber networks. Designed for scalable digital signage, control rooms, and large multi-display environments, it combines video, audio, USB, RS-232, and IR transmission into a unified IP-based architecture. With redundancy systems, web-based management, and flexible deployment modes, it delivers a resilient and future-ready AV over IP solution for demanding professional installations.

Key Features of VE8962

• True 4K (4096 × 2160 @ 60Hz 4:4:4) over IP with ultra-low latency performance
• Flexible AV transmission via HDMI, audio, USB, RS-232, and IR integration
• Supports Ethernet and fiber optic connectivity for long-distance deployment up to 10 km
• Scalable architecture supporting point-to-point and multipoint-to-multipoint AV networks
• Video wall support for up to 80 displays (8×10 configuration) with portrait or landscape orientation
• Daisy-chain support for up to 30 receiver units without additional network switches
• Power redundancy via PoE and DC input for uninterrupted system uptime
• Over IP redundancy using copper or fiber pathways for failover resilience
• Built-in scaler with EDID Expert for optimal resolution and display compatibility
• Advanced audio embedding and de-embedding with Audio Matrix routing support
• USB 2.0 peripheral support for keyboards, mice, storage devices, and control interfaces
• Multiple control methods including web GUI, RS-232, IR, Telnet, SSH, and pushbuttons
• Local HDMI input on receiver for real-time on-site content switching
• Centralized web GUI with drag-and-drop layout management and visual configuration tools
• Scheduling management for automated playback and time-based content distribution
• AES-256 SRTP encryption and HTTPS security for protected AV transmission

Network & System Redundancy

The VE8962 is engineered for continuous operation with dual-layer resilience. It supports automatic failover between PoE and DC power sources while also offering dual-path AV transmission over copper and fiber networks. Combined with operation-level redundancy through multiple control interfaces, it ensures stable performance in mission-critical environments.

Scalable AV over IP Architecture

Designed for expansion without infrastructure constraints, the system supports large-scale AV deployments across hundreds of endpoints. Whether used in point-to-point or fully distributed matrix configurations, the VE8962 enables seamless scaling while maintaining consistent signal quality and centralized management control.

Video Wall & Multi-Display Management

The platform supports advanced video wall configurations of up to 80 displays, enabling flexible layouts across mixed orientations. Operators can drag, drop, and reassign content sources through the web GUI, ensuring intuitive control over complex multi-screen environments in real time.

Audio & Signal Flexibility

With support for both embedded and de-embedded audio workflows, the VE8962 allows audio streams to be integrated into HDMI or separated for independent routing. Combined with HDMI video and USB data transmission, it supports versatile AV system designs across mixed hardware environments.

Control, Management & Scheduling

A fully browser-based management system enables centralized control without additional software or servers. Users can configure layouts, schedule playback events, monitor device status, and manage multi-display environments through an intuitive graphical interface designed for operational efficiency.

Security & Compliance

Built for secure enterprise deployment, the VE8962 integrates AES-256 encryption with SRTP transport and HTTPS communication. These protections ensure that audiovisual streams and control data remain secure across networked AV infrastructures.

What's in the Box

• 1 x VE8962T True 4K HDMI over IP Transmitter with PoE
• 1 x Terminal Block
• 1 x User Instructions

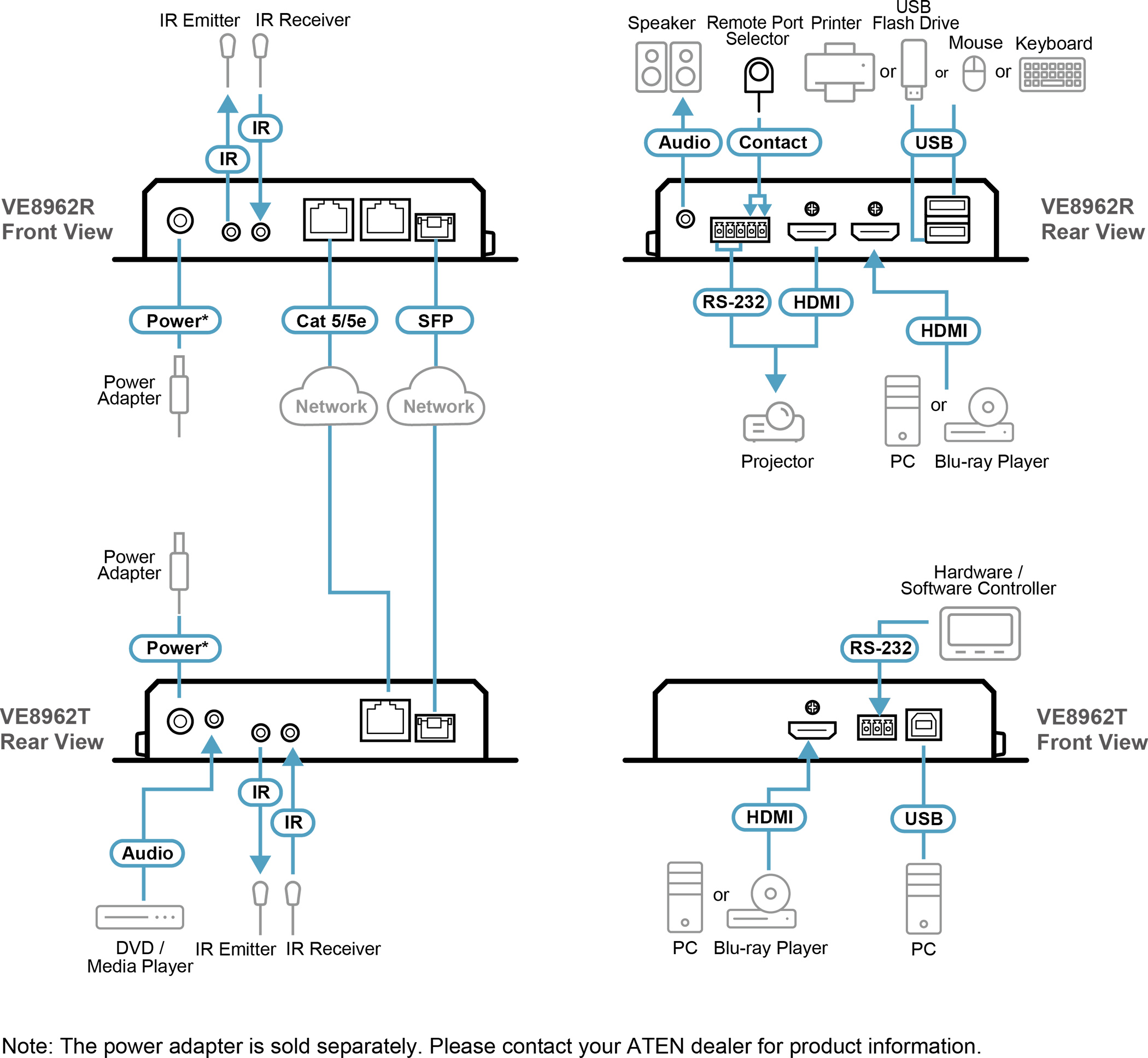

I/O Diagram
