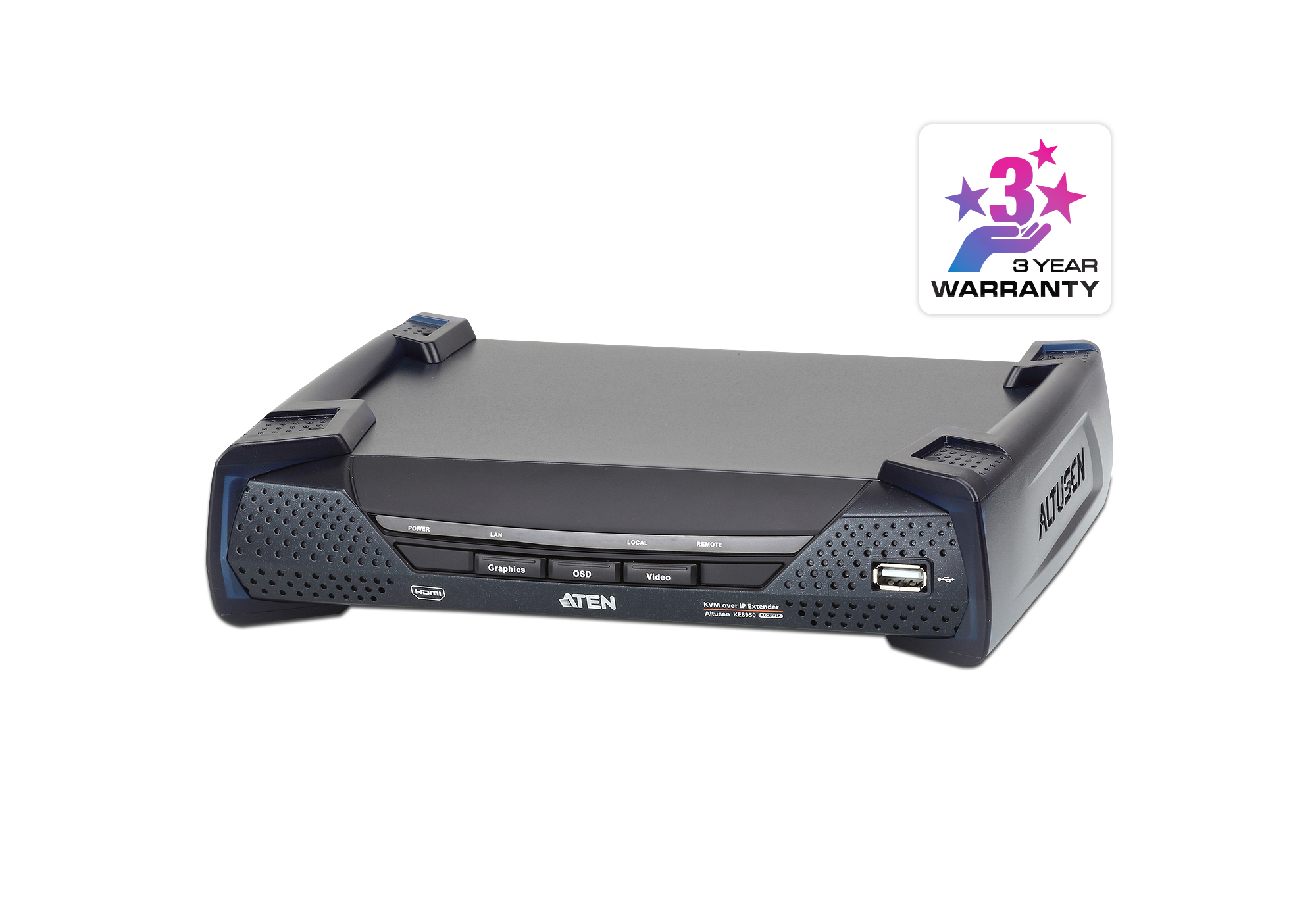

Aten KE8950R 4K HDMI KVM over IP Receiver

Aten KE8950R 4K HDMI KVM over IP Receiver

by Aten
See more product details
Part No:FEKE8950R
Manufacturer No:KE8950R
Delivery: In Stock: 5-7 Days

/assets/images/gallery/large/1615298760ATKE8950R.jpg

Aten KE8950R 4K HDMI KVM over IP Receiver
More Related Items
Click to change options
Colour:
Door:
Flat Pack:
Accessory Kit:
Apply
£554.16 Ex VAT
Qty:
Click to change options
Colour:
Apply
£104.00 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top
    Aten KE8950R 4K HDMI KVM over IP Receiver

    Overview

    ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new ATEN KE8950 4K HDMI KVM over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

    Utilizing expertise in over IP KVM solutions, KE8950 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8950 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8950 also support 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission.

    The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-to-point , and multipoint-to-multipoint administration. KE8950 can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN.

    Implementing the KE Matrix Management Software (CCKM) with KE8950, IT administrators receive advanced features functioning as auto detection of all KE Series Extenders* on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

    More flexible and efficient operations can be achieved in the KVM over IP Matrix System, which integrates KE Series Extenders with the CCKM management software, such as multi-display setups, video grouping, video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.

    Package Contents

    • 1x KE8950R 4K HDMI Single Display KVM over IP Receiver
    • 1x Power Adapter
    • 1x HDMI LockPro
    • 1x User Instructions

    Features

    Advanced Features**

    • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
    • Fast Switching – switch between different remote video resolutions on a local display within 0.3 seconds
    • Unlimited Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
    • Advanced Scheduling – improves efficiency and saves costs by allowing media playback to be set based on time and date
    • Channel connections allow RX devices to connect to multiple TX devices – to stream video, audio, USB and serial sources independently
    • Support both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings – administrators can set four access modes of permissions on TX devices for collaboration or to avoid interference among users
    • Configurable user and group permissions for access and control of KE devices
    • Support industry standard Transport Layer Security (TLS) protocol
    • Video grouping of up to 4 sets of KE series devices to support Multi-Display applications

    Hardware

    • Ultra High Definition (UHD) video quality – up to 3840 x 2160 @ 30Hz (4:4:4); 36-bit color depth
    • Support interlaced video (1080i)
    • Support standard HDMI resolutions from 640 x 480 up to 3840 x 2160 @ 30Hz
    • Support stereo speakers and stereo microphone
    • USB Virtual Media Support
    • Compliant with HDMI 1.4a and HDCP 1.4
    • Auto-MDIX – automatically detects cable type
    • Built-in 8KV/15KV ESD protection and 1KV surge protection
    • Fanless design for silent operations that are energy efficient
    • Hot pluggable
    • Upgradeable firmware
    • Rack Mountable – Mounting options:
      • 2X-021G Dual Rack Mount Kit
      • 2X-031G Single Rack Mount Kit
    • Support connection via Gigabit Ethernet port
    • An industrial-grade power adapter included - supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions

    Management

    • Remotely access computers on your KVM installation via intranet
    • Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
    • OSD (On Screen Display) on the Receiver configures both units
    • Support GUI operation
    • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
    • On-screen Preview – allows users to view the video of up to 36 displays on one screen
    • Command Line Interface – administrators can control all KE devices via RS-232 or TCP/IP using a CLI or 3rd party application
    • RS-232 serial ports – allow you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
    • Flashing LED and beeping features help locate and identify devices

    Security

    • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
    • Secure data transmission – 128-bit AES encryption to secure all data before it’s transmitted over a network and decrypts the data on the receiver
    • Remote login security

    Virtual Media

    • USB Virtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
    • Support Smart Card/CAC Reader

    Recommended Network Switches

    • Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
      • Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
      • HP Procurve 2920
      • H3C S5120
      • Huawei S5700
      • DLink DGS-1510

    Overview

    ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new ATEN KE8950 4K HDMI KVM over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

    Utilizing expertise in over IP KVM solutions, KE8950 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8950 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8950 also support 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission.

    The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-to-point , and multipoint-to-multipoint administration. KE8950 can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN.

    Implementing the KE Matrix Management Software (CCKM) with KE8950, IT administrators receive advanced features functioning as auto detection of all KE Series Extenders* on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

    More flexible and efficient operations can be achieved in the KVM over IP Matrix System, which integrates KE Series Extenders with the CCKM management software, such as multi-display setups, video grouping, video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.

    Package Contents

    • 1x KE8950R 4K HDMI Single Display KVM over IP Receiver
    • 1x Power Adapter
    • 1x HDMI LockPro
    • 1x User Instructions

    Features

    Advanced Features**

    • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
    • Fast Switching – switch between different remote video resolutions on a local display within 0.3 seconds
    • Unlimited Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
    • Advanced Scheduling – improves efficiency and saves costs by allowing media playback to be set based on time and date
    • Channel connections allow RX devices to connect to multiple TX devices – to stream video, audio, USB and serial sources independently
    • Support both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
    • Advanced User Authorization Settings – administrators can set four access modes of permissions on TX devices for collaboration or to avoid interference among users
    • Configurable user and group permissions for access and control of KE devices
    • Support industry standard Transport Layer Security (TLS) protocol
    • Video grouping of up to 4 sets of KE series devices to support Multi-Display applications

    Hardware

    • Ultra High Definition (UHD) video quality – up to 3840 x 2160 @ 30Hz (4:4:4); 36-bit color depth
    • Support interlaced video (1080i)
    • Support standard HDMI resolutions from 640 x 480 up to 3840 x 2160 @ 30Hz
    • Support stereo speakers and stereo microphone
    • USB Virtual Media Support
    • Compliant with HDMI 1.4a and HDCP 1.4
    • Auto-MDIX – automatically detects cable type
    • Built-in 8KV/15KV ESD protection and 1KV surge protection
    • Fanless design for silent operations that are energy efficient
    • Hot pluggable
    • Upgradeable firmware
    • Rack Mountable – Mounting options:
      • 2X-021G Dual Rack Mount Kit
      • 2X-031G Single Rack Mount Kit
    • Support connection via Gigabit Ethernet port
    • An industrial-grade power adapter included - supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions

    Management

    • Remotely access computers on your KVM installation via intranet
    • Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
    • OSD (On Screen Display) on the Receiver configures both units
    • Support GUI operation
    • EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
    • On-screen Preview – allows users to view the video of up to 36 displays on one screen
    • Command Line Interface – administrators can control all KE devices via RS-232 or TCP/IP using a CLI or 3rd party application
    • RS-232 serial ports – allow you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
    • Flashing LED and beeping features help locate and identify devices

    Security

    • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
    • Secure data transmission – 128-bit AES encryption to secure all data before it’s transmitted over a network and decrypts the data on the receiver
    • Remote login security

    Virtual Media

    • USB Virtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
    • Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
    • Support Smart Card/CAC Reader

    Recommended Network Switches

    • Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
      • Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
      • HP Procurve 2920
      • H3C S5120
      • Huawei S5700
      • DLink DGS-1510
