Easy Rack 50 kg component shelf short

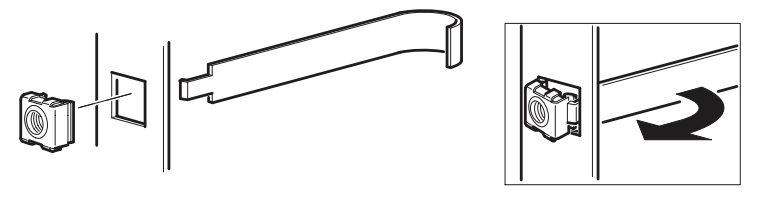

Install the cage nut:
1. From the inside of the rack, insert the cage nut into the square hole.
2. Hook one tab of the cage nut assembly through the far side of the hole.
3. Place the cage nut tool on the other side of the cage nut and pull to snap into position.
Install the 50 kg Accessory Shelf
Install four (4) cage nuts to the front two vertical mounting rails as described above. Install four (4) cage nuts to the inside of the rear vertical mounting rails as described above. At the front of the rack, attach four (4) screws to the front of the shelf and into the four (4) cage nuts you installed in the vertical mounting rails. At the rear of the rack, install four (4) screws to the rails on the rear of the shelf and through the four (4) cage nuts installed in the vertical mounting rails. The illustration below shows this installation process.
Installation details can be found in the Installation Guide PDF file
