APC ER7HCM Easy Rack Horizontal Cable Manager,1U

Key Features of Easy Rack 1U Horizontal Cable Manager

• Horizontal cable management for organized rack setup
• Front and rear vertical rail installation
• Compact 1U design
• Durable black finish
• Maximum dimensions: 45 mm height x 483 mm width
• Lightweight: 1 kg
• Includes 4 x M6 x 12 Pan head T30 screws and cage nuts

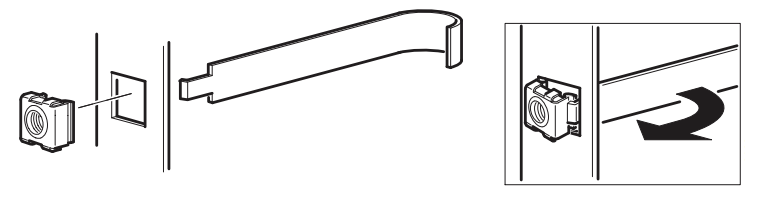

Installing the Cage Nut

1. From the inside of the rack, insert the cage nut into the square hole.

2. Hook one tab of the cage nut assembly through the far side of the hole.

3. Place the cage nut tool on the other side of the cage nut and pull to snap into position.

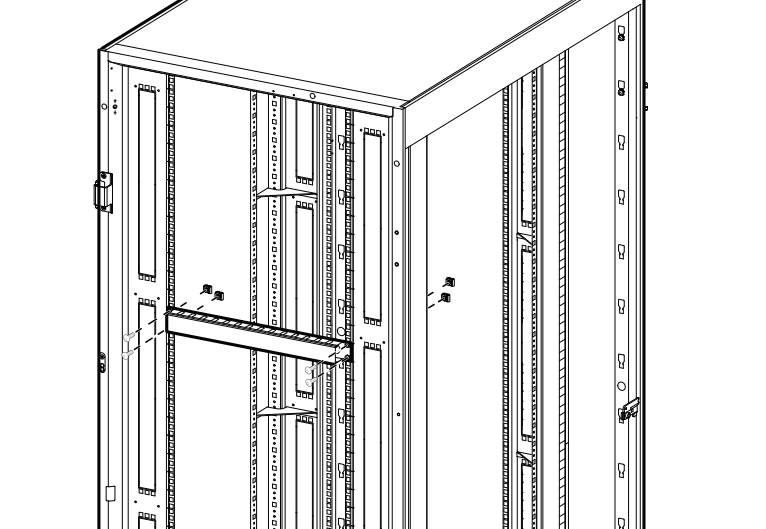

Installing the Horizontal Cable Manager

Using the hardware provided, install the four cage nuts in the vertical mounting rails of your Easy Rack.

Use the four M6 x 12 Pan head T30 screws to secure the Horizontal Cable Manager to the cage nuts.
