APC APDU10250ME NetShelter Advanced Metered 3Phase 42 Outlets IEC309 Rack PDU

A rack PDU with an industry-first 4-in-1 outlet design that works for the most common types of plugs, with models able to deliver even more power.

Designed for the high-density power needs of service providers, large enterprises, and medium-to-large data centers.

Remote management can save time and money with the ability to reboot hung devices, restoring functionality without deploying personnel.

Secure remote monitoring and control of your power infrastructure can be managed through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system of your choice.

Specifications

• Mounting U-space - Vertical, 0U
• Nominal Voltage - 400-415V
• Applicable Region - Worldwide
• Input Circuit - 16 (IEC), 20 (UL) A, 3P
• Nominal power - 11.0 (IEC), 11.5 (UL) kW

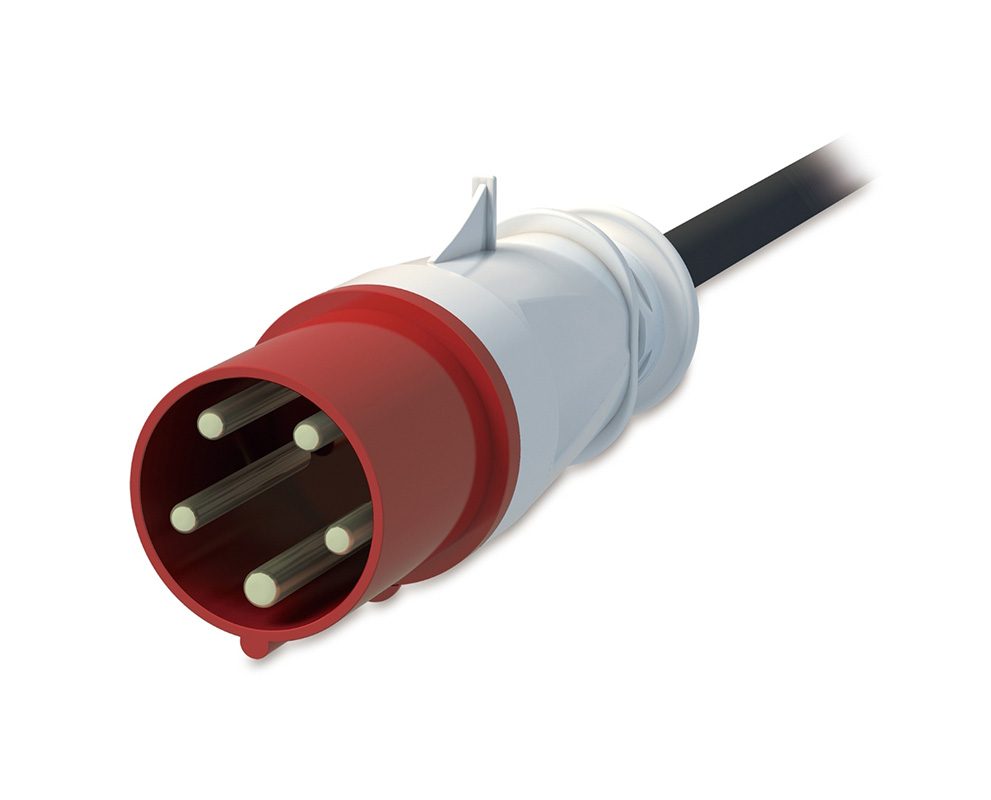

• Input plug type - IEC-309 20 A 3P+N+PE
• Output receptacles - (21) C13/15, (21) 4-in-1
• Cord length - 1.8 m

PDU Features

Design Features

• Ultra-low profile, space-saving design
• Hydraulic-magnetic circuit breakers
• High retention outlets when used with standard cords
• Ultra-low profile circuit breakers
• Locking IEC outlets when used with locking power cords

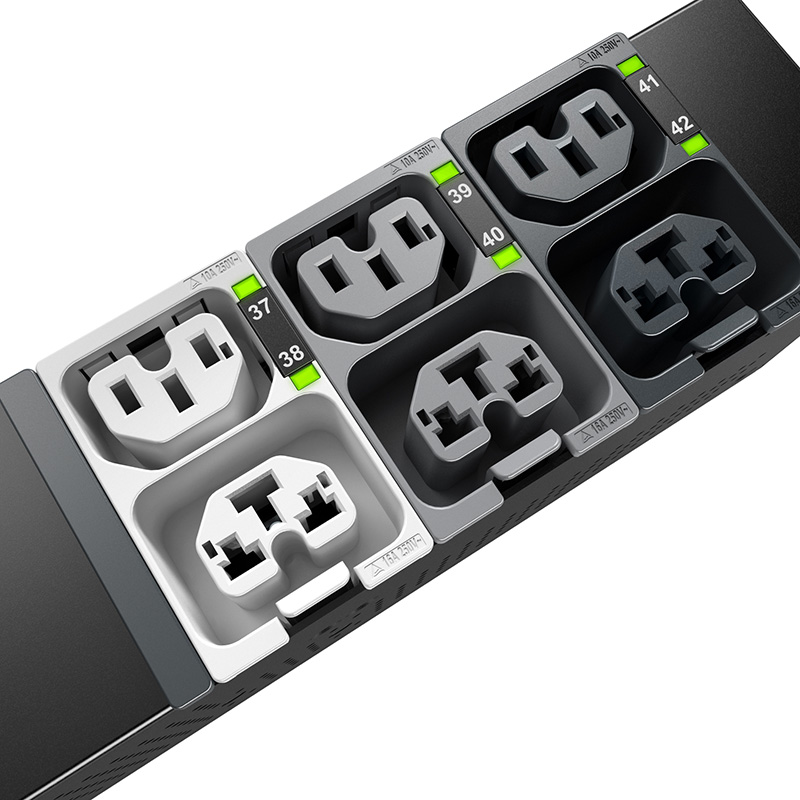

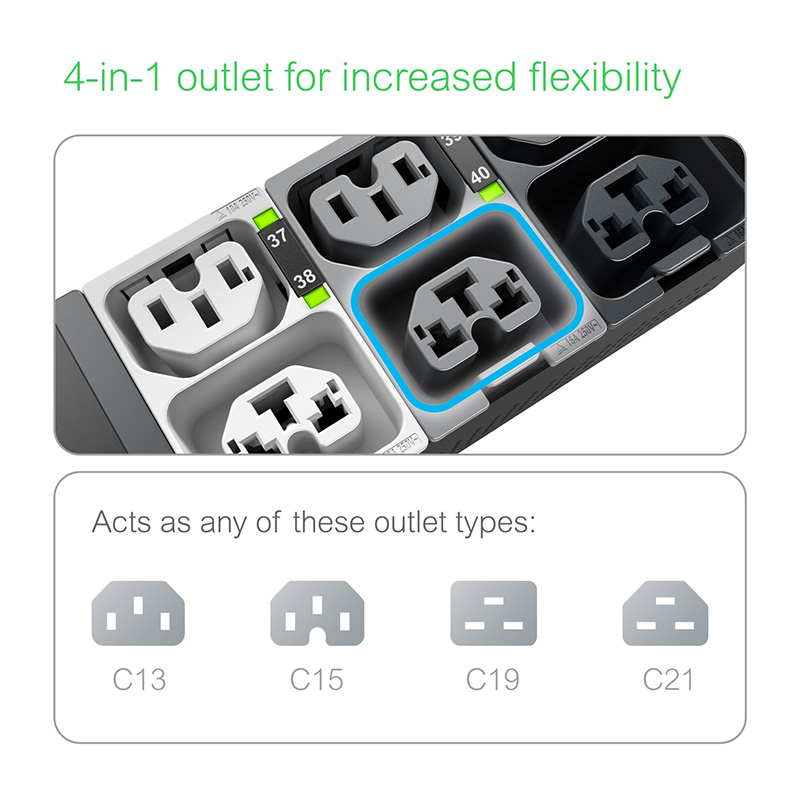

• 4-in-1 outlet acts as C13/C15/C19/C21 outlet
• High-density outlets
• Alternating phase and color-coded outlets

Intelligent power management

• Metered
• Switched
• Metered-by-outlet
• Metered-by-outlet with switching

Outlet control

• Individual outlet remote power on/off control
• Outlet power sequencing with full user customization
• Outlet level grouping (multiple outlets in same or multiple units follow single command)
• User access control with assignable roles, access levels at device and outlet level

EcoStruxure IT compatibility

• Monitoring sensors and alarms

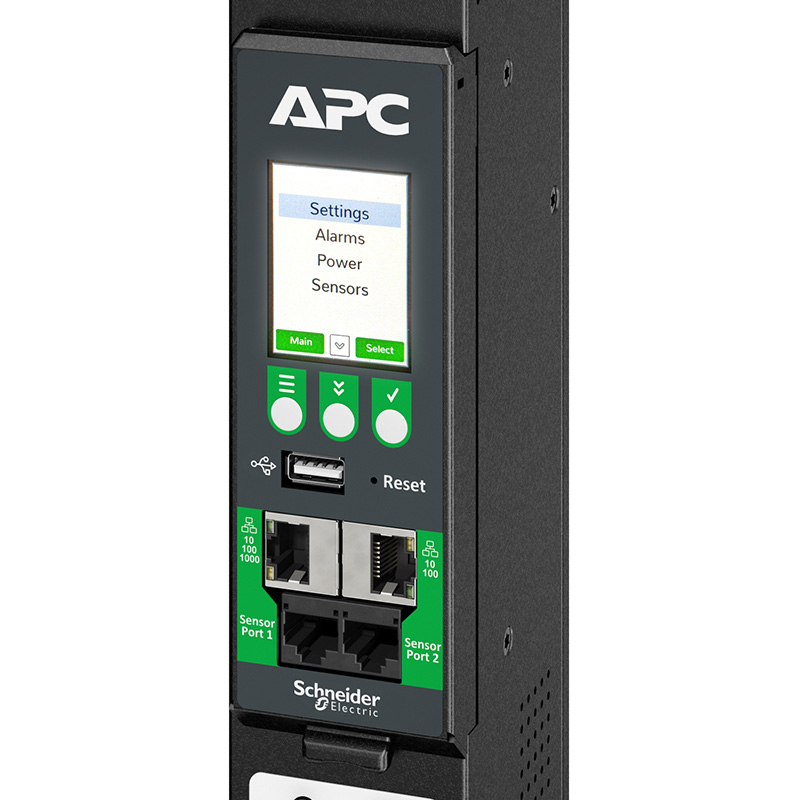

Display and network management

• Full-featured network management via Web and SNMP
• Gigabit Ethernet connectivity
• Colour LCD Local display
• Network 32 port sharing
• Local USB port for easy local firmware updates
• Network management card power sharing
• Dual network ports for multi-user access

Metering capability

• Metering accuracy: +/- 1%
• Active current measurements (amps)
• Active power measurements, including volts, amps, real power (kW), and energy (kWh)
• User-customizable alarms and warnings
• Embedded log memory to record/review/report historic metered
• Individual outlet power metering

Environmental

• Maximum operating temperature - 60°C
• Up to 8 environmental monitoring ports for external temperature/humidity

Maintenance and upgradeability

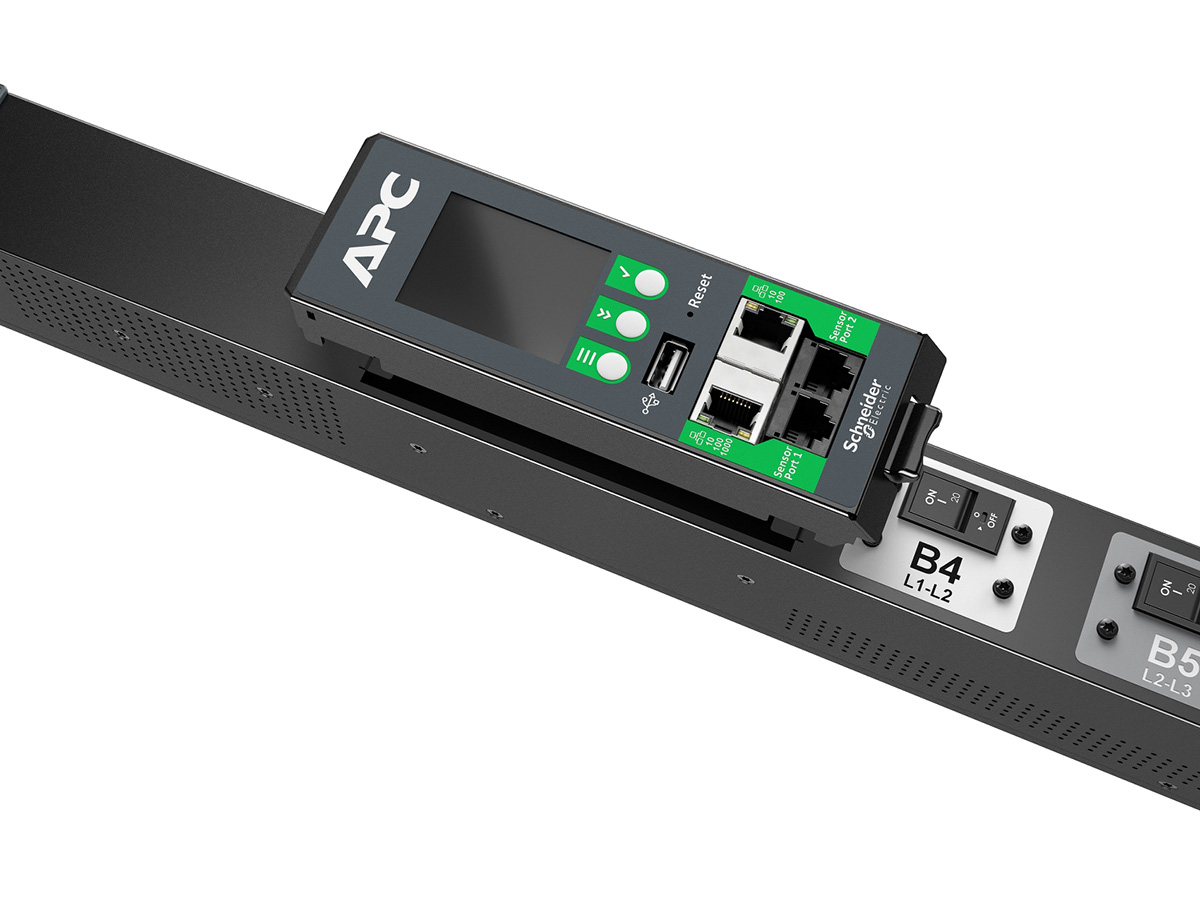

• Field-replaceable network management module - Live Swap
• 3 Year Warranty
