AddOn Mellanox MMS4X00-NS Compatible Transceiver

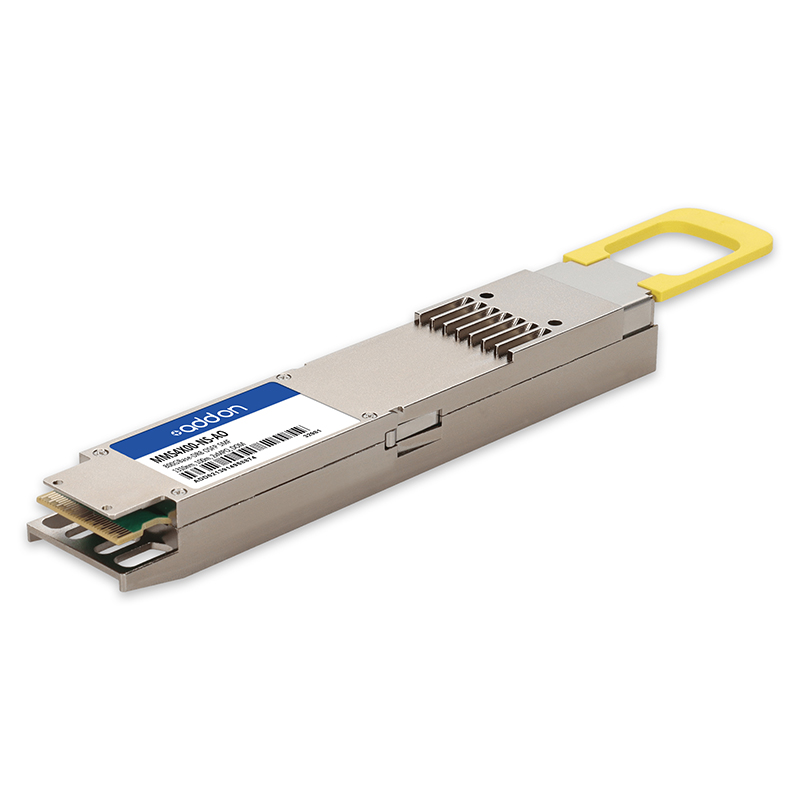

The Mellanox® MMS4X00-NS compatible OSFP transceiver delivers high-speed 800GBase-DR8 throughput up to 100m over single-mode fiber (SMF) using PAM4 modulation and a 1310nm wavelength via a 2xMPO connector. Engineered to meet or exceed OEM specifications, it operates in temperatures from 0 to 70°C and is 100% compatible with Mellanox® transceivers. This hot-swappable module is programmed, uniquely serialized, and thoroughly tested for data traffic and application performance to ensure seamless initialization and identical operation.

All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Key Features

• OSFP MSA Compliant
• Supports both Ethernet and InfiniBand NDR
• 8x100G PAM4/8x50G PAM4 data rates
• Compliant with IEEE 802.3ck-2022: 8x100GAUI-1 C2M electrical interface
• EML transmitter and PIN PD receiver
• Compliant with IEEE 802.3cu-2021: 8x100GBASE-DR optical interface
• Class 1 Laser
• Cooled 1310 EML Laser
• RoHS Compliant and Lead-Free
• Operating Temperature: 0 to 70 Celsius
