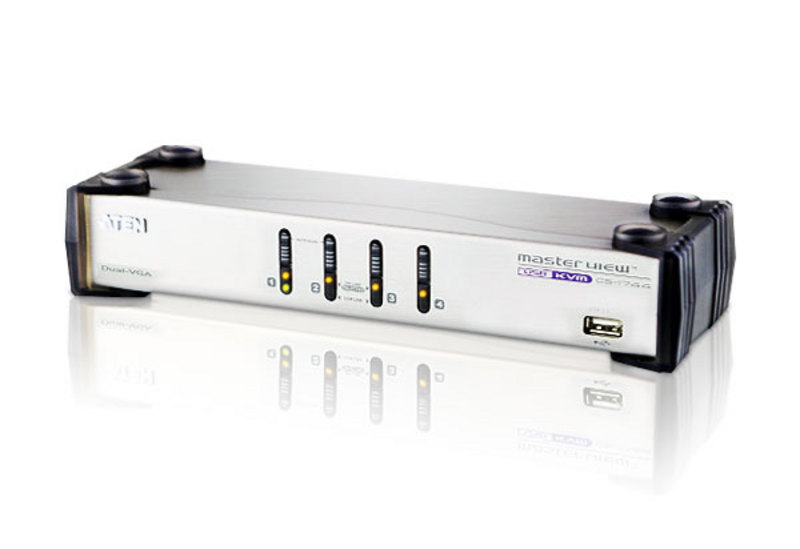

4-Port USB VGA Dual Display/Audio KVMP™ Switch

Overview

CS1744 KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1744 provides 1 USB port on each of the front and rear panels, allowing each server to share any USB peripheral device that is connected to this HUB.

Package Contents

• 1x 4-Port USB Dual-View KVMP™ Switch
• 4x Custom KVM Cable (VGA, USB; 1.8m/6ft)
• 4x Custom KVM Cable (VGA, Audio; 1.8m/6ft)
• 1x Firmware Upgrade Cable
• 1x User Instructions

Features

• Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
• 2 port USB Hub built in
• Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
• With speaker and microphone support
• Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
• Buzzer On/Off via hotkey
• Keyboard and mouse emulation for error free booting
• Computer selection via front panel pushbuttons and hotkeys
• Superior video quality - up to 2048 x 1536; DDC2B
• Firmware upgradeable
• OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
• SUN/Mac keyboard support and emulation*
• *PC keyboard combinations emulate SUN/Mac keyboards
• *SUN/Mac keyboards only work with their own computers
