| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AHUIP-3202 |
| Manufacturer No: | UIP-3202 |
| Delivery: | In Stock: 5-7 Days |
 |

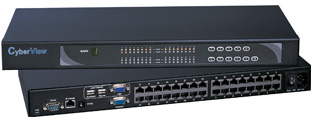

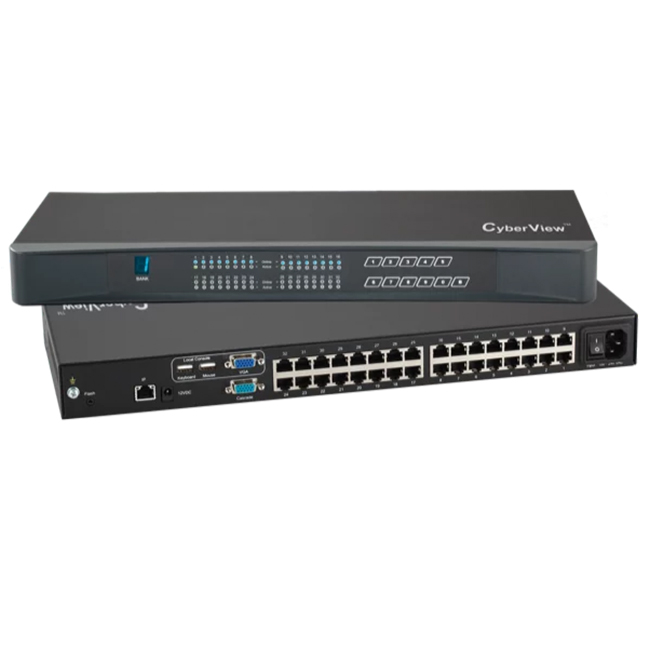

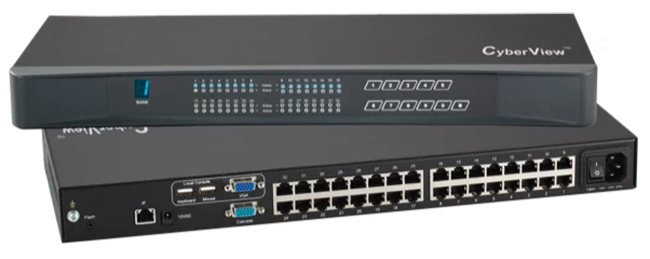

The CyberView U-IP3202 is a 32 port Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles - 1 x local, 1 x network IP.
The CyberView U-IP3202 Cat6 KVM Switch allows you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). This KVM supports single-user access to 32 sources from up to 2 consoles: 1x Local, and 1x Over-IP from a web browser using our HTML-based java-free interface. CyberView Cat6 KVMs support a variety of video inputs from USB-C, DisplayPort, HDMI, DVI, & VGA, with resolutions up to up to 1080p & 1920 x 1200. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.

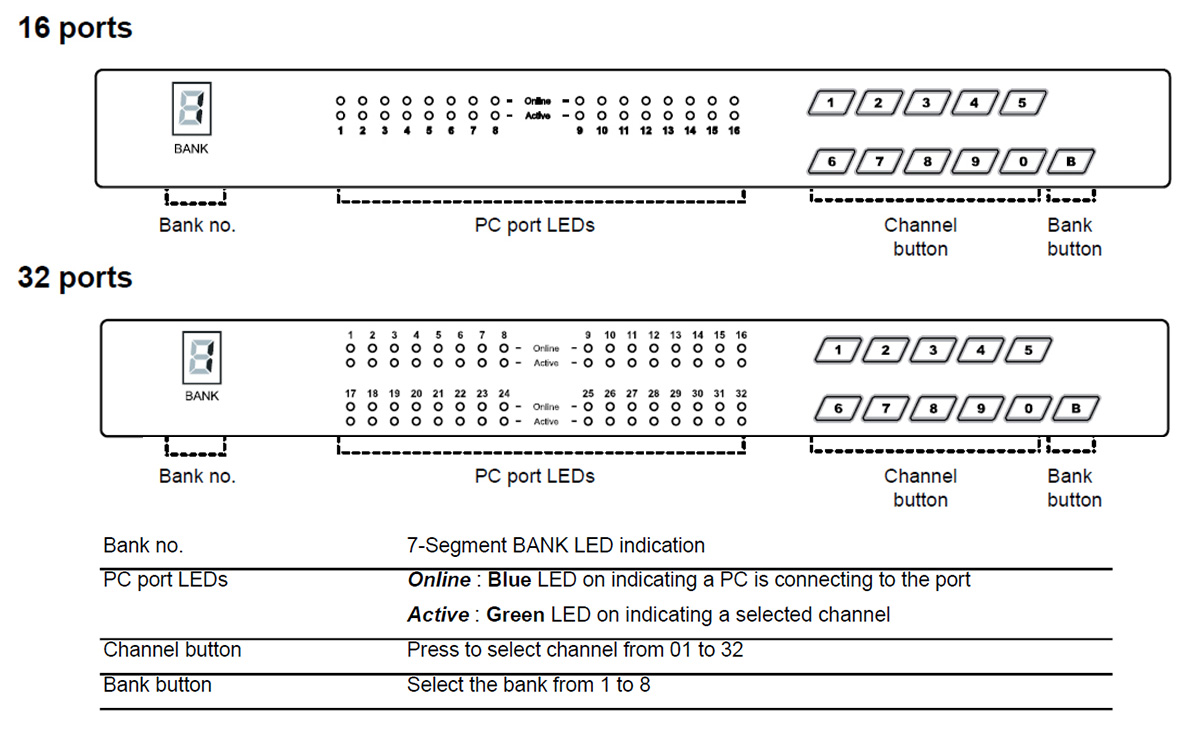

Front Panel LEDs:

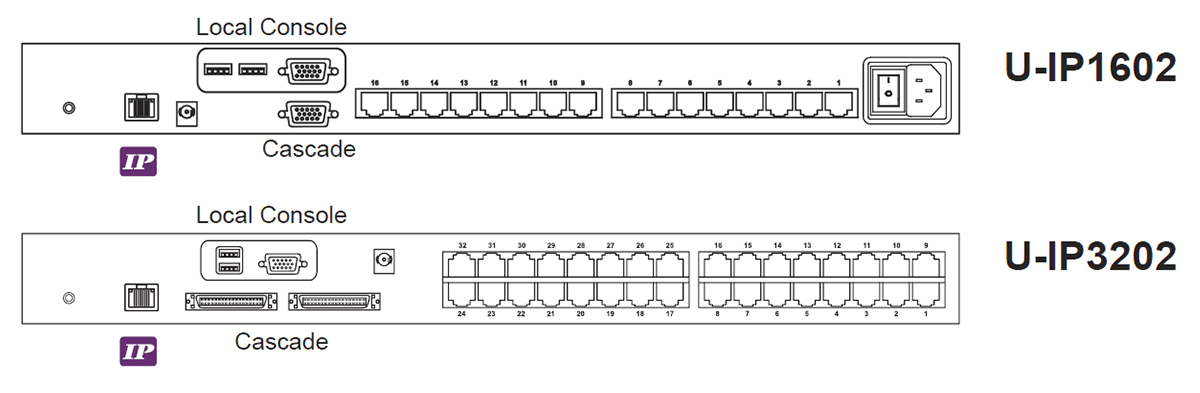

Rear Panel:
Package Contents:
*For complete specifications see the documentation tab above
Expanding its range of server management solutions Austin Hughes introduces its new high-density IP console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost-effectively specify the switch to match the exact server configurations – multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.
A second user can work securely via a remote Keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC’s but provides seamless secure access over IP via a web browser. Secure IP access allows the ultimate server control even to Bios level of your infrastructure.
The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles/access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
