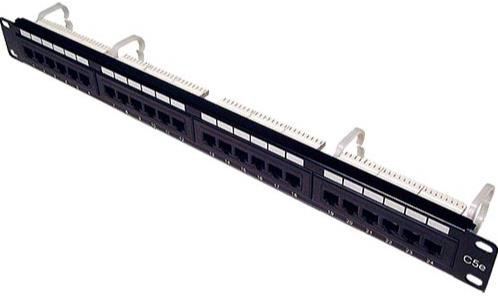

24 Port Cat5e UTP 1u Eco Patch Panel

The Cat5e UTP 1u 24 port patch panel uses a dual termination punch down block suitable for LSA or 110 tooling. 568B punch down blocks on rear of panel at 180 degrees to the front. Cable management rings at the rear of the patch panel allows routing of the cables to aid airflow.

Key Features of the 24-Port Cat5e UTP 1U Eco Patch Panel (Part No: PAN1E-QTM / 72-3392):

Core Specifications

Capacity: 24 RJ45 ports in a 1U rack-mountable form factor.

Performance: Category 5e (Cat5e) compliant, supporting Gigabit Ethernet (1000Base-T) and backward compatible with 10/100Base-T.

Standard Compatibility: Complies with ANSI/TIA-568-A/B and ISO/IEC 11801 standards.

Each port has a provision for individual labelling.

Coloured markings on punch down blocks and rear labels for correct cable termination.
