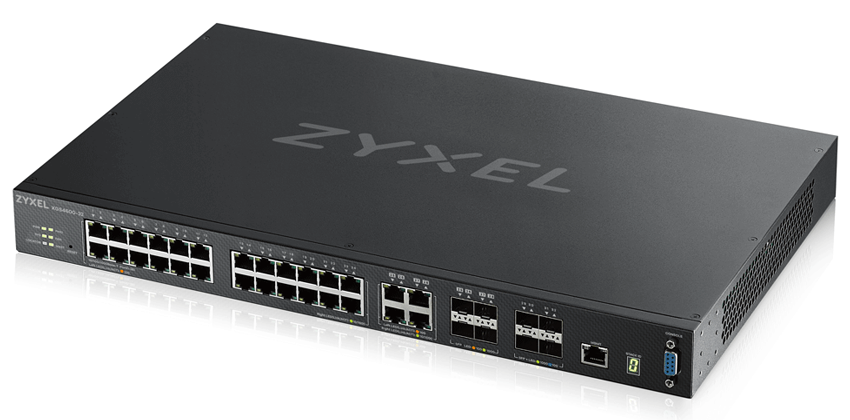

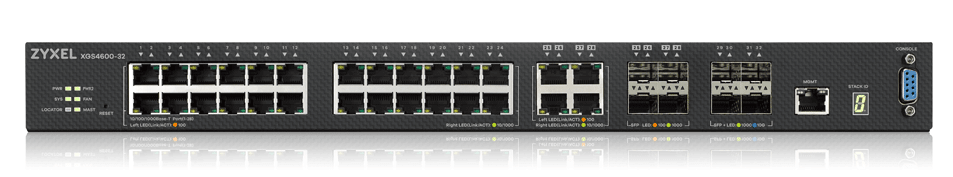

The Zyxel XGS4600 Series |
|||
XGS4600-32 | XGS4600-32F | XGS4600-52F | |
Product name | 28-port GbE L3 Managed Switch with 4 SFP+ Uplink | 28-port GbE L3 Managed Fiber Switch with 4 SFP+ Uplink | 48-port GbE L3 Managed Fiber Switch with 4 SFP+ Uplink |
Switch class | Layer 3 | Layer 3 | Layer 3 |
Port Density | |||
Total port count | 32 | 32 | 52 |
Gigabit SFP | - | 24 | 48 |
100/1000 Mbps | 24 | - | - |
Gigabit combo (SFP/RJ-45) | 4 | 4 | - |
10-Gigabit SFP+ | 4 | 4 | 4 |
Performance | |||
Switching capacity (Gbps) | 136 | 136 | 176 |
Forwarding rate (Mpps) | 101.1 | 101.1 | 130.9 |
Packet buffer (byte) | 4 MB | 4 MB | 4 MB |
MAC address table | 32K | 32K | 32K |
L3 forwarding table | Max. 8K IPv4 entries; Max. 4K IPv6 entries | Max. 8K IPv4 entries; Max. 4K IPv6 entries | Max. 8K IPv4 entries; Max. 4K IPv6 entries |
Routing table | 12K | 12K | 12K |
IP interface | 256 | 256 | 256 |
Flash/RAM | 64 MB/1 GB | 64 MB/1 GB | 64 MB/1 GB |
Power | |||
Input | 100 to 240V AC, 50/60 Hz | 100 to 240V AC, 50/60 Hz | 100 to 240V AC, 50/60 Hz |
Max. power consumption (watt) | 47.0 | 60.1 | 70.16 |
Physical Specifications | |||
Item | Dimensions (WxDxH) (mm/in.) 441 x 270 x 44/ 17.36 x 10.63 x 1.73 Weight (kg/lb.) 3.96/8.73 |
Dimensions (WxDxH) (mm/in.) 441 x 270 x 44/ 17.36 x 10.63 x 1.73 Weight (kg/lb.) 4.21/9.28 |
Dimensions (WxDxH) (mm/in.) 441 x 360 x 44/ 17.36 x 14.17 x 1.73 Weight (kg/lb.) 4.97/10.96 |
Packing | Dimensions (WxDxH) (mm/in.) 616 x 355 x 107/ 24.25 x 13.98 x 4.21 Weight (kg/lb.) 5.69/12.54 |
Dimensions (WxDxH) (mm/in.) 616 x 355 x 107/ 24.25 x 13.98 x 4.21 Weight (kg/lb.) 5.83/12.85 |
Dimensions (WxDxH) (mm/in.) 616 x 355 x 107/ 24.25 x 13.98 x 4.21 Weight (kg/lb.) 6.6/14.55 |
Included accessories | Power cord, Rack mounting kit | ||
Environmental Specifications | |||
Operating | Temperature: 0°C to 50°C/32°F to 122°F. Humidity: 10% to 90% (non-condensing) |
||
Storage | Temperature: -40°C to 70°C/-40°F to 158°F. Humidity: 10% to 90% (non-condensing) |
||
MTBF (hr) | 860,610.82 | 794,270.06 | 815,860 |
Heat dissipation (BTU/hr) | 160.27 | 204.94 | 252.68 |
Acoustic noise @ 25°C (dBA) | 43.3 | 43.1 | 42.6 |
Stylish Design
Introducing the XGS4600 Series from Zyxel, which has a new ID design with carbon fibre look name plate delivers the modern look-and-feel in the closet.
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. The dynamic routing feature simplifies cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
Additionally, now we offer the advanced routing license supports RIPng and OSPFv3 for XGS4600 to support IPv6 routing environment.
High Resiliency

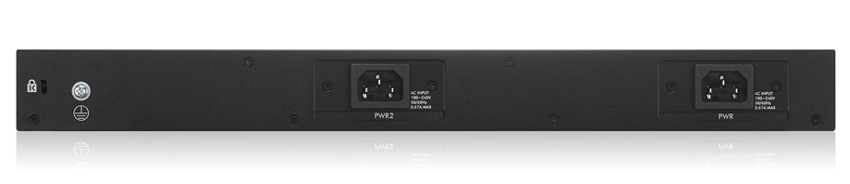

The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Robust Hardware
A high-quality hardware design also ensures stability and longevity for XGS4600 Series on your networks.
Application Scenario
