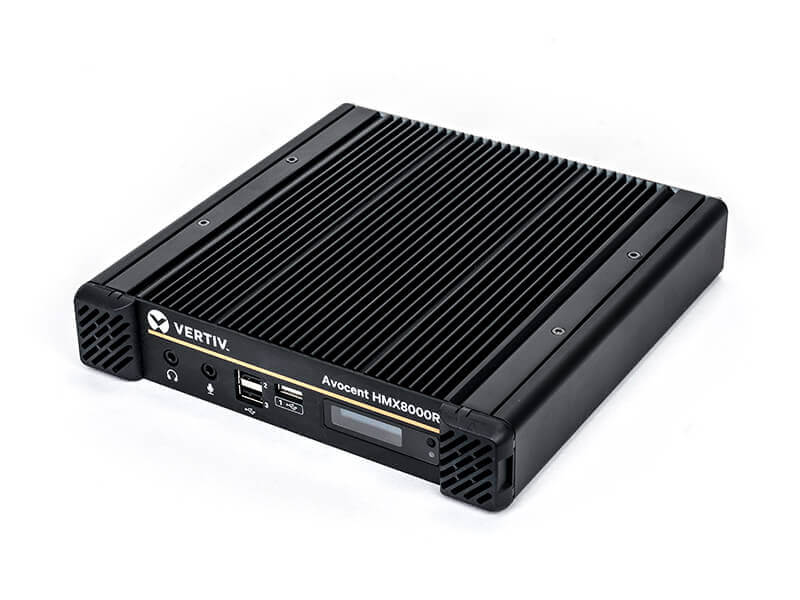

Vertiv Avocent HMX8000R-400 IP KVM Transmitter

Product Overview

The Vertiv Avocent HMX8000R - IP KVM Receiver (HMX8000R) is a high performance KVM extender that offers 4K video over a single fiber connection, along with audio and USB. It delivers pixel-perfect, color accurate picture quality at 4K 60Hz and USB2.0 for fast switching. The 1U receiver enables users to locate critical computing hardware in secure, temperature-controlled environment, away from the user work station.

Key Features

• Less-than-a-second switching between target computers
• Any-to-any matrix configuration
• Multicast 1:1 pixel mapping with instant video transmission
• IP-based technology that removes distance limitations of the past
• USB 2.0 compatibility enabling use of most tablets, shuttle, and joy sticks (reference the USB6000 for non-supported USB requirements)
• Fully redundant system with auto failover
• Remote access capability

Key Benefits

• 4K video @ 60 Hz
• Security via TLS certificate-based encryption
• Local area network (LAN) operation with unlimited extension distances; no need for dedicated cabling between user and computer
• Onscreen (OSD) display at each user station; remote OSD allows video to be pushed and controlled at another station or video wall
• System backups stored internally, externally or via email
• Updates may be scheduled hourly, daily or weekly
