The Ubiquiti UniFi US-16-XG is a powerful managed switch designed for demanding network environments. Its 10 Gigabit SFP+ connectivity, high switching capacity, and advanced features make it suitable for data centers, businesses with high-bandwidth needs, and networks requiring futureproofing for faster data transfer speeds.
The Switch XG 16 (US XG 16) is a fully managed, Layer 2 switch with (12) 10G SFP+ ports and (4) 10GbE RJ45 ports. Its 320 Gbps switching capacity and 160 Gbps total, non-blocking line rate make it an ideal aggregation switch for your core network.
This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and UniFi mobile app.
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

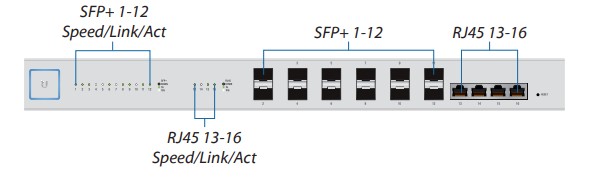

The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the US-16-XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
The US-16-XG connects to the following:
The Devices screen displays the UniFi devices discovered by the UniFi Controller. You can access each managed device for device details and configuration.
The Dashboard tab provides a visual representation of your network’s status. Basic information is provided for each network segment.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
You can also view status information for each port:
Ubiquiti Extended Warranty
Ubiquiti currently offers 1 year standard manufacturer warranty on equipment purchased through official UK distributors.
In the unlikely event that you have any issues with your Ubiquiti product within the 1 year of manufacturer warranty, please contact your account manager in the first instance. Our technical team will do everything they can to find a resolution to your problem. If a fix cannot be provided, then an RMA will need to be registered via the Ubiquiti Reseller Portal.
On all purchases made through Comms Express, we offer our customers options to upgrade the standard manufacturer warranty to a 3 or 5 year advanced hardware replacement.
Available warranty options:
10G Aggregation Switch for Enterprise Networks
Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US-16-XG is a fully managed, 16-port, 10G fibre switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.
10 Gbps Deployment Example
Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
20 Gbps Deployment Example
Supports 6x US-48, 20 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
10G High-Capacity Links
The US-16-XG offers maximum performance and low latency as an aggregation switch. For fibre connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US-16-XG offers four 10G RJ45 ports.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
