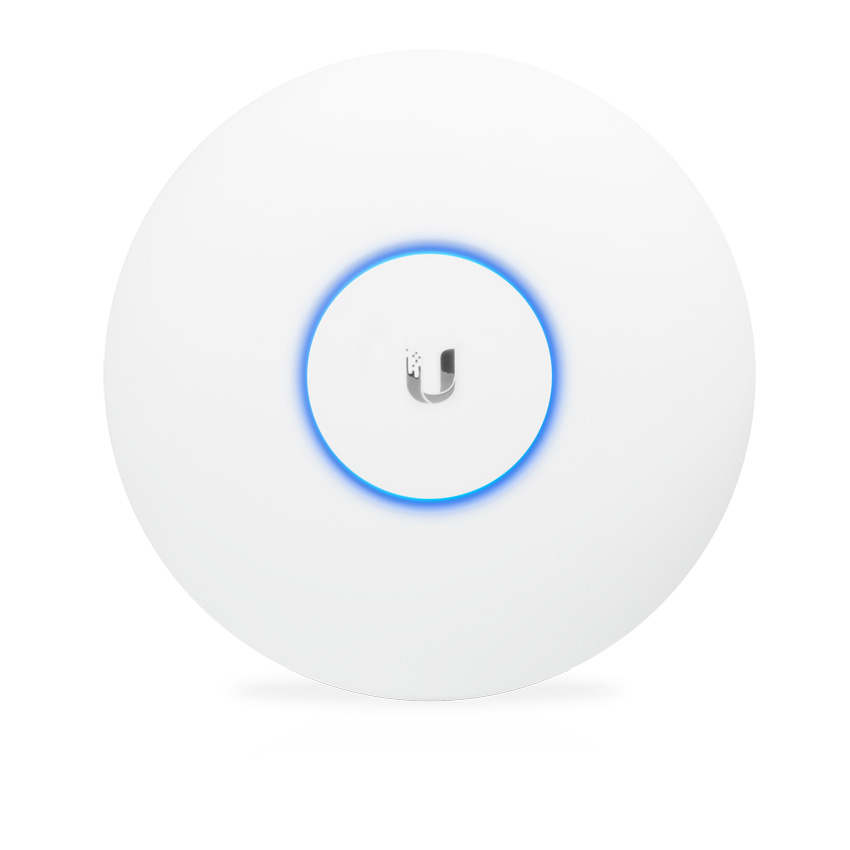

Ubiquiti UniFi AP AC Pro Indoor/Outdoor Access Point (UAP-AC-PRO-5)

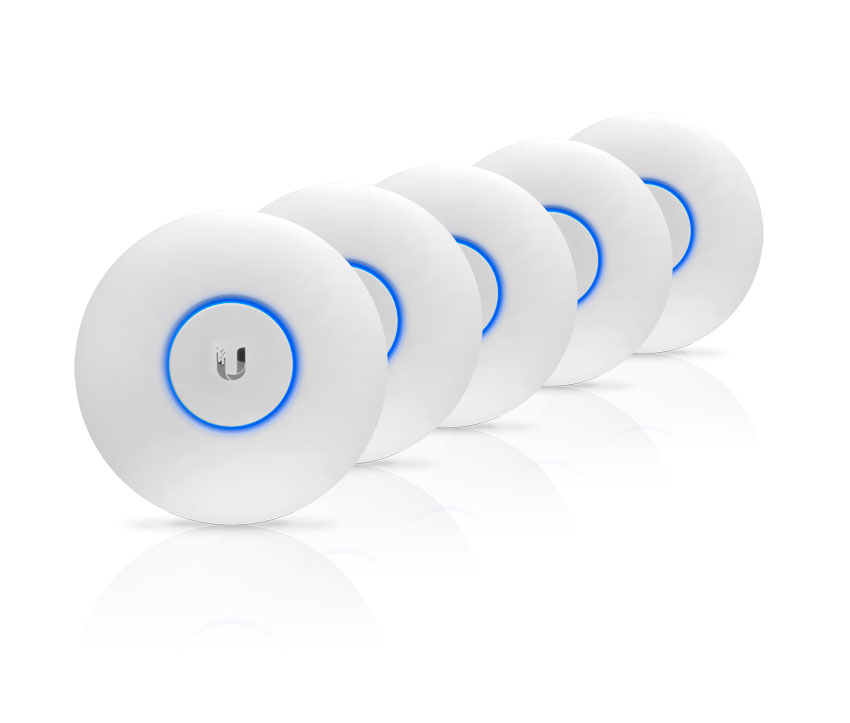

The UAP-AC-PRO-5 is a five-pack of the Ubiquiti UniFi AP AC Pro Access Points. These wireless access points feature WiFi 802.11ac and 3x3 MIMO technology in a refined industrial design, making them ideal for deploying maximum-performance wireless networks.
Key Features:
5 x UAP-AC-Pro Models: Includes five access points.
802.11ac: Supports the latest WiFi standard for high-speed connectivity.
3x3 MIMO Technology: Enhances performance and reliability.
Secondary 1Gbps Data Passthrough Port: Provides additional connectivity options.
Simultaneous Dual-Band: Operates on both 2.4GHz and 5GHz bands.
2.4GHz Throughput: Up to 450Mbps.
5GHz Throughput: Up to 1300Mbps.
2 Gigabit Ethernet Ports: Ensures high-speed wired connections.
The UAP-AC-PRO is ideally suited for both indoor and outdoor deployments with a range of 122m (400ft). The UniFi AC-Pro features instant upgrades using the same mount as the standard UAP model.
For Single Packs
|
UAP-AC-PRO |
Ubiquiti UniFi UAP AC Pro |
 |
The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
The UniFi AC Pro AP is a gigabit, 802.3af powered access point suitable for indoor or outdoor use.
| 802.3af PoE | Weather Resistant |
| Support for 3rd Party Enterprise Switches | Supports Indirect Weather Installation |
The newly redesigned UniFi Controller optimises RF performance:
| Spectral Analysis | Band Steering | Airtime Fairness |
| Collects feedback on full 5GHz & 2.4 GHz channel interference | Pushes clients to faster interference-free, 5GHZ channels | Minimises problem-client effects in system performance by limiting their airtime access |
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralised controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Access Point Comparison Chart
 |
UAP-AC-IW | UAP-AC-IW-PRO | UAP-AC-LITE | UAP-AC-LR | UAP-AC-PRO | UAP-AC-HD |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor/ Outdoor | Indoor/Outdoor (covered) |
| Simultaneous Dual-Band |  |
|
|
|
|
|
| 2.4 GHz Speed | 300 Mbps | 450 Mbps | 450 Mbps | 450 Mbps | 450 Mbps | 800 Mbps |
| 2.4 GHz MIMO | 2x2 | 3x3 | 3x3 | 3x3 | 3x3 | 4x4 |
| 5 GHz Speed | 867 Mbps | 1300 Mbps | 867 Mbps | 1300 Mbps | 1300 Mbps | 1733 Mbps |
| 5 GHz MIMO | 2x2 | 3x3 | 2x2 | 3x3 | 3x3 | 4x4 |
| Range | 183 mt | 122 mt | 183 mt | 122 mt | ||
| Secondary Ethernet Port | (2 Additional Ports) |
(2 Additional Ports) |
|
|
||
| PoE Mode | 802.3at PoE+ | 802.3at PoE+ | 802.3af/A PoE 24V Passive PoE |
802.3af/A PoE 24V Passive PoE |
802.3af PoE 802.3at PoE+ |
802.3at PoE+ |
| Ceiling Mount | |
|
|
|
||
| Wall Mount | |
|
|
|
|
|
| Wireless Uplink | |
|
|
|
|
|
| DFS Certification | |
|
|
|
|
|
| Dimensions(mm) | 140 x 87 x26 | 140 x 87 x26 | ?160 x 31.5 | ?176 x 43 | ?197 x 35 | ?220 x 48 |
| 5 - Pack | Buy | Buy | Buy | Buy | Buy |
Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology
The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
The UniFi AC Pro AP is a gigabit, 802.3af powered access point suitable for indoor or outdoor use.
802.3af PoE
Support for 3rd Party Enterprise Switches
Weather Resistant
Supports Indirect Weather Installation
The newly redesigned UniFi Controller optimises RF performance:
Spectral Analysis
Collects feedback on full 5GHz & 2.4 GHz channel interference
Band Steering
Pushes clients to faster interference-free, 5GHZ channels
Airtime Fairness
Minimises problem-client effects in system performance by limiting their airtime access
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralised controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Access Point Comparison Chart
 |
UAP-AC-IW | UAP-AC-IW-PRO | UAP-AC-LITE | UAP-AC-LR | UAP-AC-PRO | UAP-AC-HD |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor/ Outdoor | Indoor/Outdoor (covered) |
| Simultaneous Dual-Band |  |
|
|
|
|
|
| 2.4 GHz Speed | 300 Mbps | 450 Mbps | 450 Mbps | 450 Mbps | 450 Mbps | 800 Mbps |
| 2.4 GHz MIMO | 2x2 | 3x3 | 3x3 | 3x3 | 3x3 | 4x4 |
| 5 GHz Speed | 867 Mbps | 1300 Mbps | 867 Mbps | 1300 Mbps | 1300 Mbps | 1733 Mbps |
| 5 GHz MIMO | 2x2 | 3x3 | 2x2 | 3x3 | 3x3 | 4x4 |
| Range | 183 mt | 122 mt | 183 mt | 122 mt | ||
| Secondary Ethernet Port | (2 Additional Ports) |
(2 Additional Ports) |
|
|
||
| PoE Mode | 802.3at PoE+ | 802.3at PoE+ | 802.3af/A PoE 24V Passive PoE |
802.3af/A PoE 24V Passive PoE |
802.3af PoE 802.3at PoE+ |
802.3at PoE+ |
| Ceiling Mount | |
|
|
|
||
| Wall Mount | |
|
|
|
|
|
| Wireless Uplink | |
|
|
|
|
|
| DFS Certification | |
|
|
|
|
|
| Dimensions(mm) | 140 x 87 x26 | 140 x 87 x26 | ∅160 x 31.5 | ∅176 x 43 | ∅197 x 35 | ∅220 x 48 |
