| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEUS-8 |
| Manufacturer No: | US-8 |
| Delivery: | Out Of Stock |
 |
The Ubiquiti US-8 UniFi Switch, part of the UniFi line of products. The Ubiquiti US-8 UniFi 8-Port Switch features fast Gigabit Ethernet ports in a compact form factor and is built on the UniFi architecture. This Ubiquiti US-8 UniFi switch is fully manageable, delivering robust performance and intelligent switching for your growing networks. This Ubiquiti US-8 UniFi switch also has a PoE Pass-through port. It's output voltage and power rely directly on the power input.
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
Features:
8-Port Managed Gigabit Switches

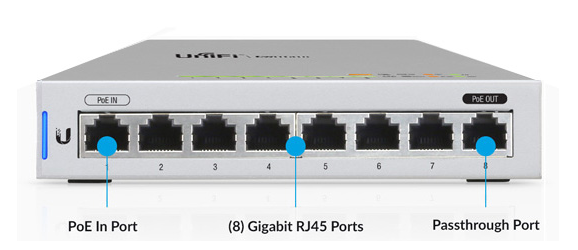

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
PoE
The US-8 can be powered by 802.3af/at, 48V passive PoE, or the included power adapter. When the US-8 is powered by 802.3at PoE or the included power supply, port 8 supports 48V (2-pair) PoE passthrough to deliver up to 12W of power.
The following table displays the PoE passthrough options for the US-8:
| Power Input | PoE Passthrough |
| 802.3af In | No PoE Out |
| 802.3at Out | 802.3af Out |
| Power Supply (included) | 48V Passive Out |
| US-8 | US-8-60W | US-8-150W | US-16-150W | US-24 | US-24-250W US-24-500W | US-48 | US-48-500W US-48-750W | |
|---|---|---|---|---|---|---|---|---|
| Gigabit RJ45 Ports | 8 | 8 | 8 | 16 | 24 | 24 | 48 | 48 |
| SFP Ports | 2 | 2 | 2 | 2 | 2 | 2 | ||
| SFP+ Ports | 2 | 2 | ||||||
| Sound Level*(dBr) | 0.7 fanless |
0.6 fanless |
0.5 fanless |
1.7-10.8 | 1.6-9.2 | 9.1-21.2 9.3-21.6 |
0.7-13.5 | 10.7-23.6 12.1-24.7 |
* Background noise level: 27.5 dBa
Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products.
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
Feautres:
8-Port Managed Gigabit Switches
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
PoE
The US-8 can be powered by 802.3af/at, 48V passive PoE, or the included power adapter. When the US-8 is powered by 802.3at PoE or the included power supply, port 8 supports 48V (2-pair) PoE passthrough to deliver up to 12W of power.
The following table displays the PoE passthrough options for the US-8:
| Power Input | PoE Passthrough |
| 802.3af In | No PoE Out |
| 802.3at Out | 802.3af Out |
| Power Supply (included) | 48V Passive Out |
| US-8 | US-8-60W | US-8-150W | US-16-150W | US-24 | US-24-250W US-24-500W |
US-48 | US-48-500W US-48-750W |
| Gigabit RJ45 Ports | 8 | 8 | 8 | 16 | 24 | 24 | 48 | 48 |
| SFP Ports | 2 | 2 | 2 | 2 | 2 | 2 | ||
| SFP+ Ports | 2 | 2 | ||||||
| Sound Level*(dBr) | 0.7 fanless |
0.6 fanless |
0.5 fanless |
1.7-10.8 | 1.6-9.2 | 9.1-21.2 9.3-21.6 |
0.7-13.5 | 10.7-23.6 12.1-24.7 |
