| Part No: | FEU7-Pro-XGS-B |
| Manufacturer No: | U7-Pro-XGS-B |
| Delivery: | In Stock: Next Day |
 |

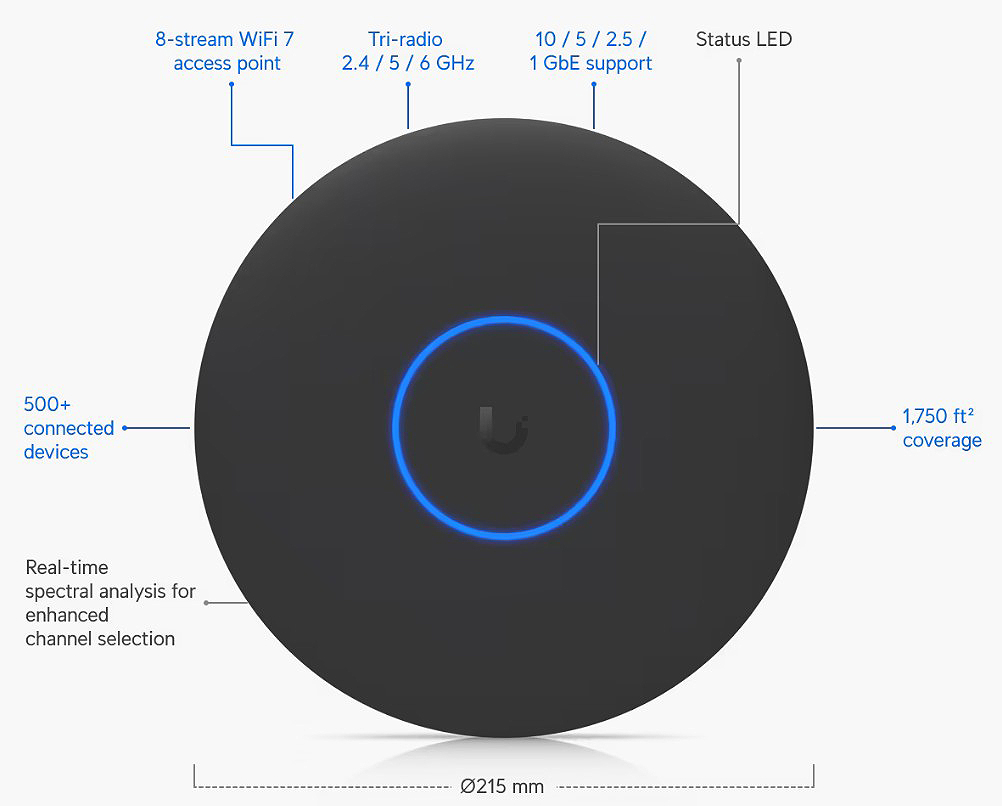

The U7-Pro-XGS-B delivers high-capacity WiFi 7 connectivity through an 8-stream tri-band platform covering 2.4 GHz, 5 GHz, and 6 GHz. With a 10 GbE uplink, dedicated spectral scanning radio, support for more than 500 clients, and coverage of up to 160 m², it is well suited to demanding wireless environments that require substantial throughput and efficient spectrum management. PoE++ provides power through the network connection, while ceiling or wall mounting gives flexibility when positioning the access point.
The access point combines 2.4 GHz, 5 GHz, and 6 GHz radios with eight spatial streams to provide high wireless capacity across multiple frequency ranges. The 6 GHz radio uses 2x2 MU-MIMO, while 5 GHz provides 4x4 MU-MIMO and 2.4 GHz uses 2x2 MU-MIMO.

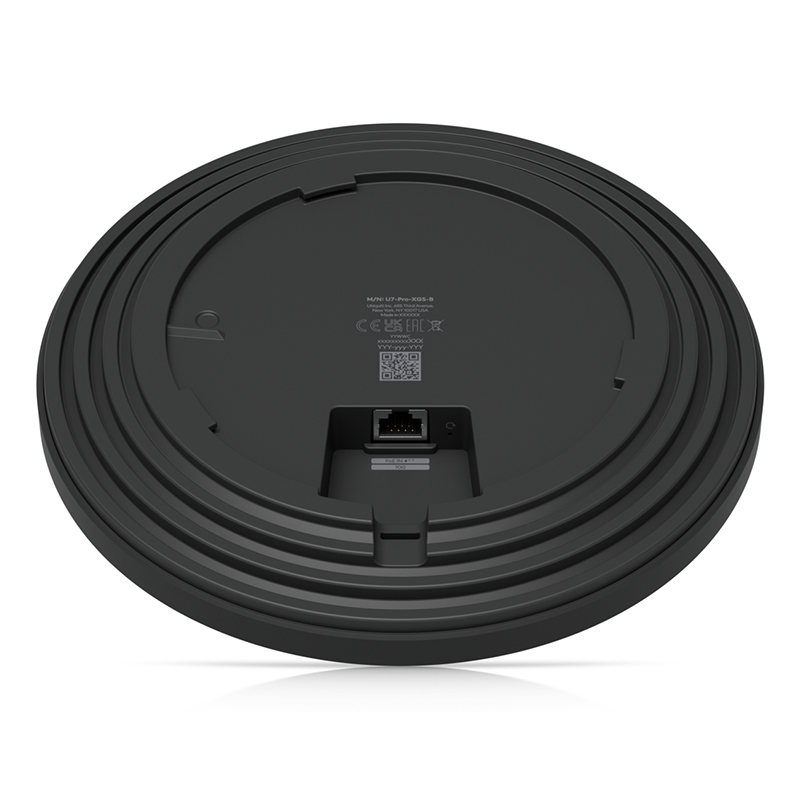

A 10 GbE Ethernet uplink provides a high-bandwidth wired connection between the access point and the network, helping accommodate the throughput available from its WiFi 7 radios. PoE++ supplies power over the same network connection.
A dedicated spectral scanning radio monitors the wireless environment separately from the main client-serving radios. This provides additional visibility into surrounding RF activity without taking one of the primary WiFi radios away from normal network traffic.
The access point supports more than 500 connected clients and provides a stated coverage area of up to 160 m², making it suitable for offices, commercial spaces, meeting areas, and other locations with substantial wireless device activity.

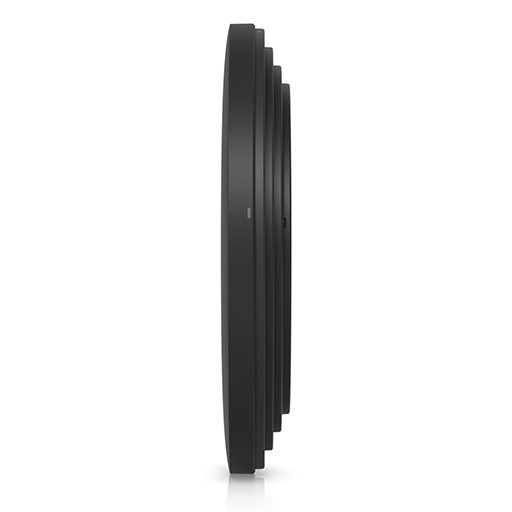

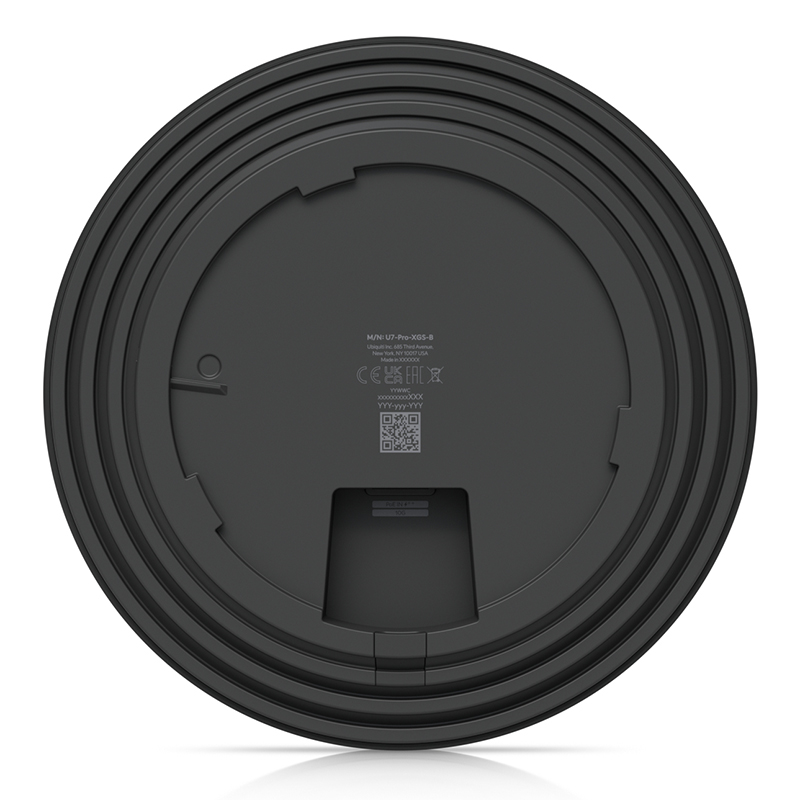

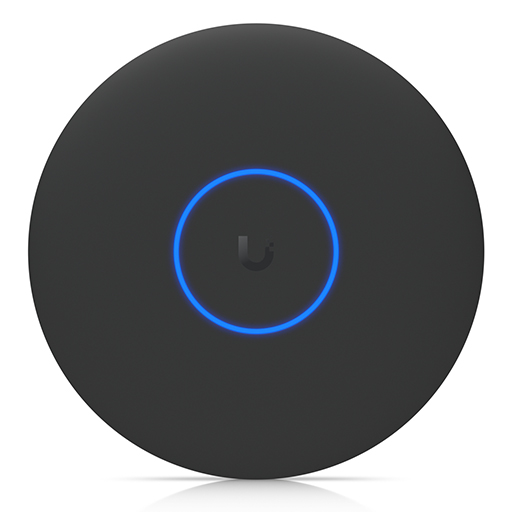

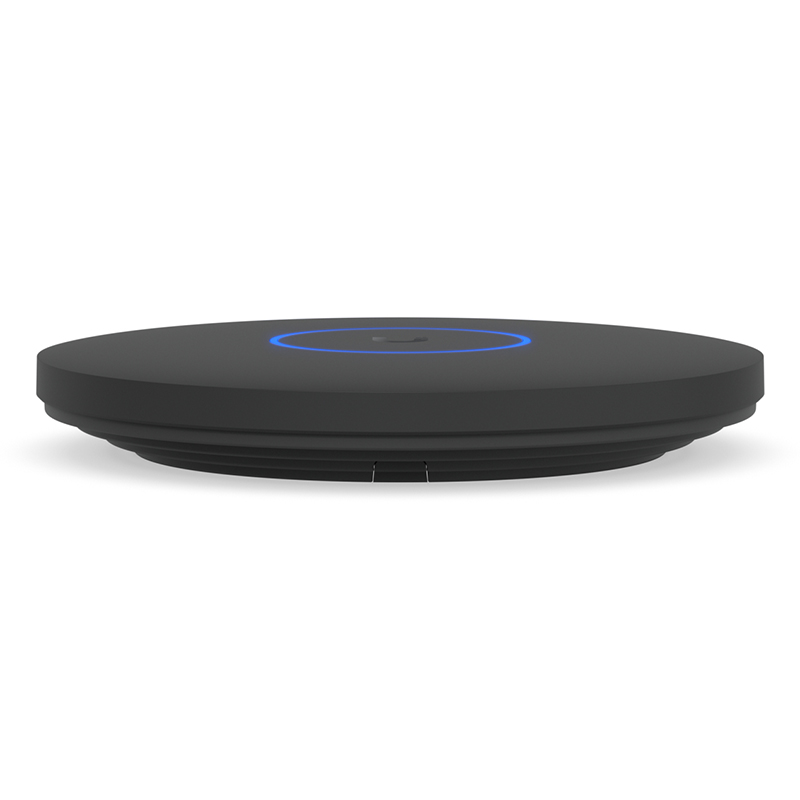

The circular access point measures 215 x 32.5 mm and supports ceiling or wall installation. A Lite Mount is included, providing a convenient mounting option for positioning the access point where wireless coverage is required.
The U7-Pro-XGS-B delivers high-capacity WiFi 7 connectivity through an 8-stream tri-band platform covering 2.4 GHz, 5 GHz, and 6 GHz. With a 10 GbE uplink, dedicated spectral scanning radio, support for more than 500 clients, and coverage of up to 160 m², it is well suited to demanding wireless environments that require substantial throughput and efficient spectrum management. PoE++ provides power through the network connection, while ceiling or wall mounting gives flexibility when positioning the access point.
The access point combines 2.4 GHz, 5 GHz, and 6 GHz radios with eight spatial streams to provide high wireless capacity across multiple frequency ranges. The 6 GHz radio uses 2x2 MU-MIMO, while 5 GHz provides 4x4 MU-MIMO and 2.4 GHz uses 2x2 MU-MIMO.
A 10 GbE Ethernet uplink provides a high-bandwidth wired connection between the access point and the network, helping accommodate the throughput available from its WiFi 7 radios. PoE++ supplies power over the same network connection.
A dedicated spectral scanning radio monitors the wireless environment separately from the main client-serving radios. This provides additional visibility into surrounding RF activity without taking one of the primary WiFi radios away from normal network traffic.
The access point supports more than 500 connected clients and provides a stated coverage area of up to 160 m², making it suitable for offices, commercial spaces, meeting areas, and other locations with substantial wireless device activity.
The circular access point measures 215 x 32.5 mm and supports ceiling or wall installation. A Lite Mount is included, providing a convenient mounting option for positioning the access point where wireless coverage is required.
