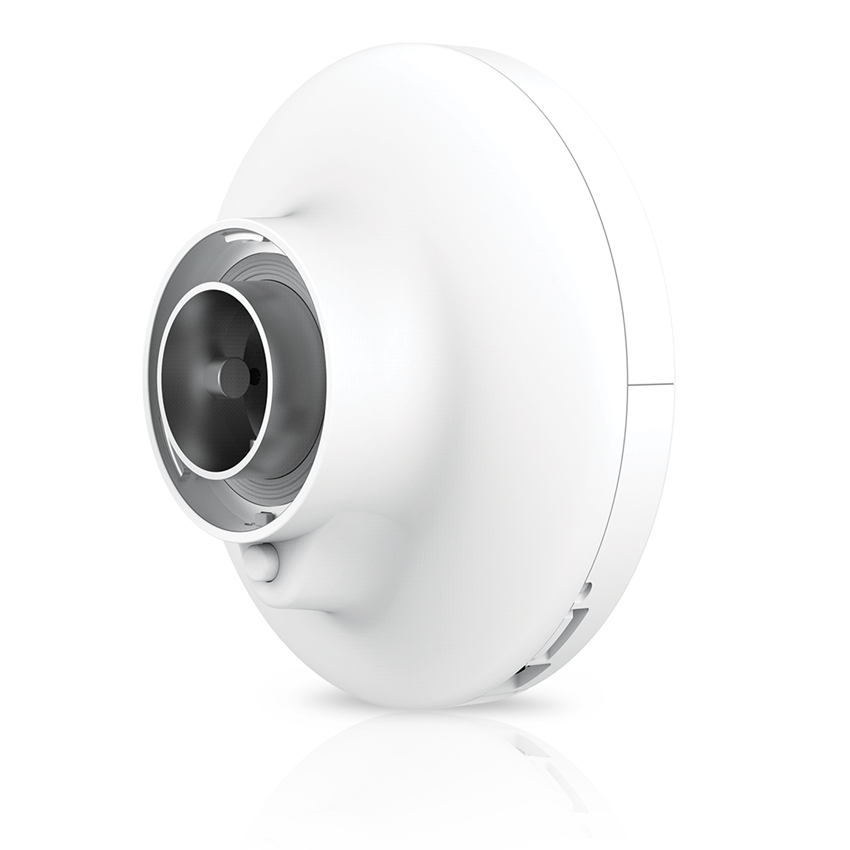

With a die-cast aluminum base and interchangeable antenna, the PrismStation™ AC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilising Ubiquiti's advanced airMAX® ac processor, the PrismStation™ delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).
Built to Fight Noise With Prism Active RF Filter
The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios – and functioning despite noise from other vendors’ radios (unlike GPS synchronisation) – airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy.

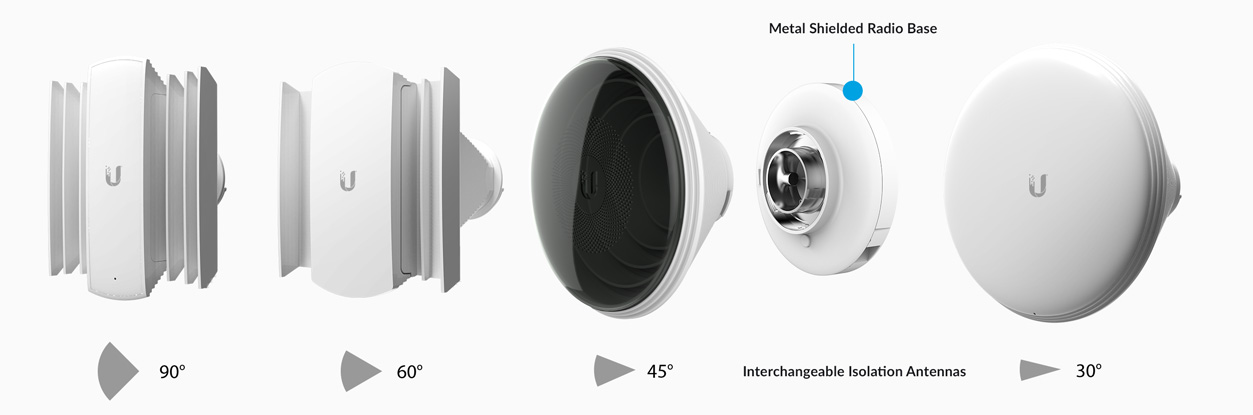

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

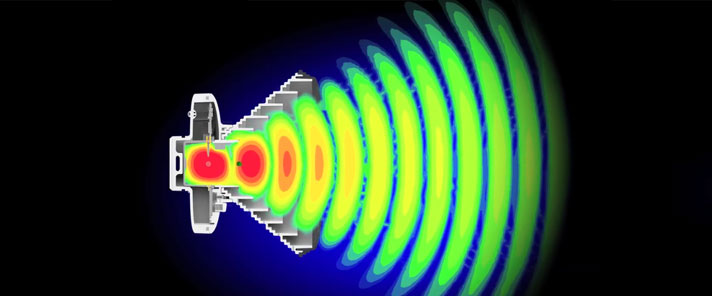

Beam Performance Perfected
The PrismStation™ can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

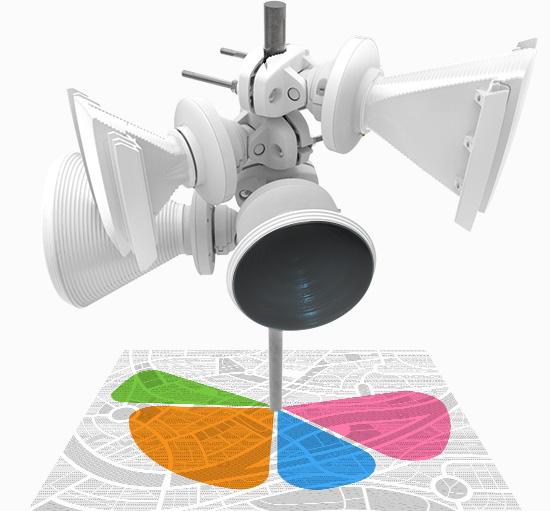

Enhanced Co-Location
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

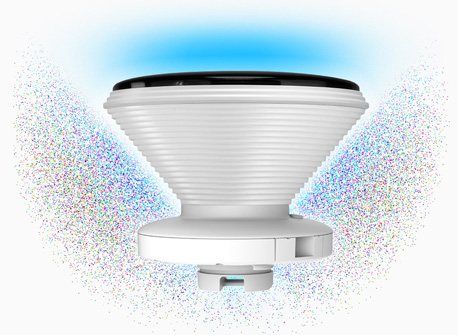

Improved Noise Immunity
PrismStation™ AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

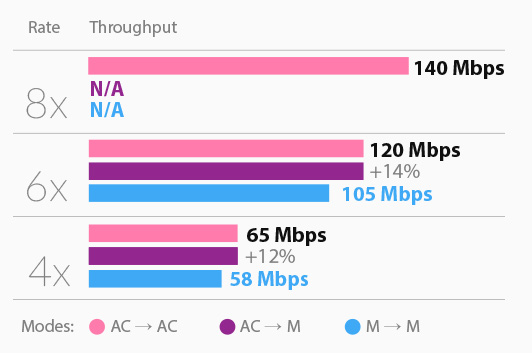

High MAC Efficiency
High MAC efficiency provides ±80% PHY RATE throughput.
Management Wi-Fi Radio
ThePrismStation™ AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios – and functioning despite noise from other vendors’ radios (unlike GPS synchronisation) – airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy.
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStation™ also gets maximum gain out of the smallest footprint.
The PrismStation™ can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.
PrismStation™ AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
High MAC efficiency provides ±80% PHY RATE throughput.
The PrismStation™ AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
