Ubiquiti EP-24V-72W EdgePower 24V Power Supply with UPS and PoE

Protect your WISP site against power loss with the EdgePower™, a convenient UPS device with dual PoE output ports.

Versatile Design

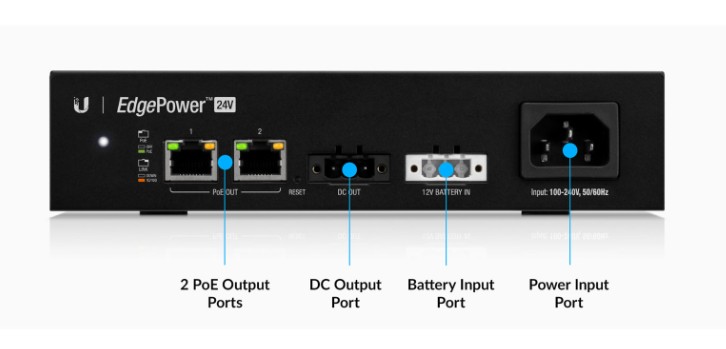

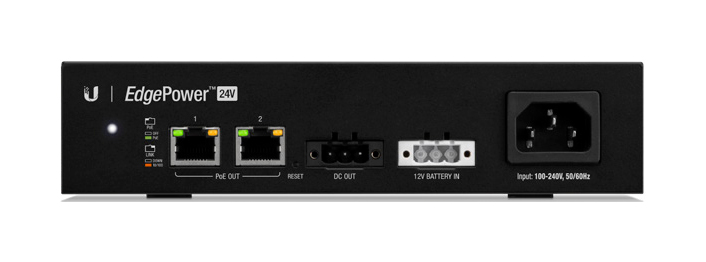

The rack-mountable EdgePower 24V features 24VDC and 2 RJ45 PoE Ports.

UPS for WISP

You can receive alerts in the event of a power outage, and the EdgePower 24V offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).

Management Flexibility

Designed for convenient management, the EdgePower allows you to configure and monitor PSU features in a graphical user interface. You can also use UNMS (Ubiquiti® Network Management System) for remote management, and SNMP is available to monitor the EdgePower for issues that warrant attention.

Specifications

• Power
• Input operation voltage (min): 100 V
• Input operation voltage (max): 240 V
• Input frequency: 50/60 Hz
• Ports and Interfaces
• Cabling technology: 10/100Base-T
• AC outlets quantity: 1 AC outlet(s)
• Ethernet LAN (RJ-45) ports: 2
• Design
• Form factor: Compact
• LED indicators: Activity, Link, PoE
• Product colour: Black
• Operational Conditions
• Operating temperature (T-T): 0 - 40 °C
• Operating relative humidity (H-H): 10 - 90%
• Weight & Dimensions
• Weight: 650 g
• Width: 192 mm
• Height: 43.7 mm
• Depth: 115 mm
