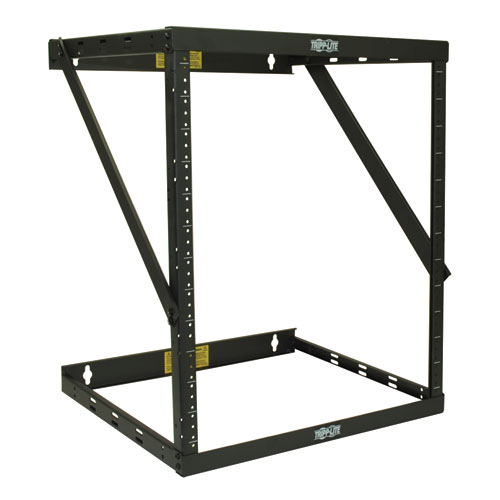

Tripp Lite SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame

The SRWO12UHD SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 200 pounds.

The open frame design allows unrestricted access for installing, configuring and servicing equipment and cabling. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.

• Perfect for network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required
• Stores and organizes EIA-standard 19 in. rack equipment compatible with 2-post mounting in 12U of space
• Maximum load capacity of 200 lb.
• Allows easy access for installing, configuring and servicing equipment and cabling
• Wall-mounting holes spaced 16 in. apart for standard wall stud placement

• Vertical mounting rails accommodate equipment up to 18 in. deep, such as network switches and patch panels
• Rails support threaded-hole equipment mounting
• Rack spaces numbered for easy reference
• Includes assembly and equipment-mounting hardware

• (24) 12-24 equipment mounting screws
• (8) M5 button-head cap screws
• (8) M6 x 12 Phillips-head screws

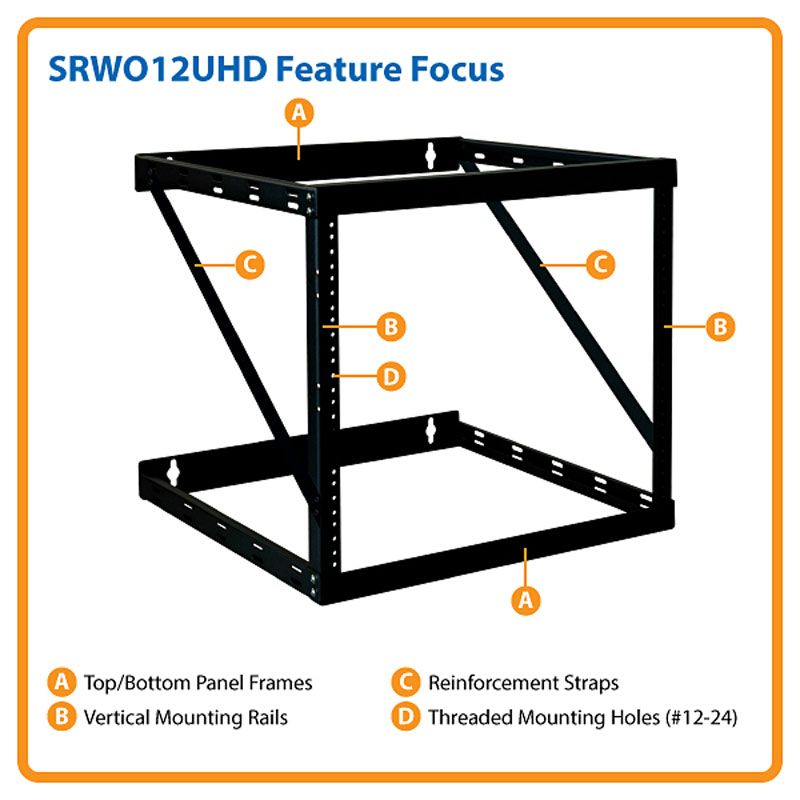

• (2) Support straps

• (2) Vertical mounting rails
• (2) Top/bottom panel frames
• 3 mm hex key
• Owner’s manual
