TP-Link VIGI NVR4032H VIGI 32 Channel Network Video Recorder

The VIGI NVR4032H is a high-performance 32-channel Network Video Recorder with versatile features, including H.265+ compression, dual Ethernet ports, and seamless compatibility with VIGI IP Cameras and ONVIF-supported devices, ideal for robust surveillance solutions.

Features

• 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
• 1 HDMI and 1 VGA Interface: Supports independent video output.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
• Mass Storage: Supports 4× SATA, up to 10 TB each.
• 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance, and load balance.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Rack Mounting: Space-saving and easy installation.

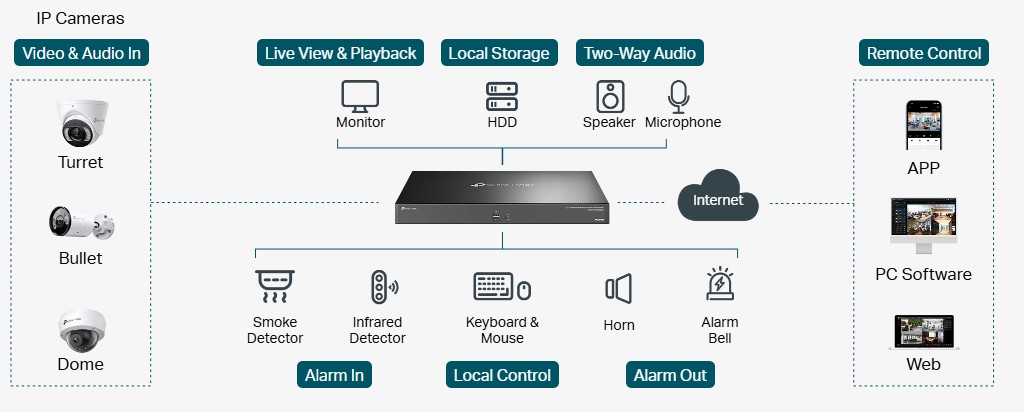

• ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

What's in the box

• VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
• Mounting Brackets, Screws and Rubber Feet

Specifications

• Protocol: UPnP (Plug and Play), NTP (Network Timing)
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 320 Mbps
• Dimensions: 440 × 330 × 44 mm
• External Power Supply: 100-240 VAC, 50 to 60HZ, 1.5A
• Power Consumption: 5 W (Without Disk), 48 W (With Disk)
• Interfaces: Network Interface: 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface; Audio Interface: 1, Audio In; 1, Audio Out; Alarm In/Out: 16/4; Serial Interface: 1, RS232
• Storage/HardDisk: SATA: 4 SATA Interfaces; Capacity: Up to 10 TB Capacity for Each HDD
• Video Input: IP Video Input: 32-Channel
• Outputs: Video Output Mode: HDMI/VGA Independent Output; HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
